TIMKEN L305649 TAPERED ROLLER BEARING CONE
Quick Overview
Manufactured By: TIMKEN
Manufacturer Part Number: L305649
IMS Product Code: 1954780
Packaging: Sold Individually
Description:

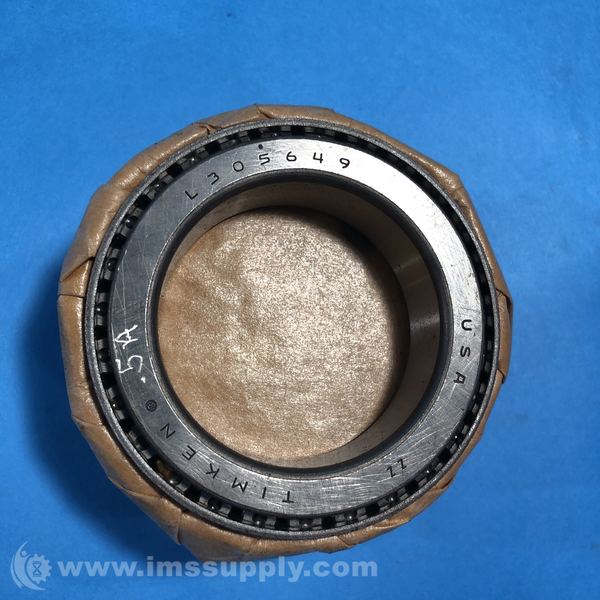

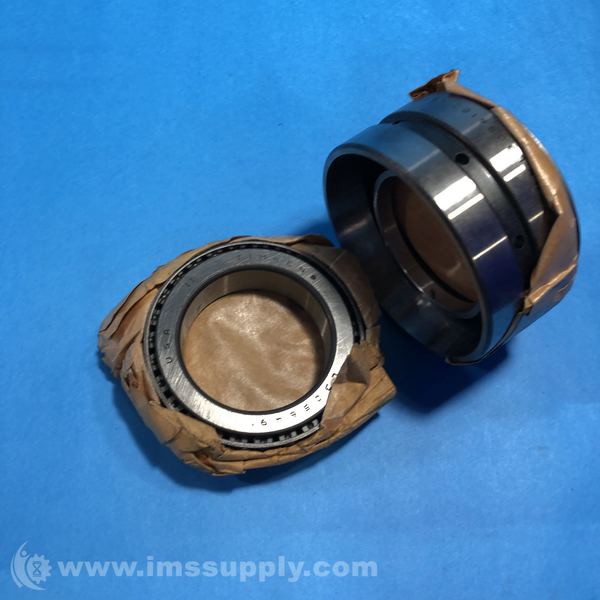

Timken L305649 Tapered Roller Bearing Cone
Tapered roller bearing cone
Specifications
- Bore (d): 2 in / 50.8 mm
- C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions): 23800 lbf / 106000 N
- Cage Location Relative to Backface (Aa): 0 in / 0 mm
- Cage Location Relative to Frontface (Ab): 0.1 in / 2.5 mm
- Ca90 - Dynamic Thrust Rating (90 million revolutions): 2160 lbf / 9590 N
- Cone Part Number: L305649
- Country of Origin: United States
- Dynamic Radial Load Rating - 1M Revs (C1): 13700 lbf / 60800 N
- Dynamic Radial Load Rating - 90M Revs (C90): 3540 lbf / 15800 N
- Dynamic Radial Load Rating 2-Row - 90M Revs (C90-2row): 6170 lbf / 27400 N
- Effective Center Location: -0.1 in / -2.5 mm
- G1 Factor: 38.8
- G2 Factor: 29.8
- Geometry Factor (Cg): 0.0841
- Inner Ring Width (B): 0.7188 in / 18.258 mm
- K Factor: 1.64
- Max Shaft Fillet Radius: 0.06 in / 1.5 mm
- Shaft Backing Shoulder Diameter - Backface (db): 2.28 in / 58 mm
- Shaft Backing Shoulder Diameter - Frontface (da): 2.2 in / 56 mm
- Static Radial Load Rating (C0): 20000 lbf / 88800 N
- Weight: 0.46lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 9 hours and 24 minutes.
