TIMKEN L814749 TAPERED ROLLER BEARING CONE
Quick Overview
Manufactured By: TIMKEN
Manufacturer Part Number: L814749
IMS Product Code: 2152957
Packaging: Sold Individually
Description:

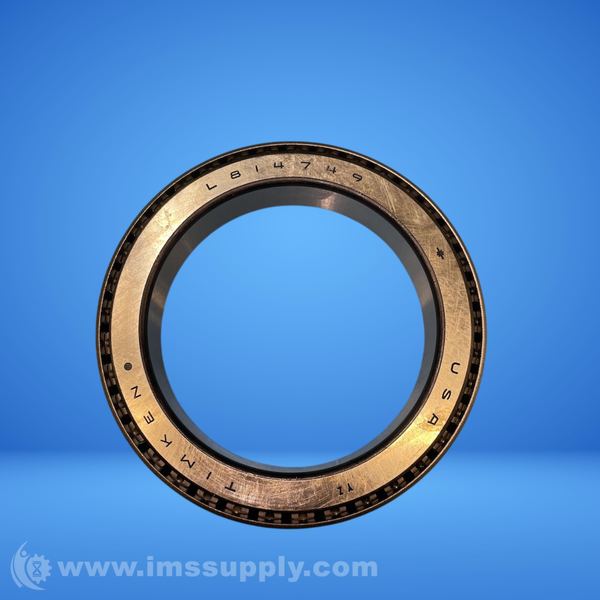

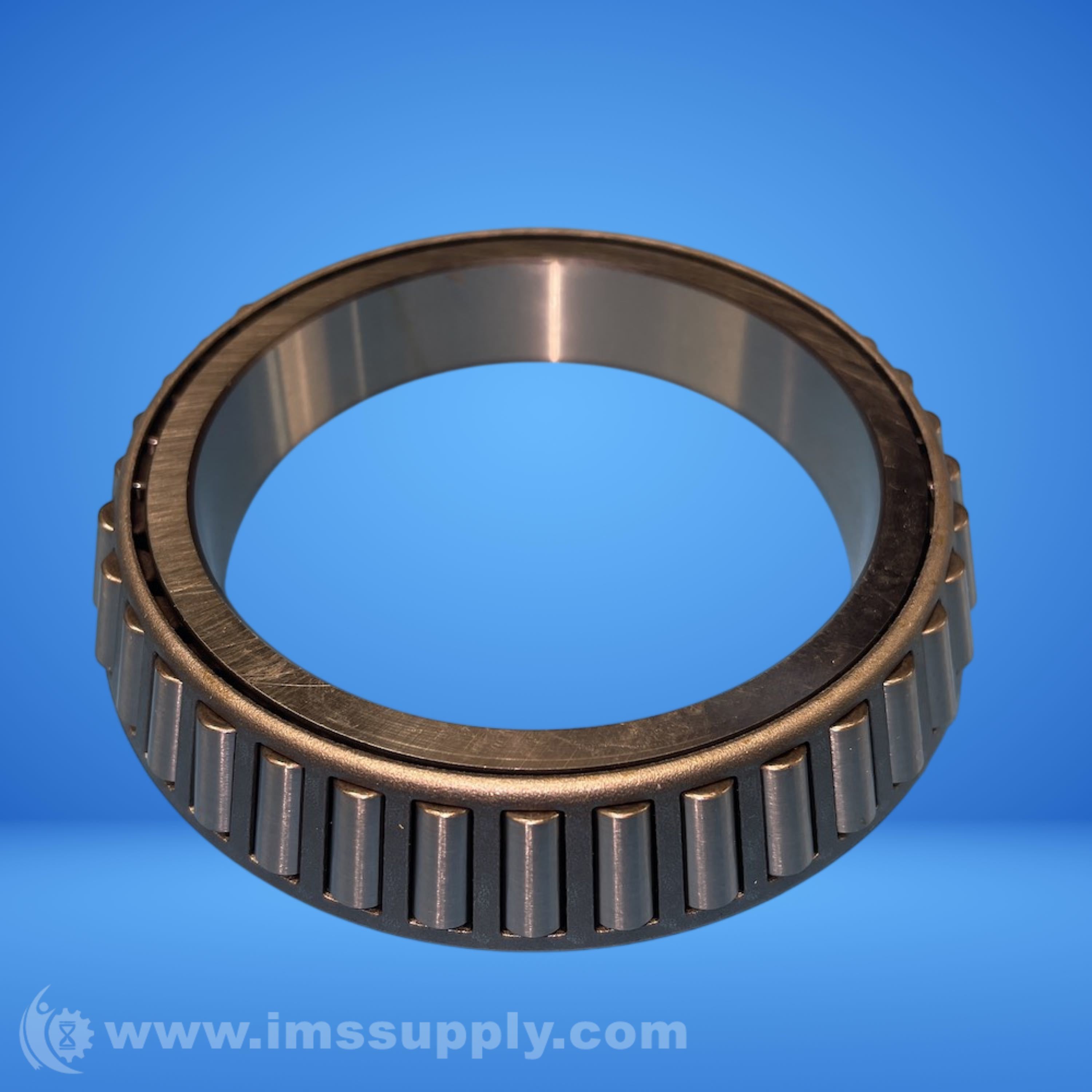

Timken L814749 Tapered Roller Bearing Cone
Tapered roller bearing cone with 3 inch bore diameter and 0.75 inch width.
Specifications
- Cage Material: Stamped Steel
- d - Bore: 3 in/76.2 mm
- D - Cup Outer Diameter: 4.3125 in/109.538 mm
- B - Cone Width: 0.7500 in/19.050 mm
- C - Cup Width: 0.5938 in/15.083 mm
- T - Bearing Width: 0.75 in/19.05 mm
- R - Cone Backface "To Clear" Radius1: 0.06 in/1.5 mm
- r - Cup Backface "To Clear" Radius2: 0.06 in/1.52 mm
- da - Cone Frontface Backing Diameter: 3.23 in/82 mm
- db - Cone Backface Backing Diameter: 3.31 in/84 mm
- Da - Cup Frontface Backing Diameter: 4.15 in/105.40 mm
- Db - Cup Backface Backing Diameter: 3.94 in/100.08 mm
- Ab - Cage-Cone Frontface Clearance: 0.08 in/2 mm
- Aa - Cage-Cone Backface Clearance: 0.02 in/0.5 mm
- a - Effective Center Location3: 0.2 in/5.1 mm
- C90 - Dynamic Radial Rating (90 million revolutions)4: 4030 lbf/17900 N
- C1 - Dynamic Radial Rating (1 million revolutions)5: 15600 lbf/69200 N
- C0 - Static Radial Rating: 27000 lbf/120000 N
- Ca90 - Dynamic Thrust Rating (90 million revolutions)6: 3470 lbf/15400 N
- K - Factor7: 1.16
- e - ISO Factor8: 0.5
- Y - ISO Factor9: 1.2
- G1 - Heat Generation Factor (Roller-Raceway): 76
- G2 - Heat Generation Factor (Rib-Roller End): 58.3
- Cg - Geometry Factor10: 0.116
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 21 minutes.
