TIMKEN LM451310CD-20000 TAPERED ROLLER BEARING CUP
Quick Overview
Manufactured By: TIMKEN
Manufacturer Part Number: LM451310CD-20000
IMS Product Code: 2145822
Packaging: Sold Individually
Description:

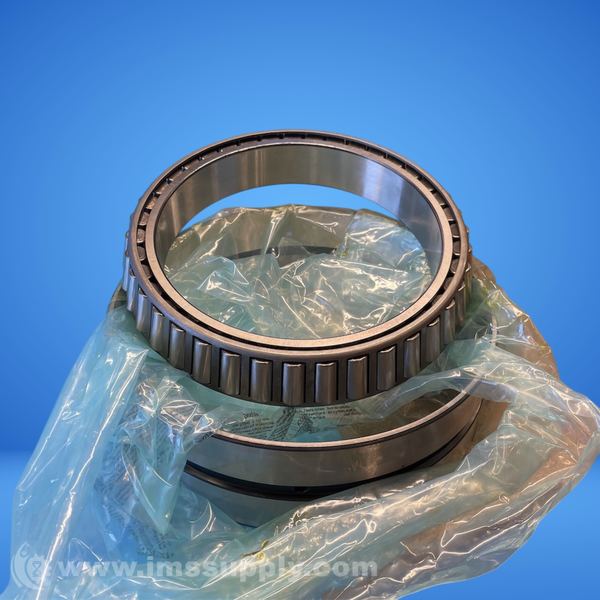

Timken LM451310CD-20000 Tapered Roller Bearing Cup
Double Cup, 14 in Outside Diameter, 4 in Width, Chrome Steel
Specifications
- Outside Diameter: 14 in
- Overall Width: 4 in
- Material: Chrome Steel
- Series: LM
- Single Or Double Cup: Double Cup
- Flange Type: Non-Flanged Cup
- Compatible Cone: LM451345, LM451349
- Abma Precision Rating: Class 2
- Lubrication Hole Type: No Hole
- Finish Coating: Uncoated
- Weight: 22.3 lbs
- Cup Width: 4 in
- Bearing Width: 5 in
- Maximum House Fillet Radius: 0.06 in
- Maximum House Shoulder Diameter: 13.52 in Frontface
- Suitable For Use With: Type TDO Double Row Tapered Roller Bearing
- od (mm): 355.6
- Width (mm): 101.6
- Weight (Kg): 10.103
- Cage Material: Steel cage
