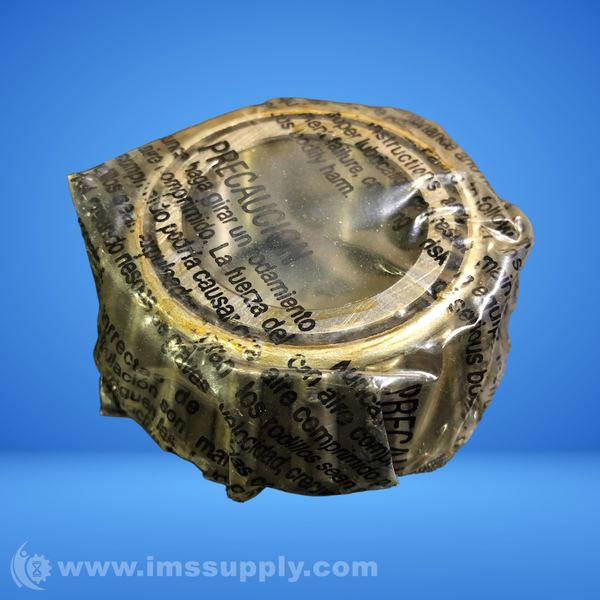

TIMKEN M86649 TAPERED ROLLER BEARING
Quick Overview
Manufactured By: TIMKEN
Manufacturer Part Number: M86649
IMS Product Code: 1923960
Packaging: Sold Individually
Description:
Timken M86649 Tapered Roller Bearing
Tapered roller bearing with cone (inner ring) assembly and cup (outer ring).
Specifications
- Cage Type: Stamped Steel
- Series: M86600
- Cone Part Number: M86649
- Design Units: Imperial
- d - Cone Bore: 1 3/16 in
- B - Cone Width: 0.8438 in
- R - Cone Backface "To Clear" Radius: 0.06 in
- da - Cone Frontface Backing Diameter: 1.5 in
- db - Cone Backface Backing Diameter: 1.73 in
- Ab - Cage-Cone Frontface Clearance: 0.07 in
- Aa - Cage-Cone Backface Clearance: 0.03 in
- a - Effective Center Location: -0.13 in
- C1 - Dynamic Radial Rating (1 million revolutions): 13500 lbf
- C0 - Static Radial Rating: 16100 lbf
- K - Factor: 1.07
- G1 - Heat Generation Factor (Roller-Raceway): 16.8
- G2 - Heat Generation Factor (Rib-Roller End): 9.36
- Cg - Geometry Factor: 0.0736
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 13 hours and 20 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 20 minutes.
