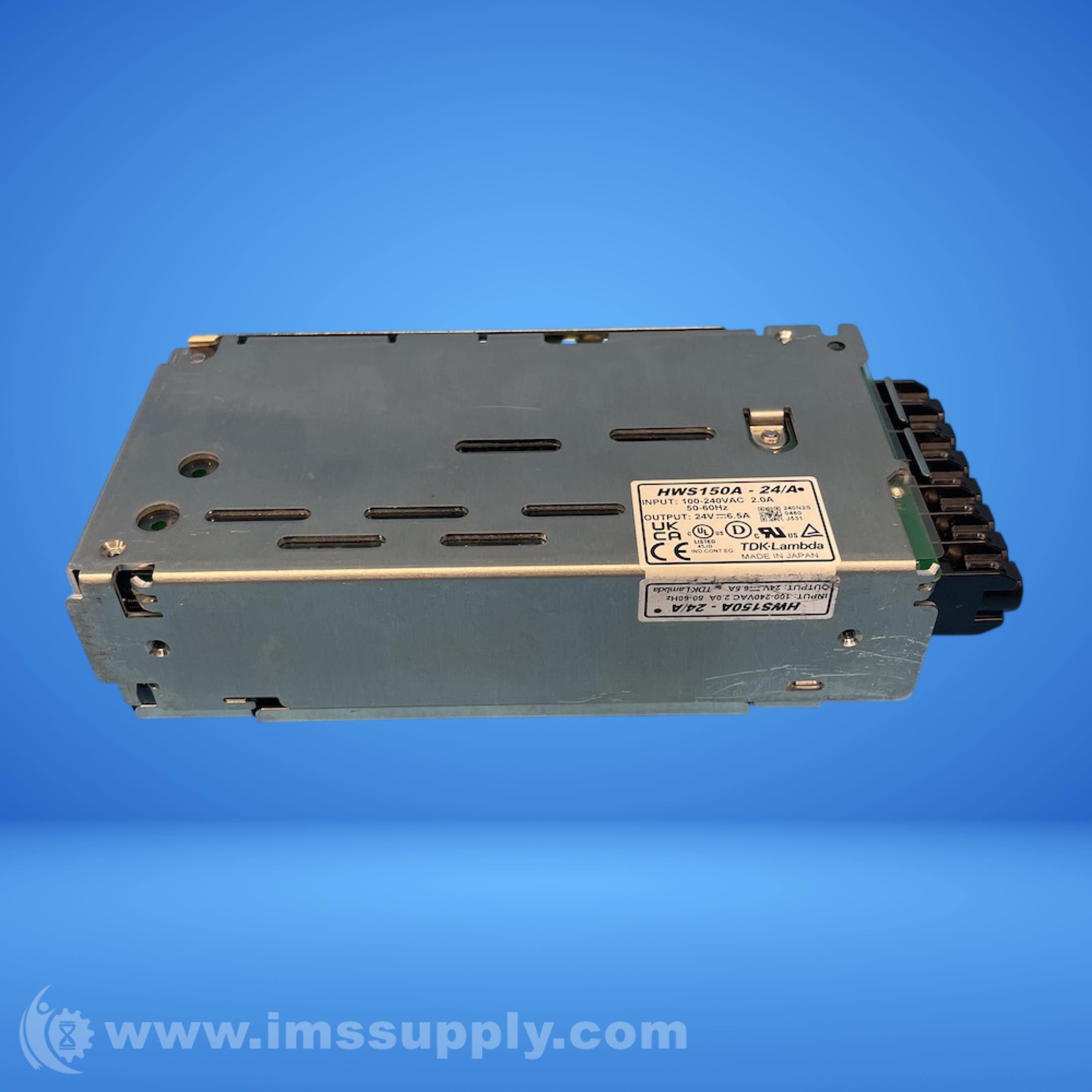

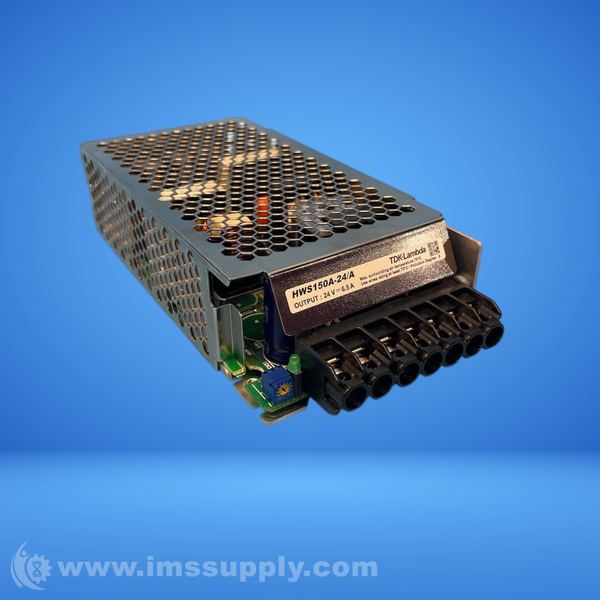

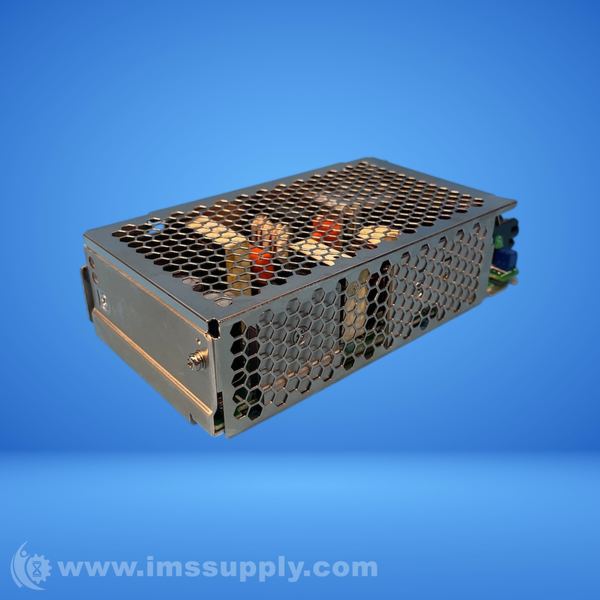

TKD LAMBDA HWS150A-24/A AC-DC POWER SUPPLY
Quick Overview
Manufactured By: TKD LAMBDA
Manufacturer Part Number: HWS150A-24/A
IMS Product Code: 2165191
Packaging: Sold Individually
Description:
TKD Lambda HWS150A-24/A AC-DC Power Supply
Single-phase enclosed AC-DC power supply
Specifications
- Input: Single-phase
- Input Voltage Range (AC): 85 to 265Vac
- Input Voltage Range (DC): 120 to 370Vdc
- Efficiency: 90% Typ.
- Rated Output Voltage (DC): 24Vdc
- Output Voltage Range (DC): 19.2 to 28.8Vdc
- Maximum Output Current: 6.5A
- Maximum Output Power: 156W
- Package Type & Size: Enclosed / Unit type
- Width: 42mm Nom. (1.65in Nom.)
- Height: 82mm Nom. (3.23in Nom.)
- Depth: 160mm Nom. (6.30in Nom.)
- Weight: 520g Typ. (1.1lbs Typ.)
- Operating Temp. Range: -10 to 70 degrees C
- Cooling: Convection
- Mount: Chassis Mount
- Isolation Voltage: 3000 Vrms
- Number of Outputs: 1
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 35 minutes.
