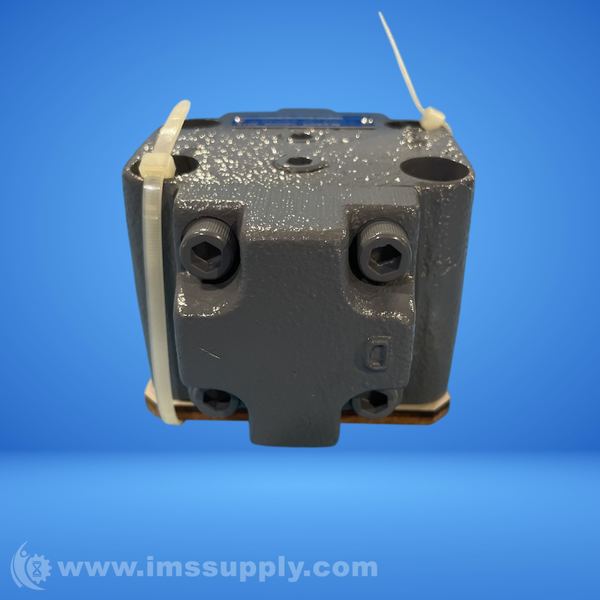

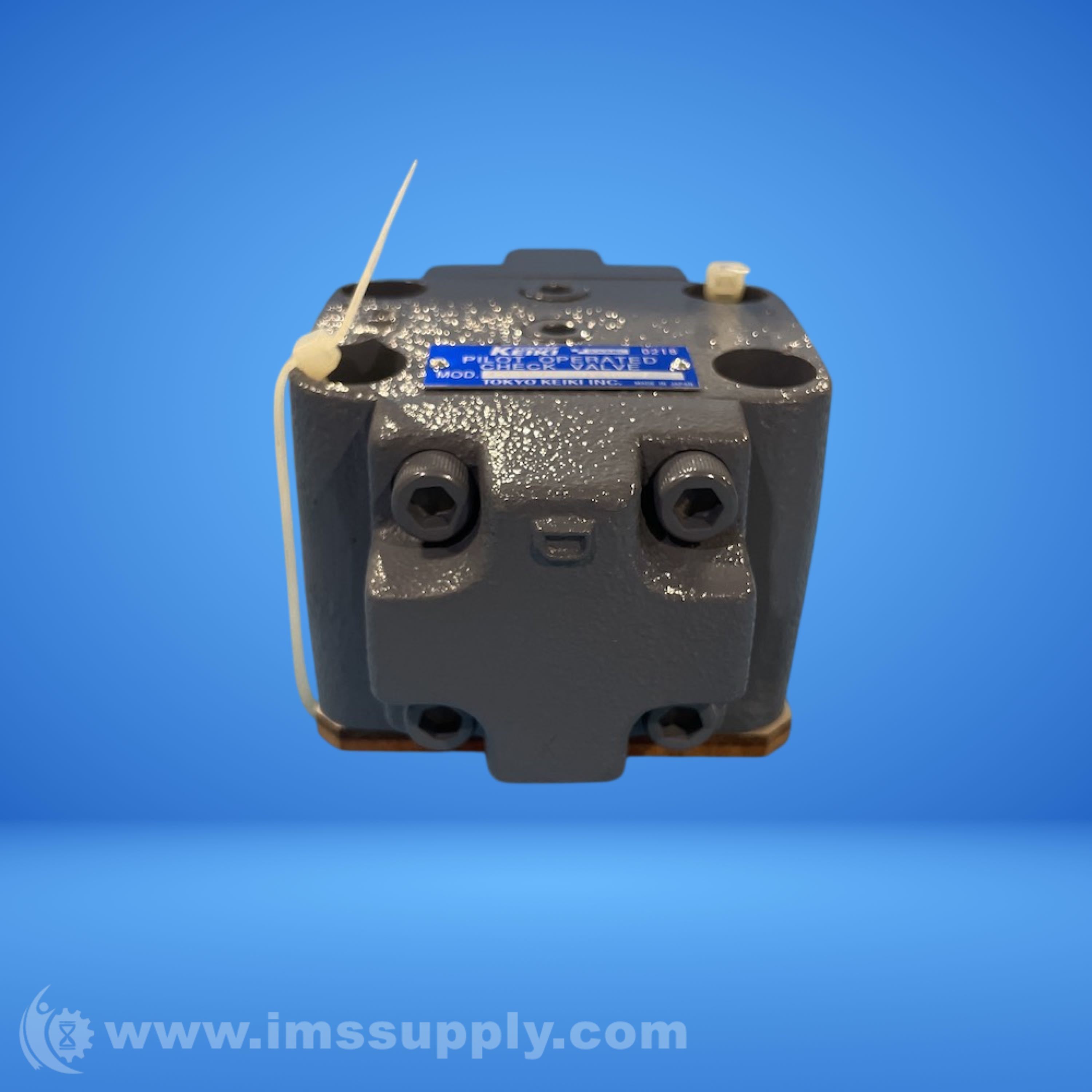

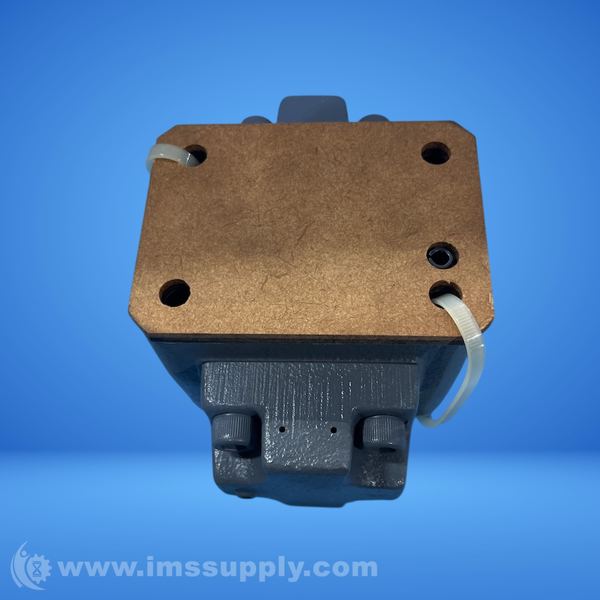

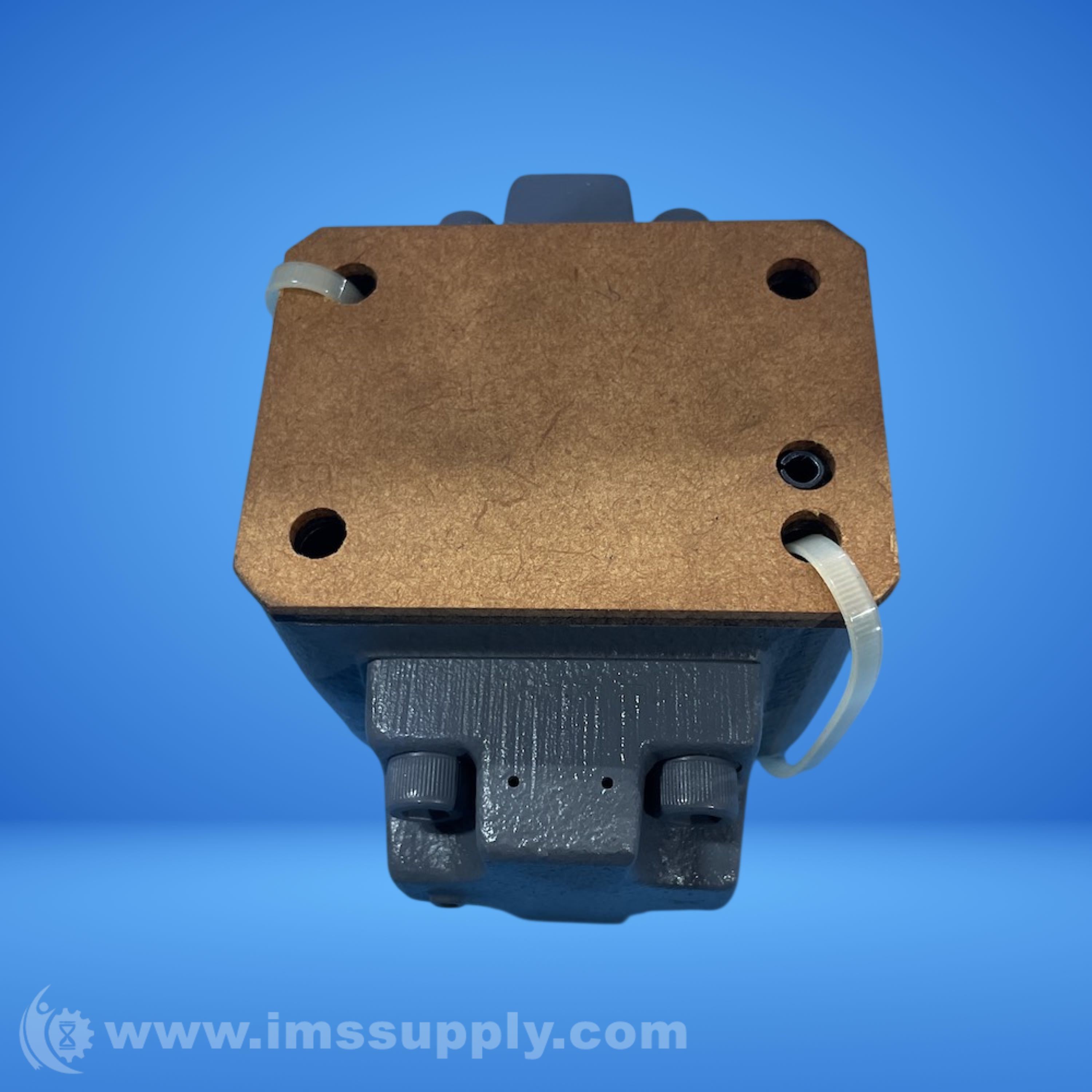

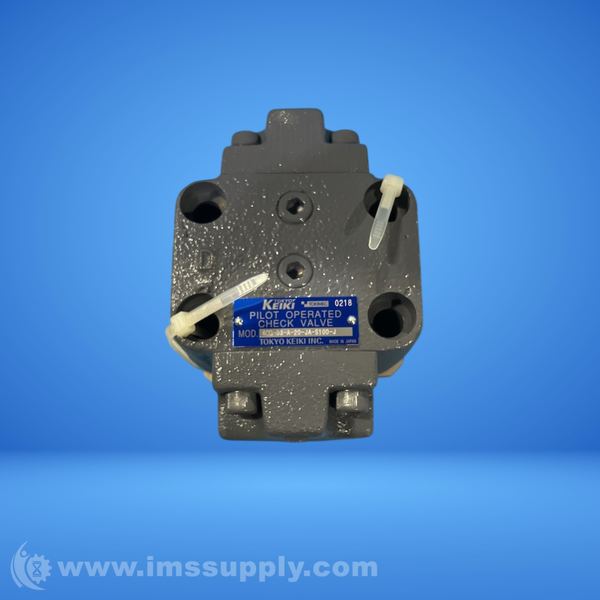

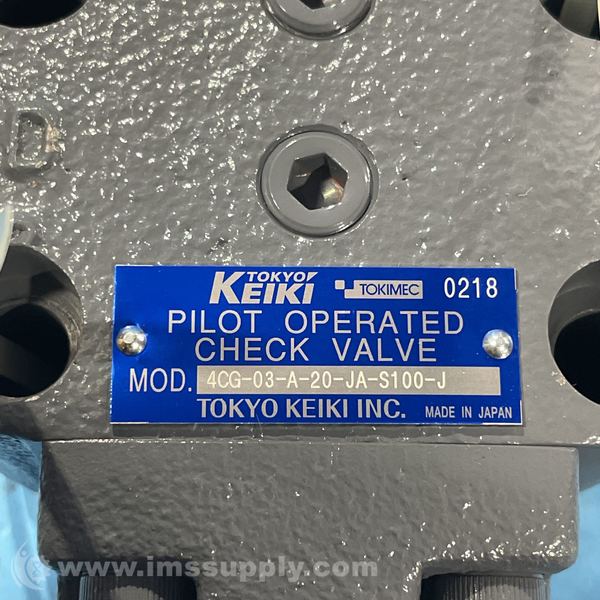

TOKYO KEIKI 4CG-03-A-20-JA-S100-J PILOT OPERATED CHECK VALVE
Quick Overview
Manufactured By: TOKYO KEIKI
Manufacturer Part Number: 4CG-03-A-20-JA-S100-J
IMS Product Code: 2154909
Packaging: Sold Individually
Description:
Tokyo Keiki 4CG-03-A-20-JA-S100-J Pilot Operated Check Valve
Pilot operated check valve offering precise flow control in hydraulic systems with free flow in one direction and reverse flow with external pilot pressure.
Specifications
- Hydraulic Fluid Compatibility: Mineral oil-based fluids, water-glycol-based fluids, F3 model for phosphate ester
- Mounting Type: Gasket mounting (4CG)
- Sizes Available: 03, 06, 10
- Decompression Function: Standard or decompression (D) type
- Cracking Pressure Options: A: 0.21 MPa, C: 0.53 MPa, F: 1.05 MPa
- Drain Types: Internal (standard) or External (GE5)
- Control Codes: s100, omitted, or s2
- Maximum Working Pressure: 21 MPa
- Rated Flow: 4CG-03: 50 L/min
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 11 minutes.
