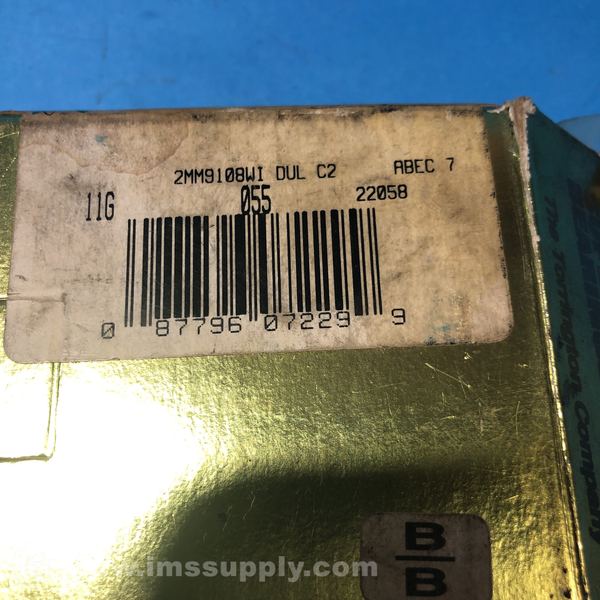

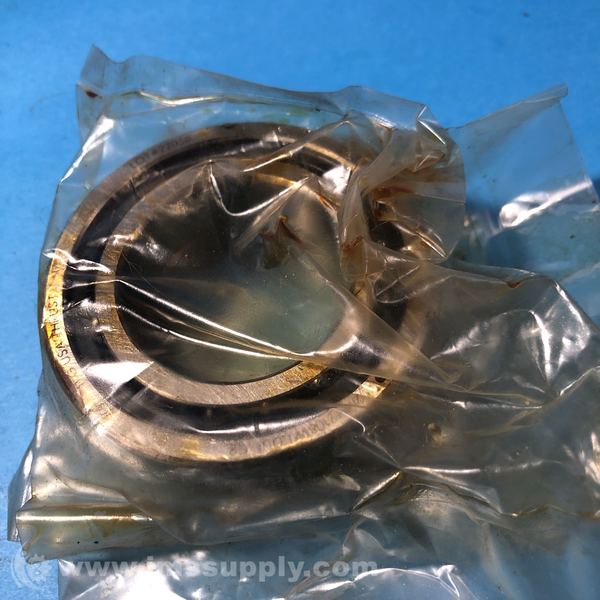

TORRINGTON 2MM9108WI DUL ANGULAR CONTACT BALL BEARING
Quick Overview
Manufactured By: TORRINGTON
Manufacturer Part Number: 2MM9108WI DUL
IMS Product Code: 1923854
Packaging: Sold Individually
Description:
Torrington 2MM9108WI DUL Angular Contact Ball Bearing
Spindle & Precision Machine Tool Angular Contact Bearing - 40 mm Bore, 68 mm OD, 15 mm Width, 15 ° Contact, Open
Specifications
- Bore Type: Straight
- Bore Diameter: 40 mm
- Outside Diameter: 68 mm
- Overall Width: 15 mm
- Closure Type: Open
- Contact Angle: 15 °
- Precision Rating: ABEC 7 (ISO Class 4)
- Radial Dynamic Load Capacity: 4920 lbf
- Radial Static Load Capacity: 3360 lbf
- Max Rpm: 19900 rpm
- Cage Material: Phenolic Resin
- Finish Coating: Uncoated
- Fillet Radius: 1 mm
- Series: 2MM9100WI
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 6 minutes.
