TSUBAKI PL025X043KE KEYLESS LOCKING DEVICE
Quick Overview
Manufactured By: TSUBAKI
Manufacturer Part Number: PL025X043KE
IMS Product Code: 2018771
Packaging: Sold Individually
Description:

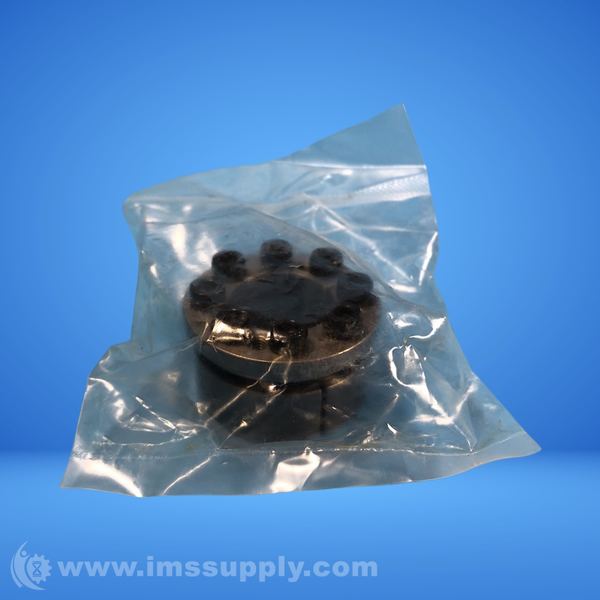

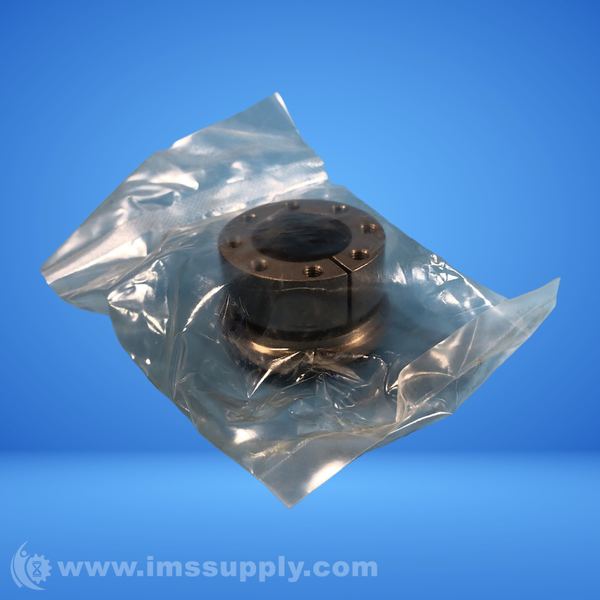

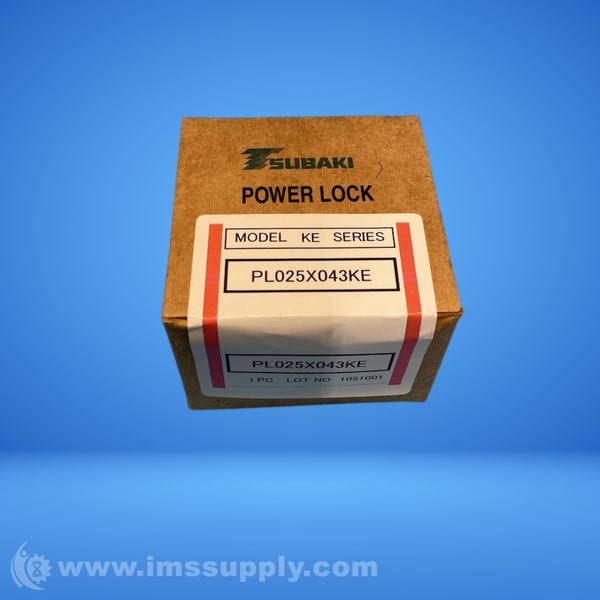

Tsubaki PL025X043KE Keyless Locking Device
Tsubaki Power-Lock KE Series keyless locking device for securing small shaft diameters. Metric series bushing for 'A' plate sprockets and narrow gears. Electroless nickel-plated finish.
Specifications
- Series: KE Metric
- Bore Diameter: 0.984 in
- Outside Diameter: 1.693 in
- Overall Length: 1.181 in
- Screw Size: M5 x 18
- Transmissible Torque: 253 ft-lb
- Transmissible Thrust: 5822 lb
- Shaft Contact Pressure: 31329 psi
- Hub Contact Pressure: 18130 psi
- Temperature Rating: -22 to 392 deg F
- Finish: Electroless Nickel-Plated
