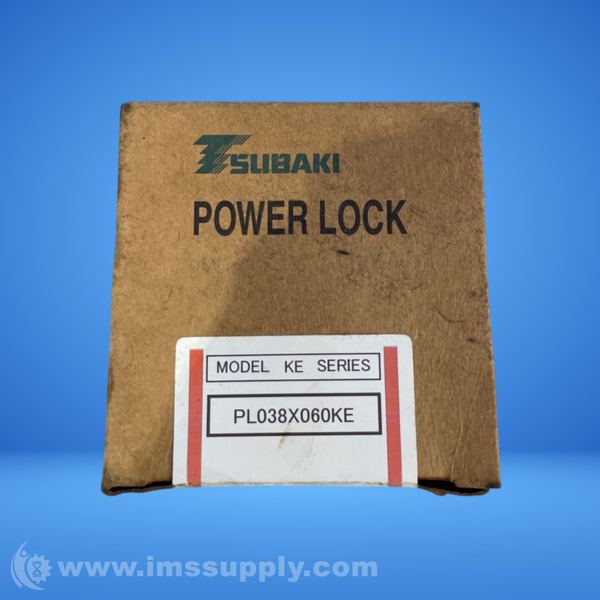

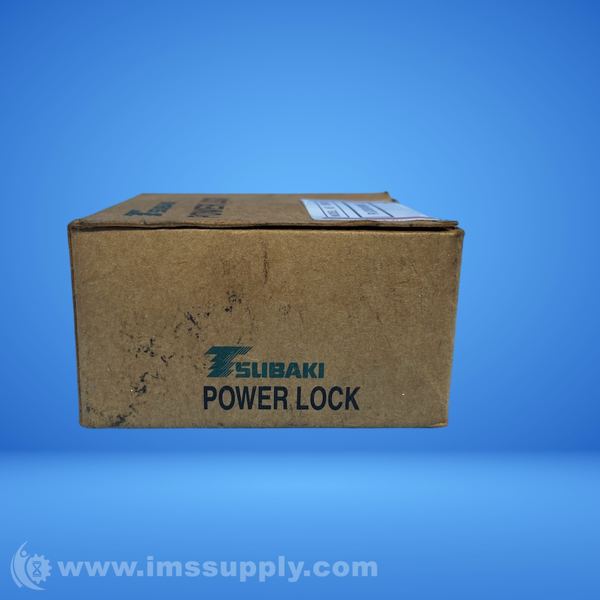

TSUBAKI PL038X060KE SHAFT LOCKING DEVICE
Quick Overview
Manufactured By: TSUBAKI
Manufacturer Part Number: PL038X060KE
IMS Product Code: 2168107
Packaging: Sold Individually
Description:
Tsubaki PL038X060KE Shaft Locking Device
Tsubaki POWER-LOCK KE series shaft locking device, ideal for A-type sprockets and narrow gears, strengthens the shaft without requiring pre-centering.
Specifications
- d - Shaft O.D.: 1.496 in
- t1 - Shaft Dia. Tolerance: -0.0015 in +0
- D - Hub Counter I.D.: 2.362 in
- t2 - Hub Counter ID Tolerance: +0.0018 in -0
- D1 - O.D. of KE: 2.559 in
- Lt: 1.496 in
- L: 1.260 in
- L2: 0.984 in
- l: 0.748 in
- Transmissible Torque: 679 ft�lb
- Transmissible Thrust: 10296 lb
- P - Shaft Contact Pressure: 28718 psi
- P1 - Hub Bore Contact Pressure: 18130 psi
- Qty. Locking Bolts: 10
- Size Locking Bolts: M6 x 22
- Tightening Torque: 12.500 ft�lb
- Weight: 3.100 lb
- Inner diameter (mm): 38
- Outer diameter (mm): 60
- Length (mm): 29
- Width across flats (mm): 14
- Operating temperature range: -30 ~ + 200 degrees C
- axial force (kN): 61.7
- Transmitted Torque (N/m): 1750
- Country of origin: Japan
- Product Size: Metric
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 12 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 12 minutes.
