TSUBAKI TK095 CHAIN
Quick Overview
Manufactured By: TSUBAKI
Manufacturer Part Number: TK095
IMS Product Code: 2172495
Variation: Unspecified
Unspecified
No. of Links: 41
Packaging: No. of Links 27
No. of Links 20
No. of Links 27
Description:

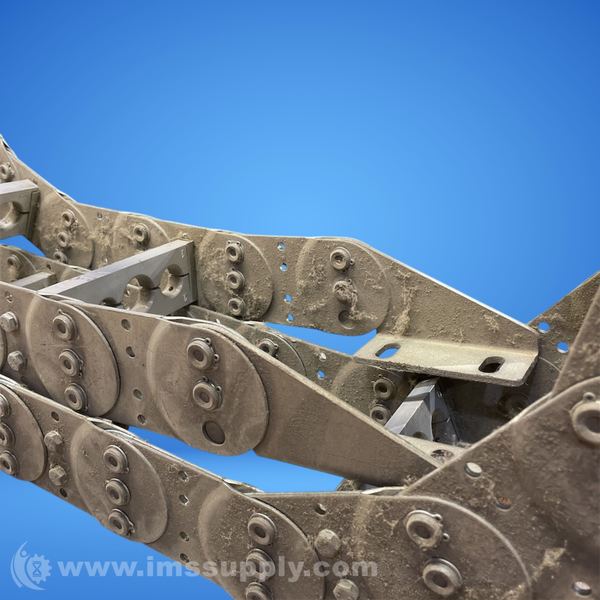

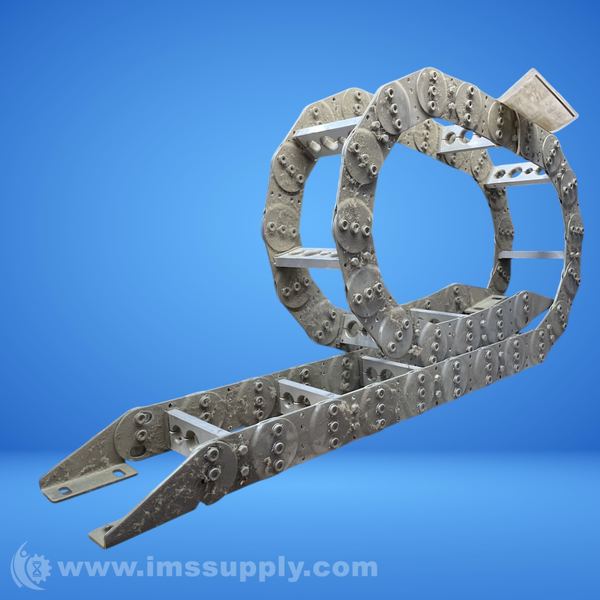

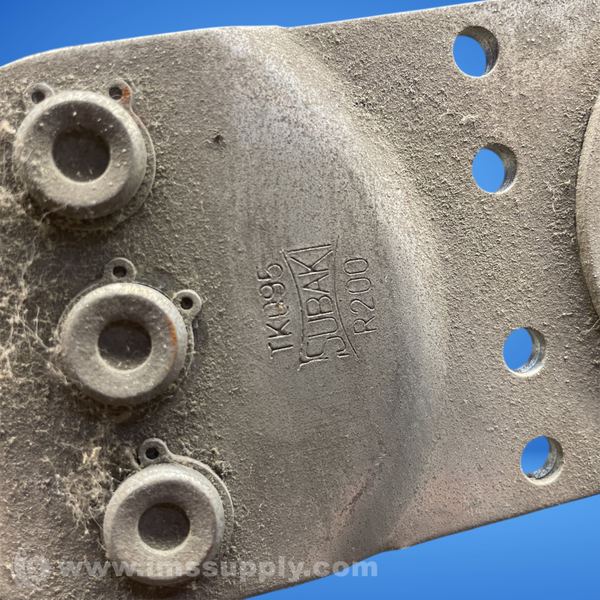

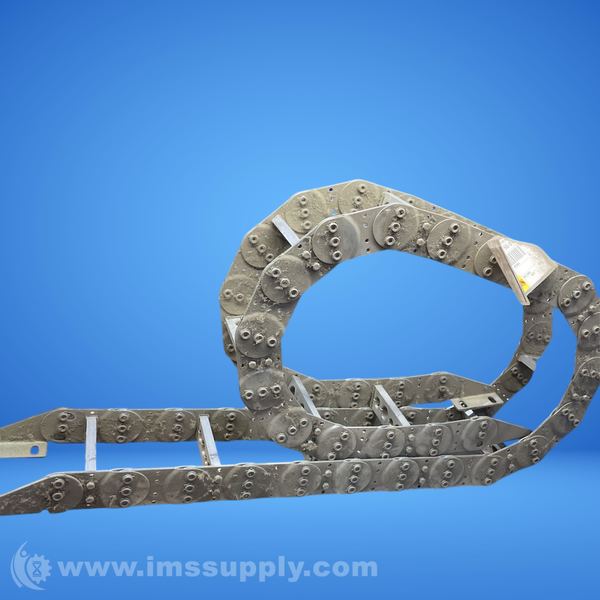

Tsubaki TK095 Chain
Industrial chain product
Specifications
- R - Minimum Bending Radius: 4.920 in
- B - Minimum Supporter Width: 3.150 in
- d: 0.980 in
- G: 8.070 in
- M: 5.510 in
- N: 4.130 in
- L: 1.770 in
- F: 1.380 in
- X: 1.440 in
- U: B+1.77 in
- V: B+4.53 in
- W: B+6.02 in
- Y: 2R+2.76 in
- Z: B+1.57 in
- D - Bolt Size: M0.47 in
