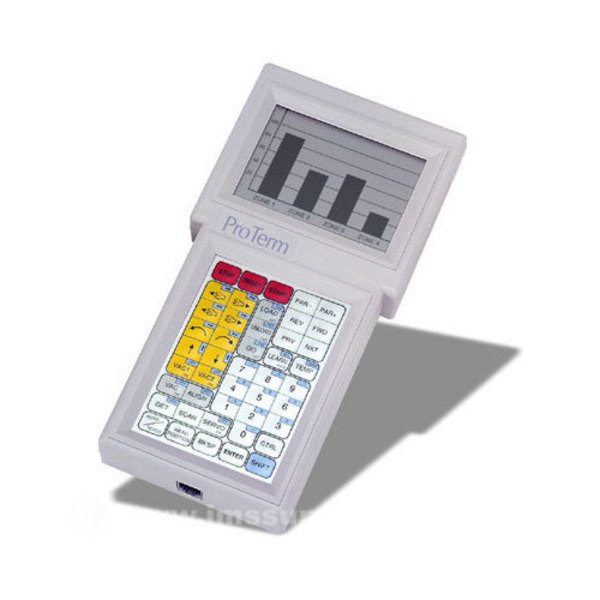

TWO TECHNOLOGIES PTNEL30R2-1 PROTERM SERIES ASCII TERMINAL
Starting At: $633.00
Quick Overview
Manufactured By: TWO TECHNOLOGIES
Manufacturer Part Number: PTNEL30R2-1
IMS Product Code: 1790974
Packaging: Sold Individually
Description:
Two Technologies PTNEL30R2-1 ProTerm Series ASCII Terminal, Backlit Display, 30 Key Membrane Keypad, RS-232, 5 VDC Regulated +/- 5%, Black
The ProTerm is a line of ASCII terminals for use with computers, properly equipped instruments and industrial machinery.
Custom configurations and special options available, including: Custom Default Settings, Displays, Keypad Graphics, I/O Interface, Firmware, Case Color, Boot and Logo Tag.
Three (3) year warranty included. Ask us about e-stop options!
Display
- 8 Line x 24 Characters
- 16 Line x 32 Character
- 192 x 128 Pixel Liquid Crystal Graphical Display
- Supertwist Display (Standard)
- Supertwist Backlit
- Extended Temperature Supertwist Backlit FSTN
Keys & Switches
- Membrane 30-Key
- Standard or Custom Layout
- Backlit (Option)
- Phosphorescent (Option)
- Backlit Phosphorescent (Option)
- E-Stop (Option)
- LED Indicators
Power
- 5 VDC Regulated +/- 5%
Interface
- RS-232
- Data Rates: 300 - 19,200 and 57,600 bps
Environment
- Storage Temp: - 20° to +70°C
- Operating Temp: 0° to +50°C
- Extended Temp: -20°C to +70°C
- Humidity 5-95% (Non-Condensing)
User Selectable Options
- Baud
- Data Bits
- Parity
- Stop Bits
- Display PE
- Repeat
- Key Click
- KNP Function
- Cursor
- Cursor Blink
- XON/XOFF
- Handshake
- Echo
- Escape Mode
- CR/LF Mode
- Self-Test
- Shift Lock
- Viewing Angle
- Break Commands
- Backlight
- Scroll on Last Character
Custom Options
- Default settings
- Displays
- Keypad graphics
- I/O interface
- Firmware
- Case Color
- Logo Tag
Certifications
- FCC-Part 15 Subpart B Class A
- CENELEC EMI Standards- EN55022:1998 (CISPR22, Class A),
- EN55011 (CISPR11, Class A)
- CENELEC EMC Standards- EN50082-1:1997 General Immunity Part 1,
- EN55024:98 (CISPR24:1997)
- CENELEC SAFETY Standard EN60950
Features
- Large Display - 8 rows x 24 Characters or 16 Rows x 32 Characters (Menu or Host- Selectable) with Graphics Capabilities
- Optional E-Stop
- ANSI 3.64 (VT-100) Compatibility
- Keys Programmable as Characters or Strings
- Advanced Control Mode (ACM)
- Programmable Display Characters
- Menu or Host-Driven User Parameter Selection
- Up to 57,600 bps Communications (9,600 bps Without Handshaking)
- Height: 8.25 inches (209.6 mm)
- Width: 4.10 inches (104.1 mm)
- Depth: 1.15 inches (29.2 mm)
- Weight: 12 ounces (340 grams)
- Case: Rugged Cycolac ABS
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 14 to 28 Days
