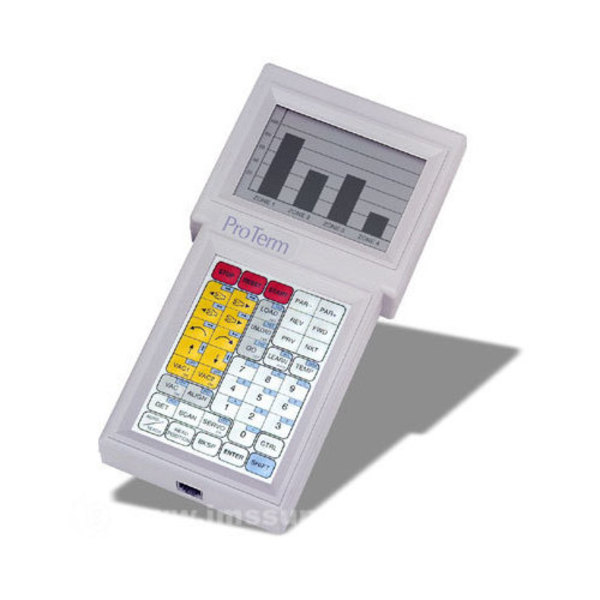

TWO TECHNOLOGIES PTNELR4-H PROTERM SERIES ASCII TERMINAL

MSRP: $760.00
Starting At: $691.50

Quick Overview

Manufactured By: TWO TECHNOLOGIES
Manufacturer Part Number: PTNELR4-H
IMS Product Code: 1791001
Packaging: Sold Individually

Description:

Two Technologies PTNELR4-H ProTerm Series ASCII Terminal, Backlit Display, 45 Key Membrane Keypad, RS-422, 7.5-28 VDC Switching Regulator, Black

The ProTerm is a line of ASCII terminals for use with computers, properly equipped instruments and industrial machinery.


Custom configurations and special options available, including: Custom Default Settings, Displays, Keypad Graphics, I/O Interface, Firmware, Case Color, Boot and Logo Tag.


Three (3) year warranty included. Ask us about e-stop options!


Display

  • 8 Line x 24 Characters
  • 16 Line x 32 Character
  • 192 x 128 Pixel Liquid Crystal Graphical Display
  • Supertwist Display (Standard)
  • Supertwist Backlit
  • Extended Temperature Supertwist Backlit FSTN

Keys & Switches

  • Membrane 45 Key
  • Standard or Custom Layout
  • Backlit (Option)
  • Phosphorescent (Option)
  • Backlit Phosphorescent (Option)
  • E-Stop (Option)
  • LED Indicators

Power

  • 7.5-28 VDC Switching Regulator

Interface

  • RS-422
  • Data Rates: 300 - 19,200 and 57,600 bps

Environment

  • Storage Temp: - 20° to +70°C
  • Operating Temp:  0° to +50°C
  • Extended Temp: -20°C to +70°C
  • Humidity 5-95% (Non-Condensing)

User Selectable Options

  • Baud
  • Data Bits
  • Parity
  • Stop Bits
  • Display PE
  • Repeat
  • Key Click
  • KNP Function
  • Cursor
  • Cursor Blink
  • XON/XOFF
  • Handshake
  • Echo
  • Escape Mode
  • CR/LF Mode
  • Self-Test
  • Shift Lock
  • Viewing Angle
  • Break Commands
  • Backlight
  • Scroll on Last Character

Custom Options

  • Default settings
  • Displays
  • Keypad graphics
  • I/O interface
  • Firmware
  • Case Color
  • Logo Tag

Certifications

  • FCC-Part 15 Subpart B Class A
  • CENELEC EMI Standards-  EN55022:1998 (CISPR22, Class A),
  • EN55011 (CISPR11, Class A)
  • CENELEC EMC Standards-  EN50082-1:1997 General Immunity Part 1,
  • EN55024:98 (CISPR24:1997)
  • CENELEC SAFETY Standard EN60950

Features

  • Large Display - 8 rows x 24 Characters or 16 Rows x 32 Characters (Menu or Host- Selectable) with Graphics Capabilities
  • Optional E-Stop
  • ANSI 3.64 (VT-100) Compatibility
  • Keys Programmable as Characters or Strings
  • Advanced Control Mode (ACM)
  • Programmable Display Characters
  • Menu or Host-Driven User Parameter Selection
  • Up to 57,600 bps Communications (9,600 bps Without Handshaking)
  • Height: 8.25 inches (209.6 mm)
  • Width: 4.10 inches (104.1 mm)
  • Depth: 1.15 inches (29.2  mm)
  • Weight: 12 ounces (340 grams)
  • Case: Rugged Cycolac ABS

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 14 to 28 Days

Let IMS Repair Yours:
Connect with IMS engineers who will repair your broken or damaged TWO TECHNOLOGIES PTNELR4-H PROTERM SERIES ASCII TERMINAL. Contact us today for details.

Repair Time Estimates Provided In Quote

IMS Supply is an authorized Two Technologies distributor.
