TYCO ELECTRONICS 1-1318119-3 6 POSITION RECEPTACLE HOUSING
Quick Overview
Manufactured By: TYCO ELECTRONICS
Manufacturer Part Number: 1-1318119-3
IMS Product Code: 1840143
Packaging: Sold Individually
Description:

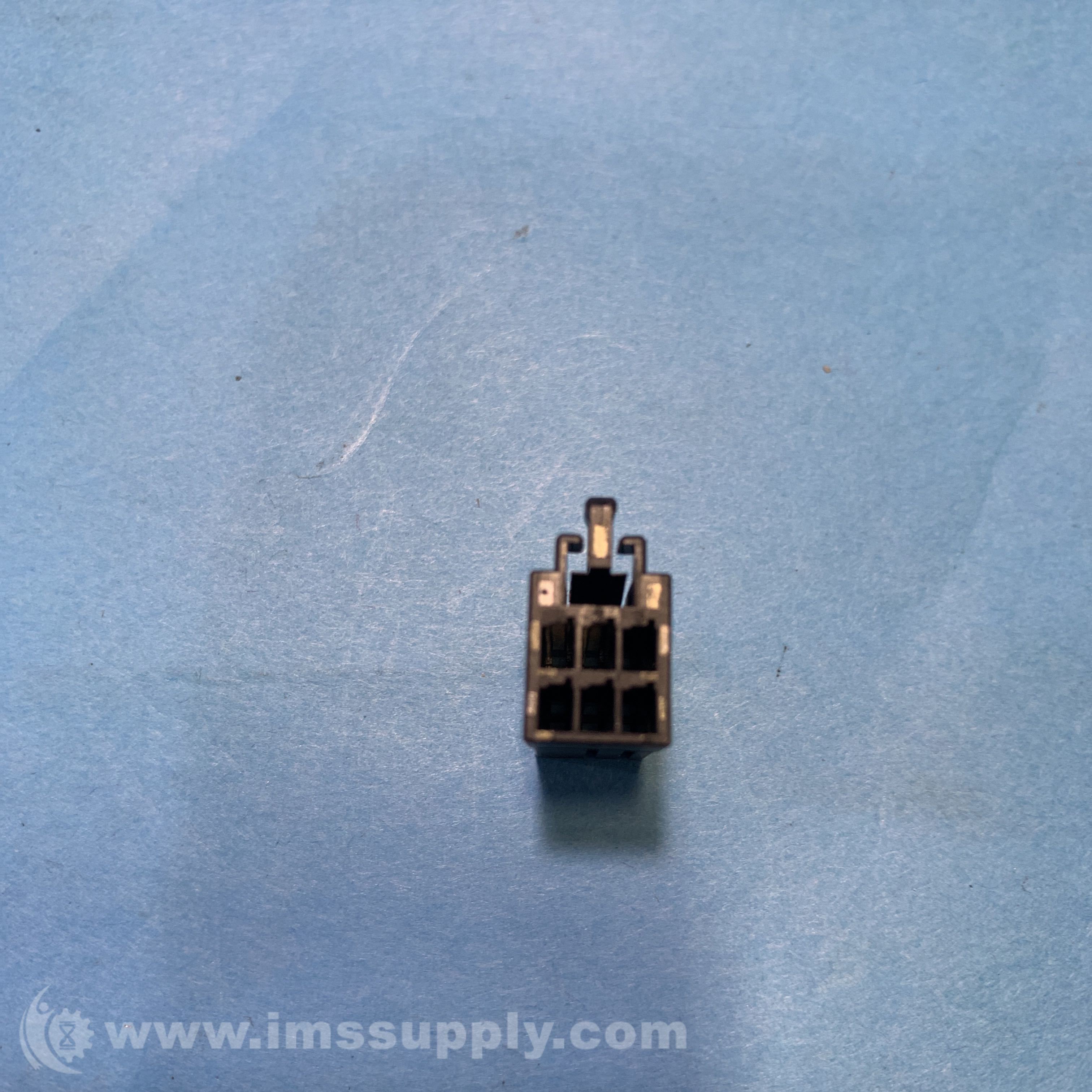

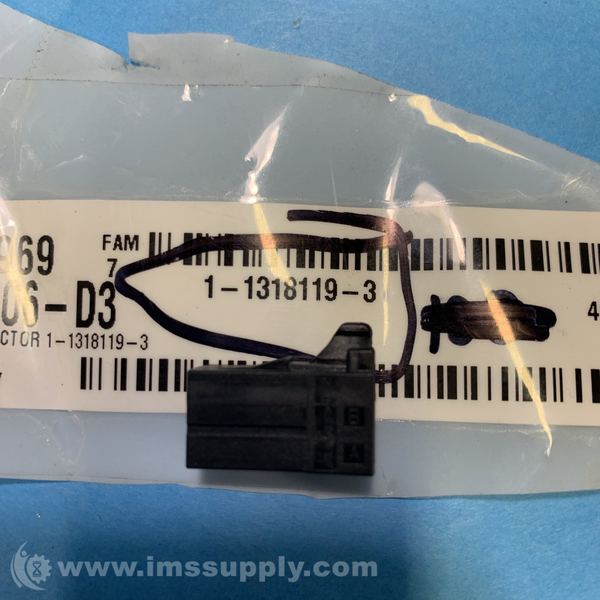

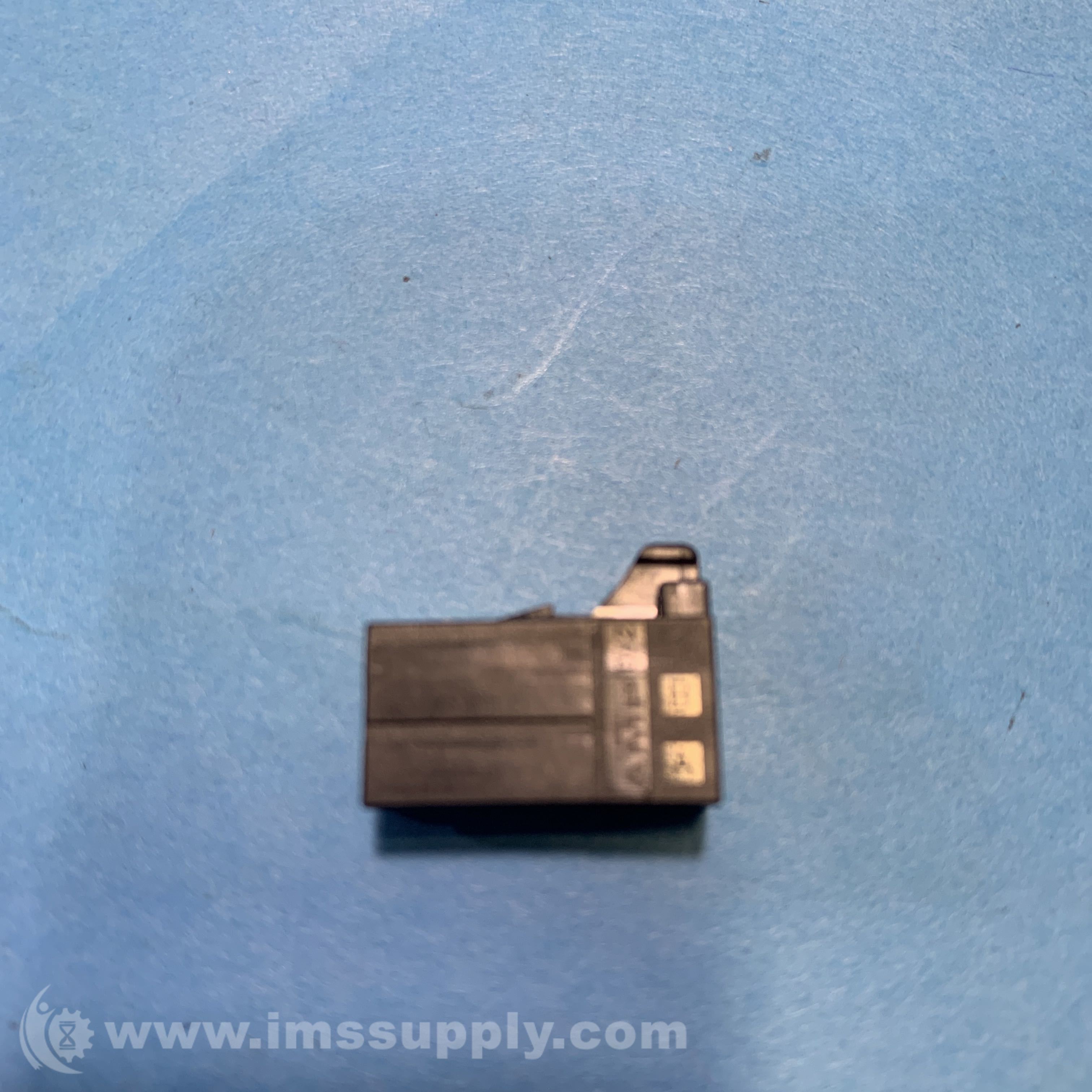

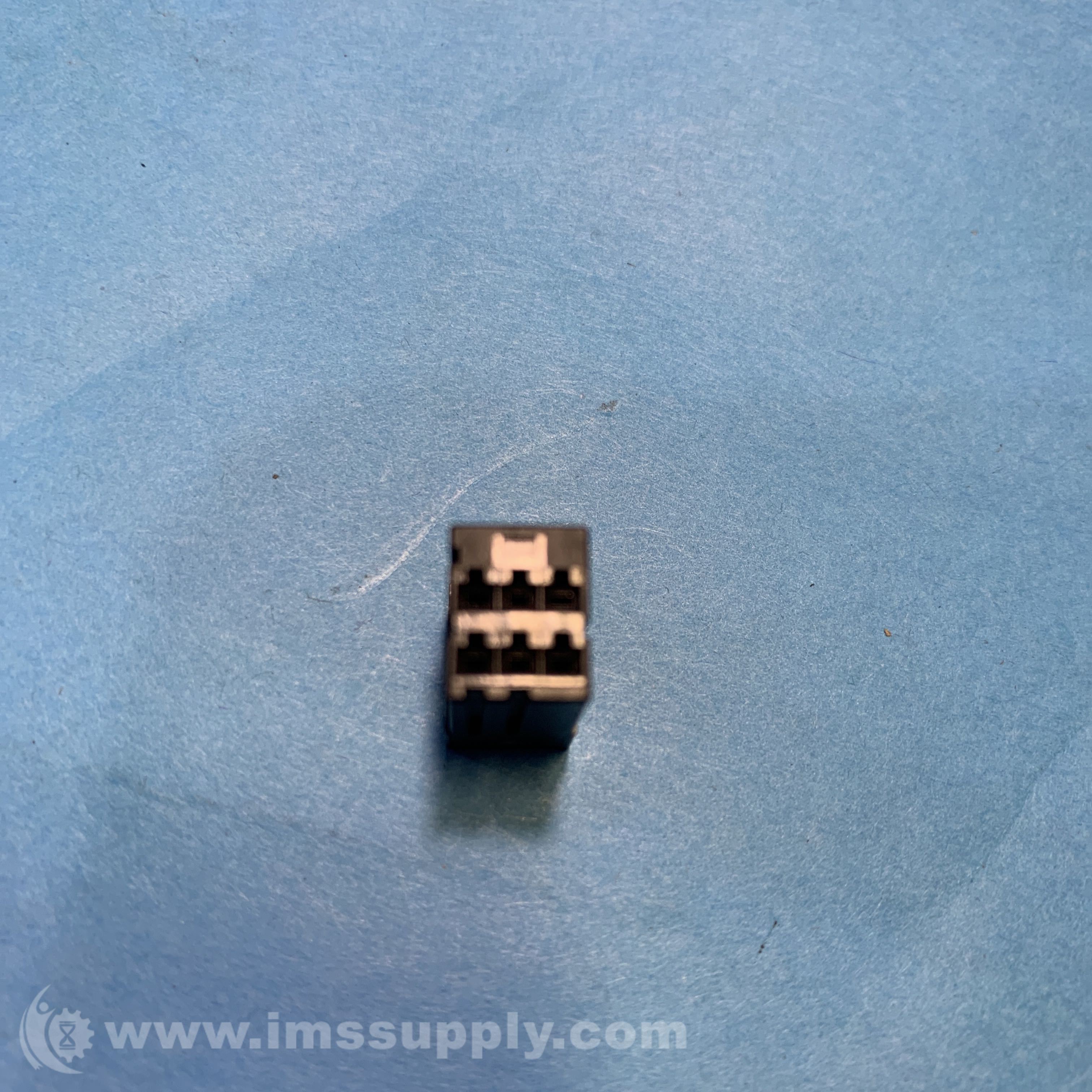

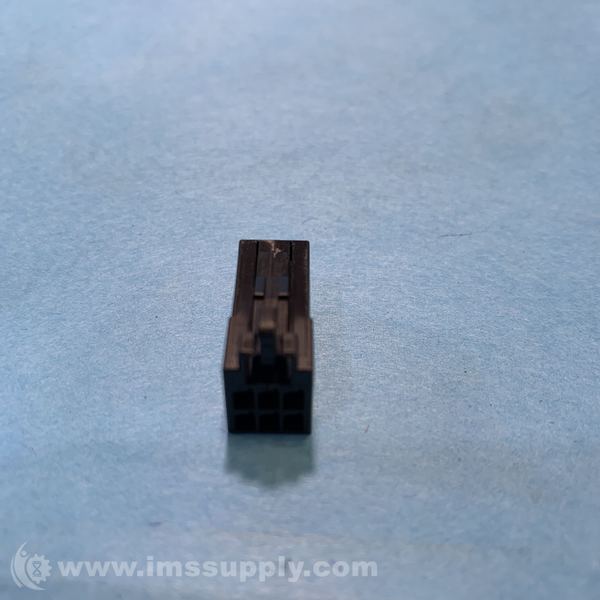

Tyco Electronics 1-1318119-3 6 Position Receptacle Housing
6-position receptacle housing for wire-to-board or wire-to-wire applications, 2.5mm pitch, crimp termination, cable mount, black thermoplastic housing.
Specifications
- Series: D-2000 Series
- Number of Positions: 6
- Number of Rows: 2
- Pitch: 2.5 mm
- Contact Type: Receptacle
- Termination Method: Crimp
- Housing Material: Thermoplastic
- UL Flammability Rating: UL 94V-0
- Operating Temperature Range: -55 - 105 degrees C
- Current Rating: 5 A max. per position
- Voltage Rating: 250 V
- Connector Mounting Type: Cable Mount
- Dimensions: 8.9 mm x 20 mm x 15.78 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 344 In Stock
