URYU UNR-F100-1900NT INLINE NUTRUNNER
Quick Overview
Manufactured By: URYU
Manufacturer Part Number: UNR-F100-1900NT
IMS Product Code: 2140078
Packaging: Sold Individually
Description:

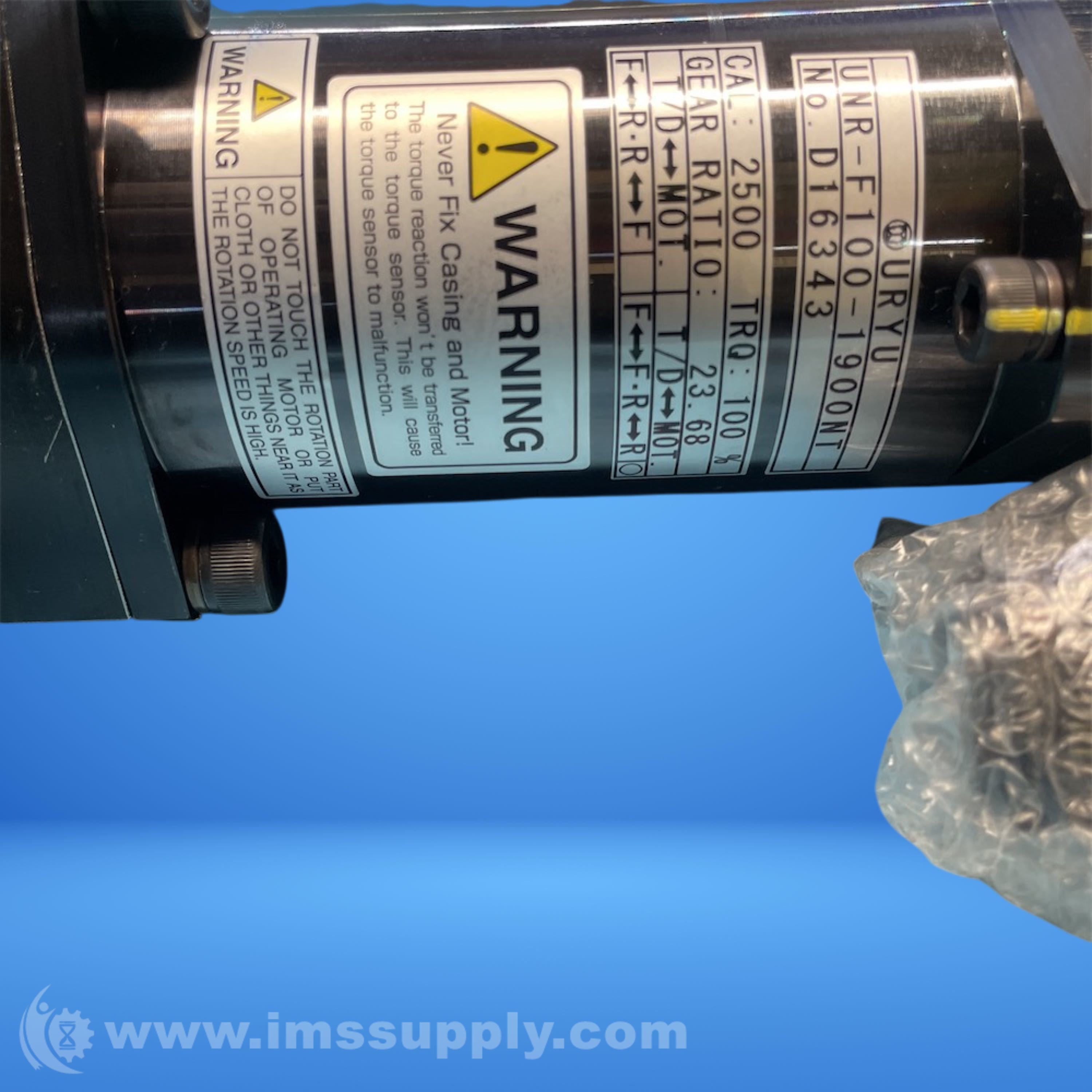

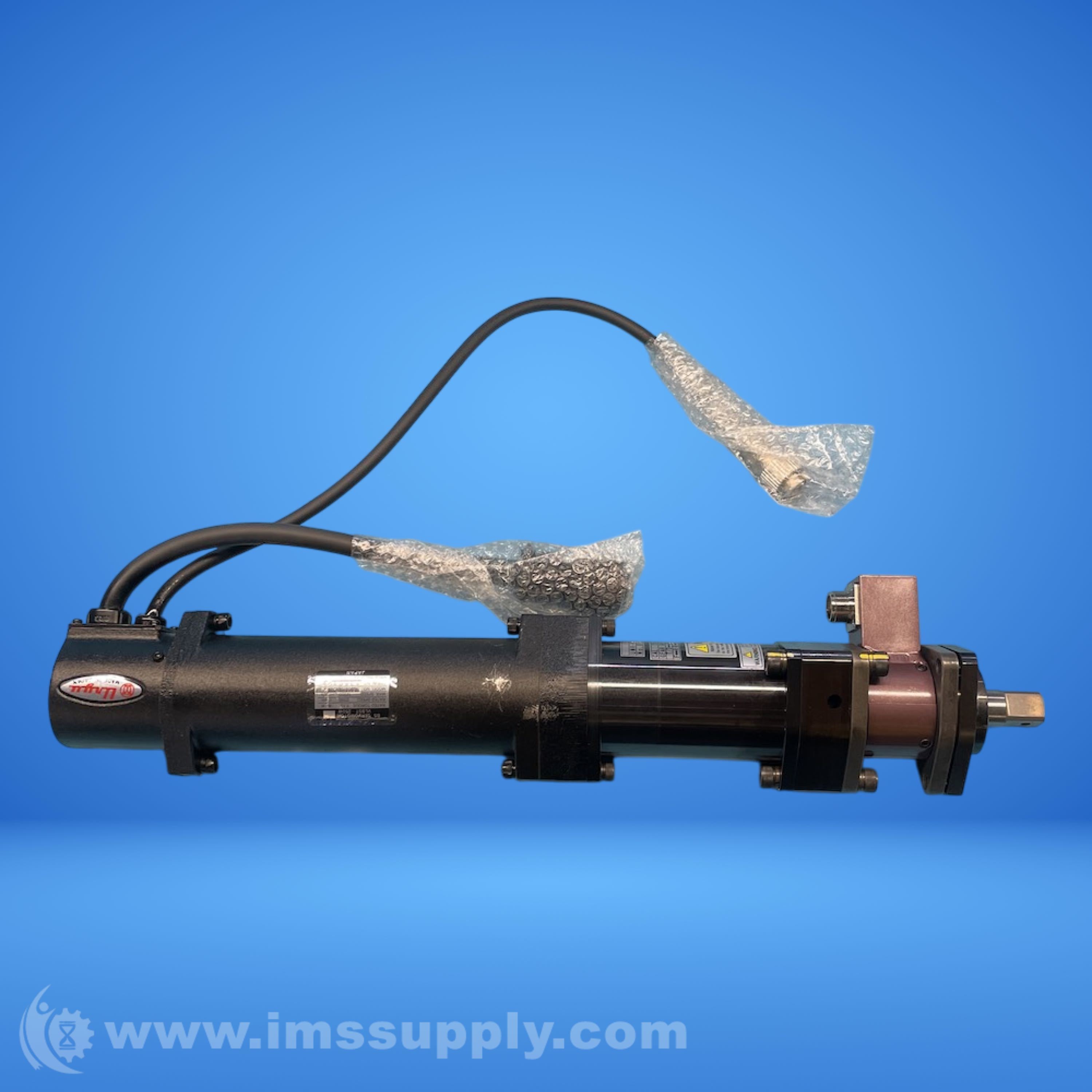

URYU UNR-F100-1900NT Inline Nutrunner
A fixtured inline nutrunner with 500 RPM free speed and 190 Nm tightening torque.
Specifications
- Free Speed: 500 rpm
- Tightening Torque: 190 Nm
- Motor Type: F100
- Torque Sensor: TM-250
- Torque Sensor Capacity: 245 Nm
- Weight: 7.94 kg
- Temperature Rating: -10 degrees C to +65 degrees C
- Max Input Voltage: 16V
- Output Voltage: 1.0 mV/V
- Non-lineality: ±0.5% R.O.
- Influence on Zero Point Due to Temperature: ±0.1% R.O. per degree C
- Input/Output Resistance: 480 ohms
- Insulation Resistance: >300 ohms
- Overload Capacity: 150%
- Rated Strain: 2000 x 10^-6
