VICKERS 02-101991 DG4S4LW 018C B 60 SOLENOID VALVE
Quick Overview
Manufactured By: VICKERS
Manufacturer Part Number: 02-101991 DG4S4LW 018C B 60
IMS Product Code: 1939746
Packaging: Sold Individually
Description:

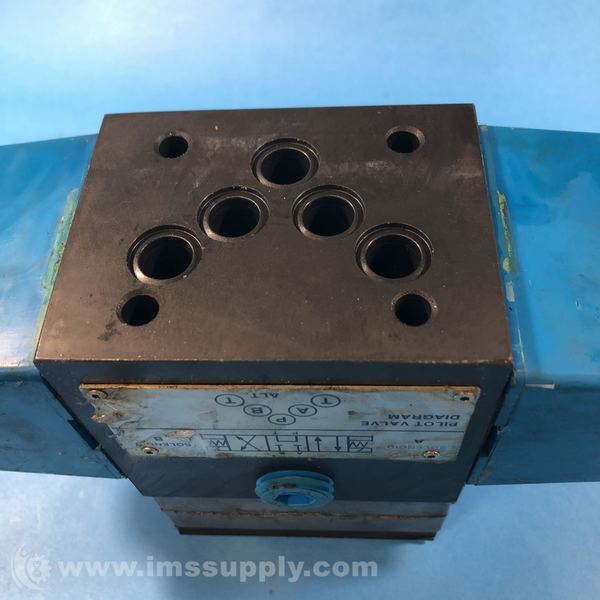

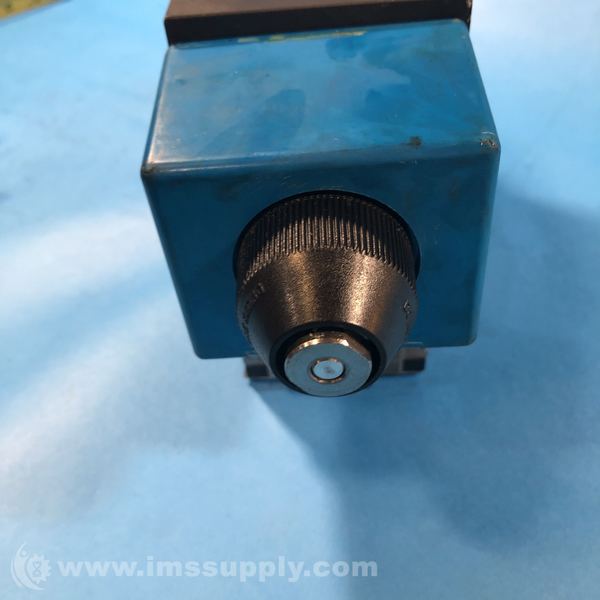

Vickers 02-101991 DG4S4LW 018C B 60 Solenoid Valve
Solenoid-actuated, 4-way directional control valve with tandem open crossover spool, spring-centered arrangement, and flying lead coil with wired terminal block. Max flow 20 gpm, max pressure 3600 psi, 110/120V AC coil.
Specifications
- Actuation: Solenoid
- Maximum Flow Rate: 20 gpm
- Maximum Operating Pressure: 3600 psi
- Coil Voltage: 110 V ac (50 Hz) / 120 V ac (60 Hz)
- Spool Type: Tandem Open Crossover
- Spool Spring Arrangement: Spring Centered
- Flow Direction: 4-Way
- Electrical Connection: Top Exit Flying Leads
- Orifice Size: 0.047 in
- T Port Pressure Rating: 1000 psi
- Seal Material: Buna-N
- Max Operating Temperature: 180 F
- Min Operating Temperature: 70 F
- Body Material: Gray Iron
- Size (ISO-4401): D05
- Overall Height: 137.4 mm
- Overall Width: 71.4 mm
- Overall Length: 241.2 mm
