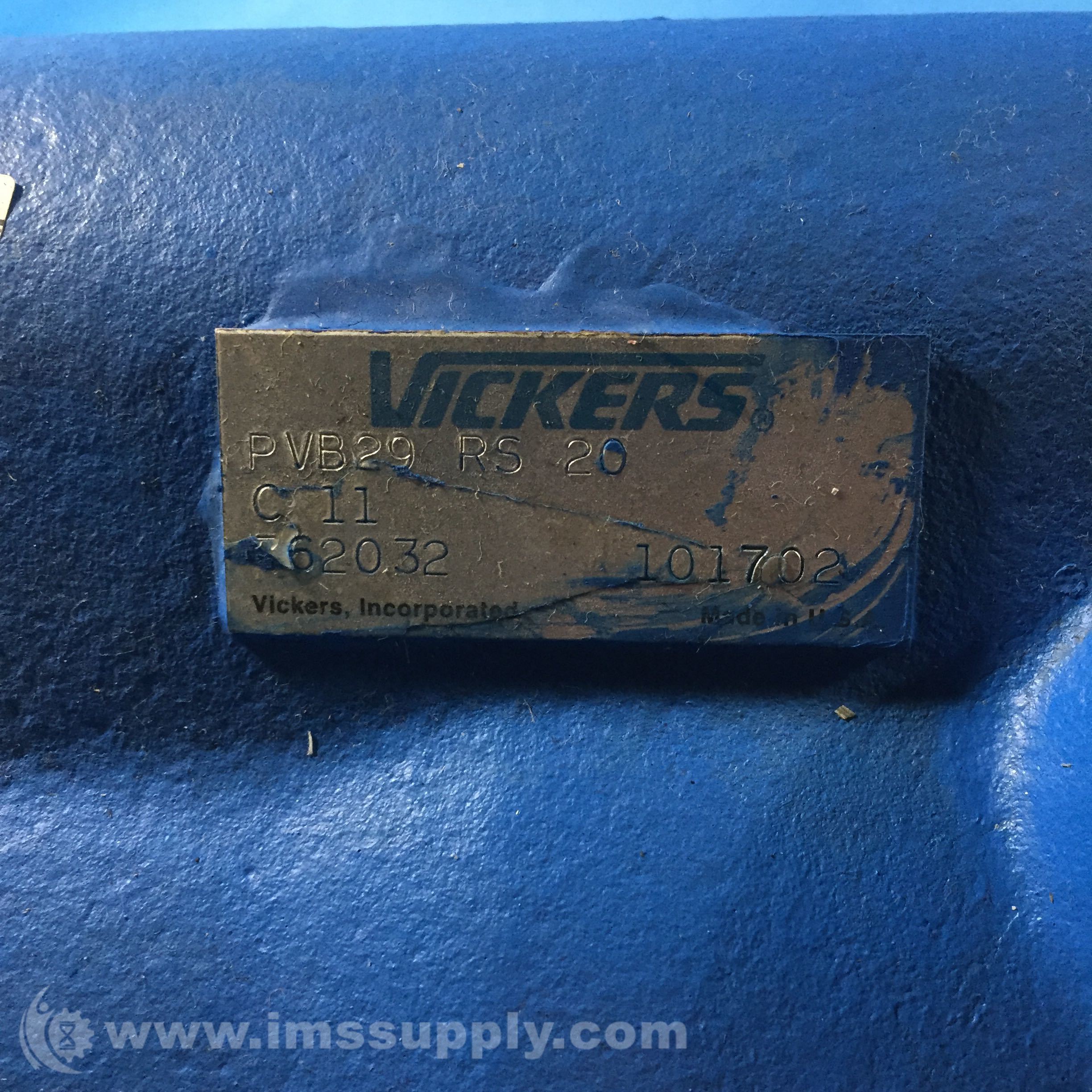

VICKERS PVB29-RS-20-C-11 HYDRAULIC AXIAL PISTON PUMP
Starting At: $5,606.25
Quick Overview
Manufactured By: VICKERS
Manufacturer Part Number: PVB29-RS-20-C-11
IMS Product Code: 1812240
Packaging: Sold Individually
Description:
Vickers PVB29-RS-20-C-11 Variable Displacement Hydraulic Axial Piston Pump
Specifications:
- Series: PVB
- Pressure compensator range: 250 to 3000 psi
- Displacement: 3.76 in³/r
- Maximum operating pressure: 3000 psi
- Input rotation: Right Hand Rotation
- Maximum rpm: 3600 RPM
- Input shaft type: Straight Key
- Displacement type: Variable
- Mounting type: SAE Flange
- Maximum continuous torque: 159 N-m
- Maximum flow rate: 30 gpm
- Connection gender: Female
- Inlet port size: 1-1/4 in SAE O-Ring
- Overall height: 215.9 mm
- Outlet port size: 1-1/4 in SAE O-Ring
- Overall length: 353.9 mm
- Max volume stop: With Max Volume Stop
- Overall width: 226 mm
- Pressure compensator control type: Pressure Compensator
- Port thread size: 1-5/8–12 SAE
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
