WAGO 734-402 DOUBLE DECK MALE HEADER
Quick Overview
Manufactured By: WAGO
Manufacturer Part Number: 734-402
IMS Product Code: 2078483

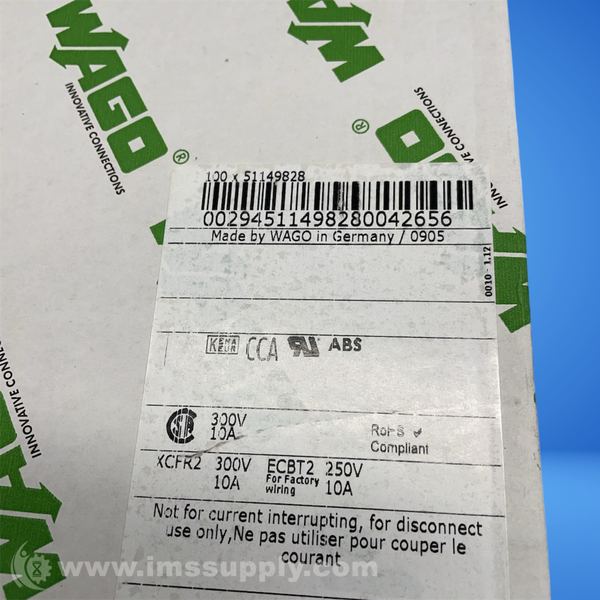

Packaging: Box of 100
Box of 16
Bag of 34
Box of 50
Box of 100
Description:
Wago 734-402 Double Deck Male Header
THT double-deck male header with 1.0 x 1.0 mm solder pin, angled, 100% protected against mismating, 3.5 mm pin spacing, 4-pole, light gray
Specifications
- Pin Spacing: 3.5 mm
- Number of Poles: 4
- Solder Pin Dimensions: 1 x 1 mm
- Color: Light Gray
- Material: Polyamide (PA66)
- Flammability Class: V0
- Rated Voltage (IEC/EN): 320 V (II/2), 160 V (III/2 & III/3)
- Rated Surge Voltage (IEC/EN): 2.5 kV
- Rated Current (IEC/EN): 10 A
- Rated Voltage (UL): 300 V
- Rated Current (UL): 10 A
- Limit Temperature Range: -60 to +100 degrees C
- Width: 9.4 mm
- Height: 26.6 mm
- Depth: 16.8 mm
- Solder Pin Length: 3.6 mm
- Weight: 2.724 g
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships on Monday, December 22, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, December 22, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
