WAGO 734-402 THT DOUBLE-DECK MALE HEADER
Quick Overview
Manufactured By: WAGO
Manufacturer Part Number: 734-402
IMS Product Code: 2078486

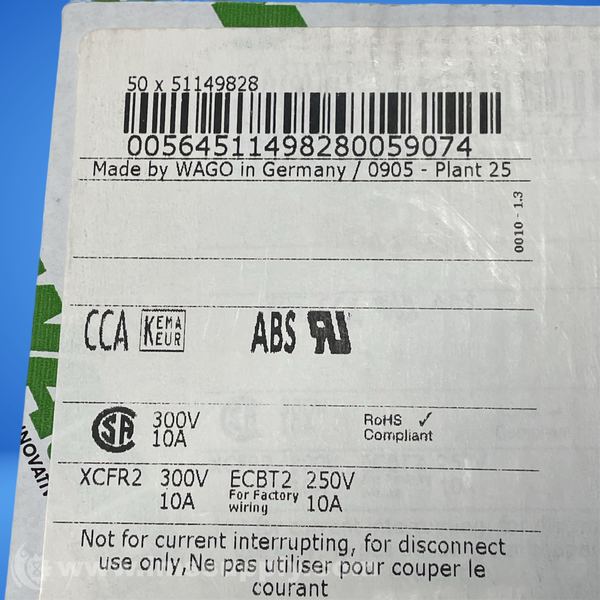

Packaging: Box of 50
Box of 16
Bag of 34
Box of 50
Box of 100
Description:
Wago 734-402 THT Double-Deck Male Header
THT double-deck male header with 1 x 1mm solder pin, angled, 100% protected against mismating, 3.5mm pin spacing, 4-pole, light gray
Specifications
- Pin Spacing: 3.5 mm
- Width: 9.4 mm
- Height: 26.6 mm
- Depth: 16.8 mm
- Solder Pin Length: 3.6 mm
- Solder Pin Dimensions: 1 x 1 mm
- Drilled Hole Diameter: 1.4 (+0.1) mm
- Contact Type: Male Connector/Plug
- Connector Type: For PCB
- Mismating Protection: Yes
- Mating Direction: 0°
- Locking of Plug-in Connection: None
- PCB Contact: THT
- Solder Pin Arrangement: Over the entire male connector (in-line)
- Number of Solder Pins per Potential: 1
- Color: Light Gray
- Material Group: I
- Insulation Material: Polyamide (PA66)
- Flammability Class: V0
- Contact Material: Electrolytic Copper (ECu)
- Contact Plating: Tin
- Nominal Voltage (III/3): 160 V
- Rated Impulse Withstand Voltage (III/3): 2.5 kV
- Rated Current: 10 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Voltage UL (Use Group D): 300 V
- Rated Voltage CSA (Use Group B): 300 V
- Rated Voltage CSA (Use Group D): 300 V
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships on Monday, December 22, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
