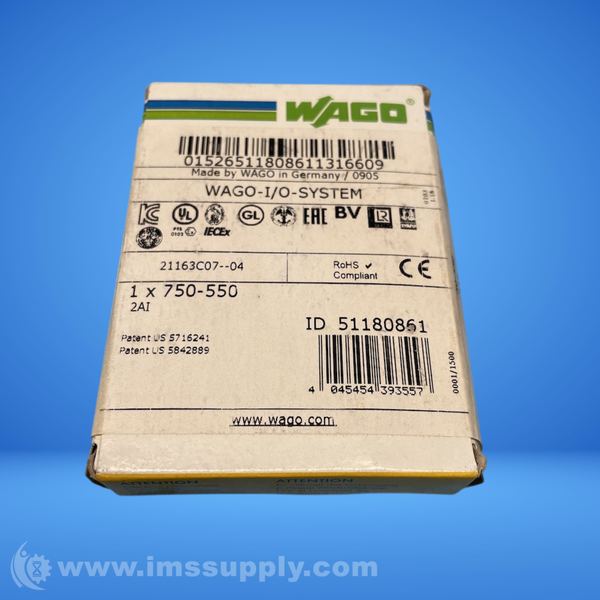

WAGO 750-550 2-CHANNEL ANALOG OUTPUT MODULE
Quick Overview
Manufactured By: WAGO
Manufacturer Part Number: 750-550
IMS Product Code: 1755359
Packaging: Sold Individually
Description:
Wago 750-550 2-Channel Analog Output Module
2-channel analog output module with 0-10V DC output, spring CAGE CLAMP connections, and DIN-35 rail mounting.
Specifications
- Supply Voltage (DC): 5Vdc
- Connection Type: spring CAGE CLAMP connections
- Mounting Mode: DIN-35 rail
- Analog Outputs: 2 x analog outputs (0-10Vdc / 12-bits / 2ms conversion time; 2-wire)
- Measurement Accuracy: +-0.1% (measuring error) +-0.01% (temperature error)
- Degree of Protection: IP20
- Dimensions: H100mm x W12mm x D69.8mm
- Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
- Ambient Air Temperature for Operation: 0 degrees C to 55 degrees C
- Ambient Air Temperature for Storage: -40 degrees C to 85 degrees C
- Humidity: 95% relative humidity (RH; non-condensing)
- Mechanical Resistance: Vibration resistance according to EN 60068-2-6 -- 4g, Shock resistance according to EN 60068-2-27 --15g
- Current Consumption: 65mA (5Vdc; system supply)
