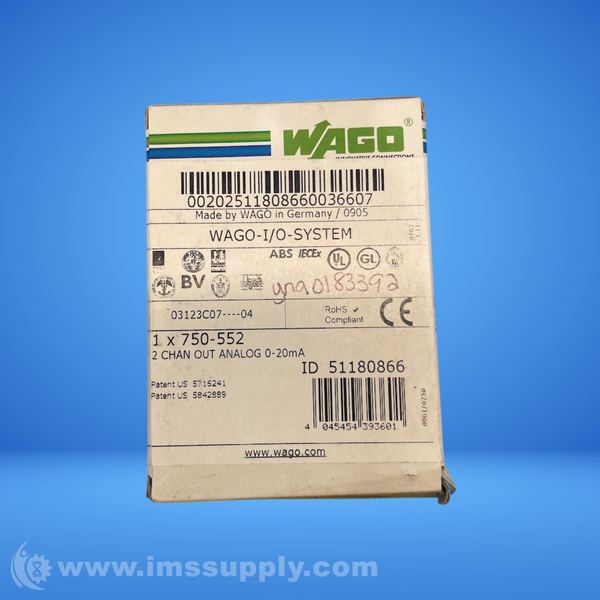

WAGO 750-552 2-CHANNEL ANALOG OUTPUT MODULE
Quick Overview
Manufactured By: WAGO
Manufacturer Part Number: 750-552
IMS Product Code: 1554392
Packaging: Sold Individually
Description:
Wago 750-552 2-Channel Analog Output Module
2-channel analog output module with 0-20mA current output, 12-bit resolution, and CAGE CLAMP connections.
Specifications
- Number of analog outputs: 2
- Signal type: 0-20mA DC
- Resolution: 12 bits
- Conversion time: 2ms
- Connection technology: 8 x CAGE CLAMP
- Supply voltage: 5V DC (system supply), 24V DC (field supply)
- Current consumption: 70mA (5V system supply)
- Operating temperature: 0-55°C
- Storage temperature: -25-85°C
- Relative humidity: 95% (non-condensing)
- Protection type: IP20
- Mounting type: DIN-35 rail
- Dimensions: 12mm x 100mm x 69.8mm
- Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 15 hours and 14 minutes.
