WEG 00718ET3PCT213TF1-W2 7.5HP TEFC MOTOR
Quick Overview
Manufactured By: WEG
Manufacturer Part Number: 00718ET3PCT213TF1-W2
IMS Product Code: 2124495
Packaging: Sold Individually
Description:

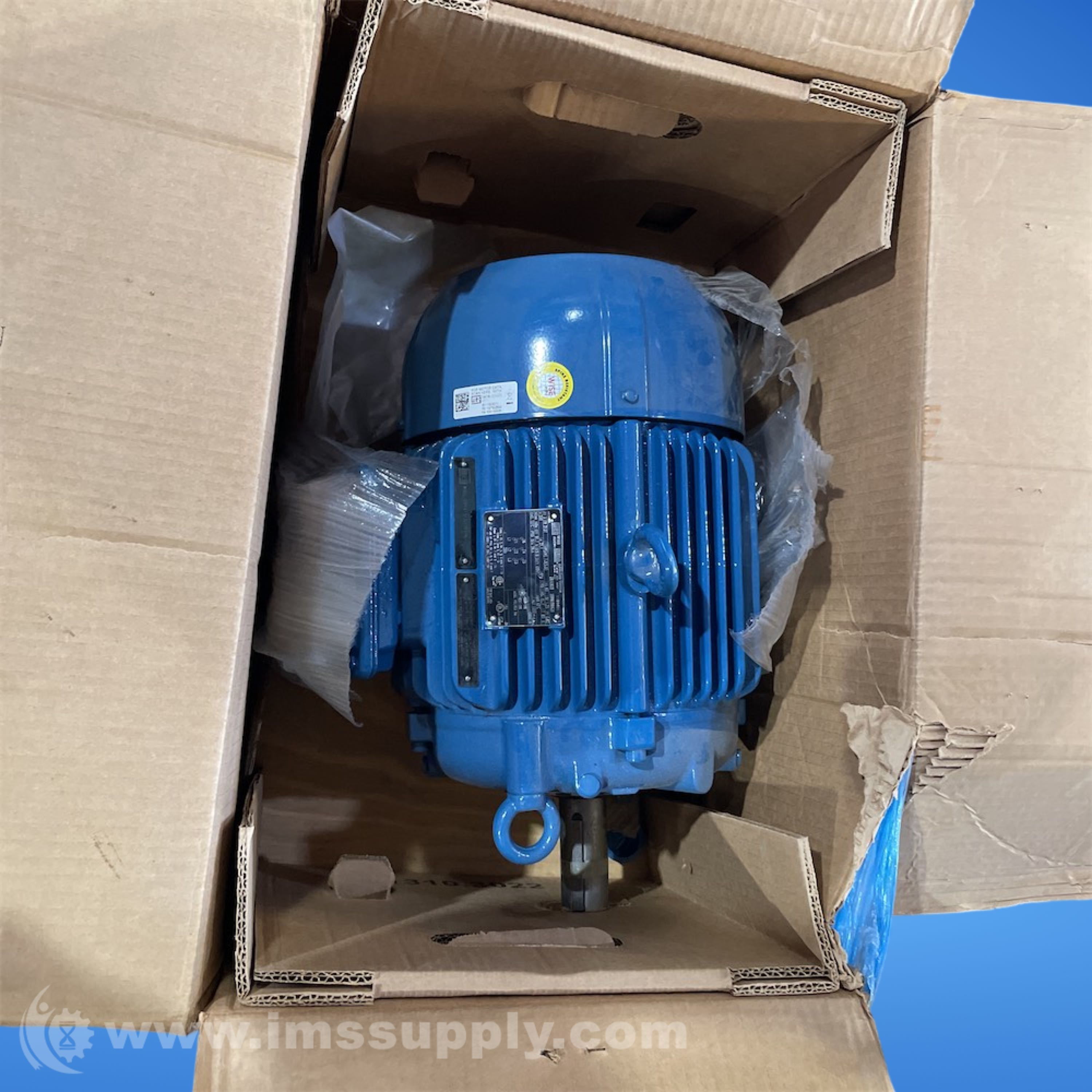

WEG 00718ET3PCT213TF1-W2 7.5HP TEFC Motor
Three-phase cooling tower motor with 7.5 HP output, 1800 RPM synchronous speed, 200V supply voltage, TEFC enclosure, and cast iron frame.
Specifications
- Motor Phase: 3
- Horsepower: 7.5
- Synchronous Rpm: 1800
- Motor Supply Voltage: 200V
- Frame Size: 213T
- Enclosure Type: TEFC
- Frequency Rating: 60Hz
- Duty Condition Type: Severe Duty
- Full Load Current: 21.1A
- Full Load Efficiency: 91.7%
- Shaft Diameter: 1.375in
- Overall Length C Dimension: 18.02in
- Frame Material: Cast Iron
- Insulation Class: F
- IP Rating: IP55
- Service Factor: 1.25
- Weight: 168.83lbs
