WEIDMULLER 1608570000 FEED THRU TERMINAL BLOCK
Quick Overview
Manufactured By: WEIDMULLER
Manufacturer Part Number: 1608570000
IMS Product Code: 2145890

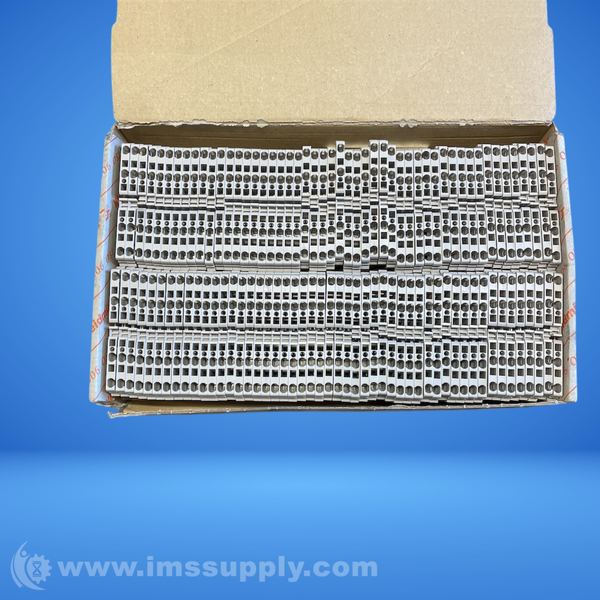

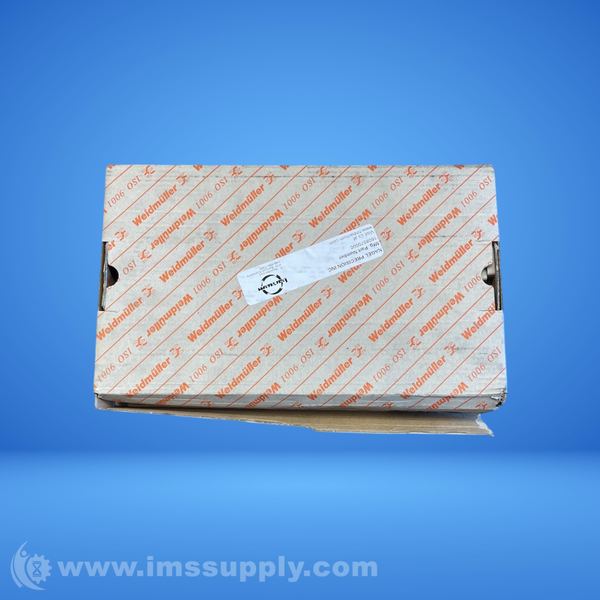

Packaging: Box of 100
Box of 100
Bag of 250
Description:

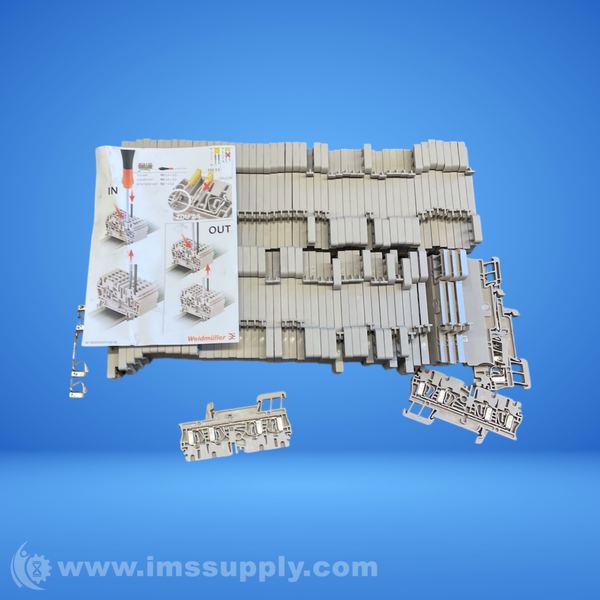

Weidmuller 1608570000 Feed Thru Terminal Block
Feed-through terminal block with tension-clamp connection, 2.5 mm�, 800 V, 24 A, dark beige
Specifications
- Connection Type: Tension-clamp connection
- Cross-section: 2.5 mm�
- Voltage: 800 V
- Current: 24 A
- Color: dark beige
- Type of Splice Terminal: rail
- Electrical Mounting: spring clamp
- Body Material: wemid
- Wire Cross-section: 2.5 mm�
- Number of Terminals: 4
- Width: 5.1 mm
- Height: 39.5 mm
- Operating Temperature: max. 125 �C
- Mounting Rail Size: TS35
- Rated Voltage: 800 V AC
- Number of Conductors: 4
- Terminal Type: Feed-Through Terminal
- Insulation Material: Wemid
- Insulation Color: Dark Beige
- Overall Length: 1.516 in; 38.5 mm
- Overall Height: 3.13 in; 79.5 mm
- Overall Width: 0.201 in; 5.1 mm
- Maximum Voltage Rating: 800 V
- Minimum Operating Temperature: -50 �C
- Maximum Operating Temperature: +120 �C
- Minimum Conductor Size: 26 AWG
- Maximum Conductor Size: 12 AWG
- Standards Met: IEC 60947-7-1; RoHS Compliant
- Wire Size AWG Min: 26
- Wire Size AWG Max: 12
- Wire Connection Method: Clamp
- Rated Current: 24 A
- Product Range: ZDU Series
