WEIDMULLER 1608570000 FEED-THRU TERMINAL BLOCK
Quick Overview
Manufactured By: WEIDMULLER
Manufacturer Part Number: 1608570000
IMS Product Code: 2145919
Packaging: Bag of 250
Box of 100
Bag of 250
Description:

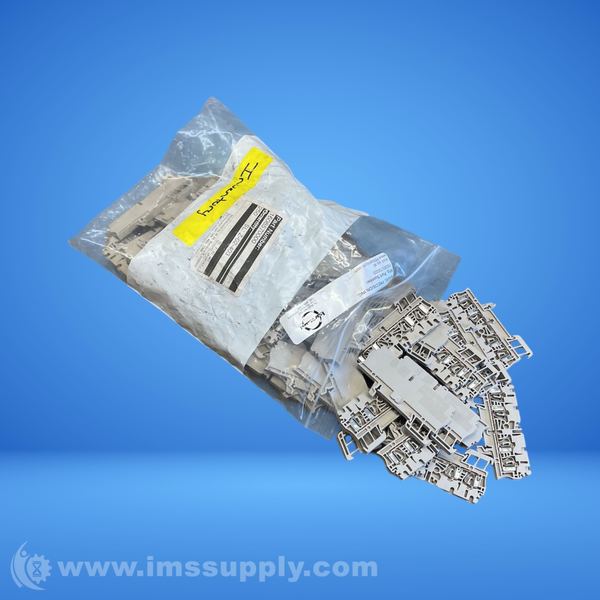

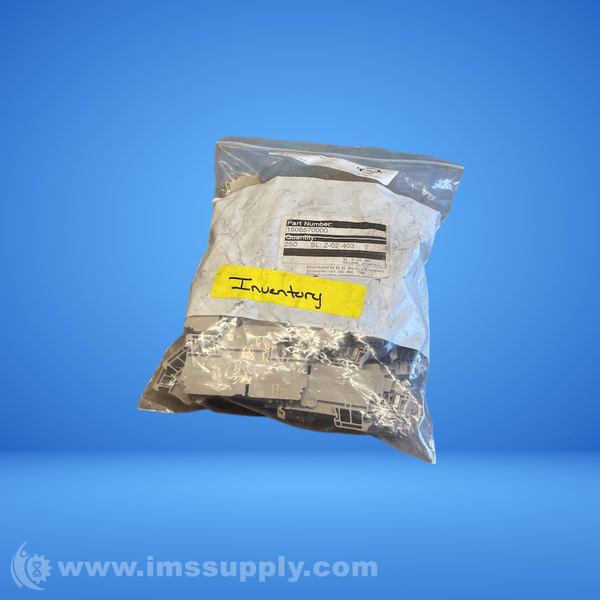

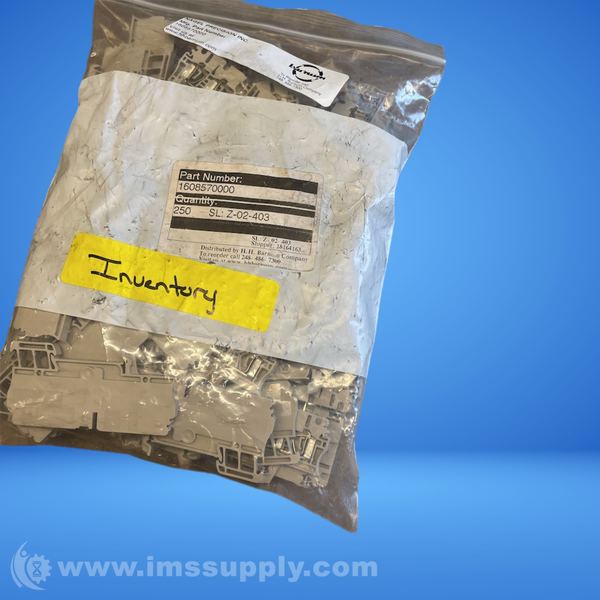

Weidmuller 1608570000 Feed-Thru Terminal Block
4-position feed-through terminal block with tension-clamp connection, 2.5 mm² cross-section, 800 V rated voltage, 24 A rated current, dark beige insulation color, Wemid insulation material, for DIN rail mounting.
Specifications
- Connection type: Tension-clamp connection
- Cross-section: 2.5 mm²
- Voltage rating: 800 V
- Current rating: 24 A
- Color: Dark beige
- Number of positions: 4
- Type of splice terminal: Rail
- Electrical mounting: Spring clamp
- Body material: Wemid
- Flammability rating: UL94V-0
- Width: 5.1 mm
- Height: 39.5 mm
- Operating temperature: -50 °C to 120 °C
- Mounting rail size: TS35
