WEIGUANG YWF4D-400S-102/47-G AXIAL FAN MOTOR
Quick Overview
Manufactured By: WEIGUANG
Manufacturer Part Number: YWF4D-400S-102/47-G
IMS Product Code: 2147165
Packaging: Sold Individually
Description:

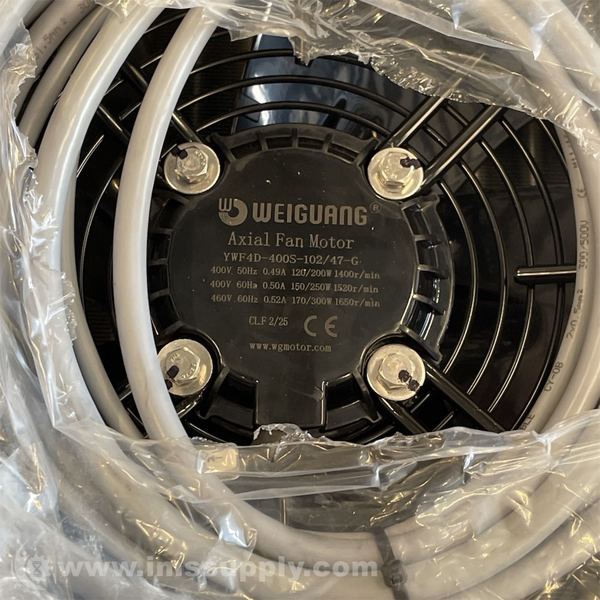

Weiguang YWF4D-400S-102/47-G Axial Fan Motor
Three-phase axial fan motor with external rotor design. Key specifications include 400mm impeller diameter, 1380 RPM speed, and 3400-4100 m³/h airflow capacity. Operates at 400V 50Hz or 460V 60Hz with power consumption ranging from 180-300W. Features IP54 protection rating and operates within -30°C to 60°C temperature range.
Specifications
- Manufacturer: Weiguang
- Part Number: YWF4D-400S-102/47-G
- Type: Axial Fan Motor with External Rotor
- Voltage: 400V (3-phase)
- Frequency: 50/60Hz
- Current: 0.47-0.52A
- Power: 180-300W
- Speed: 1380-1650 RPM
- Air Volume: 3400-4100 m³/h
- Noise Level: 67-68 dB
- Protection Rating: IP54
- Operating Temperature: -30°C to 60°C
- Weight: 6-8 kg
