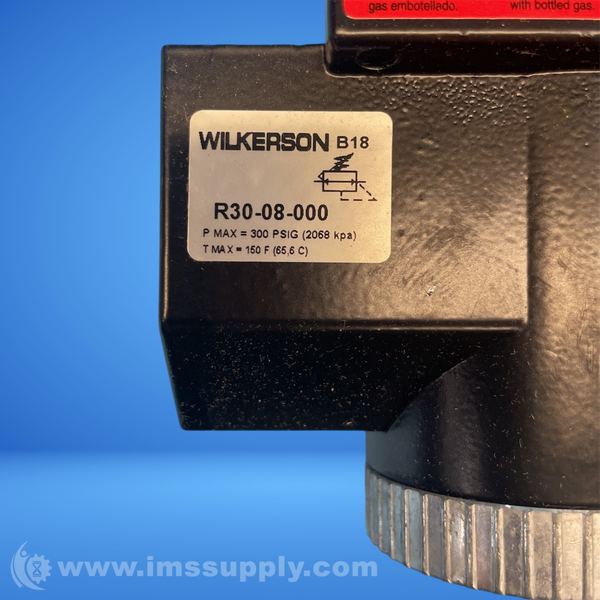

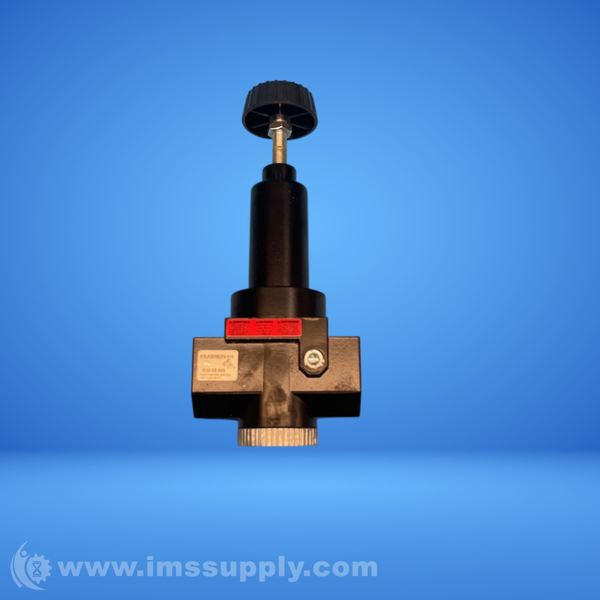

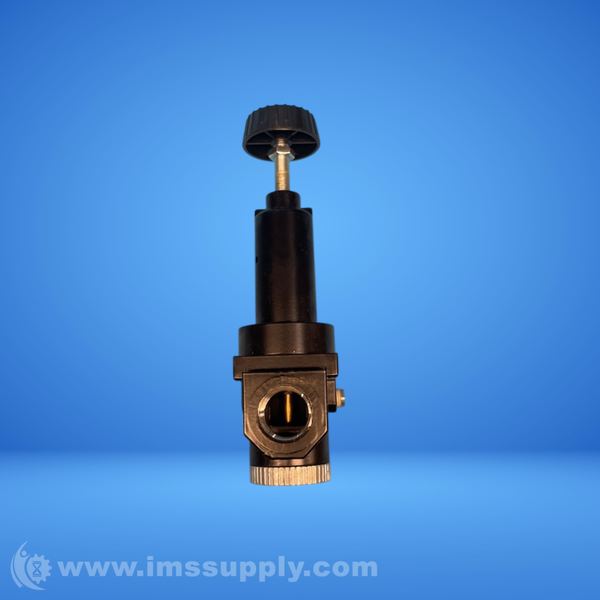

WILKERSON R30-08-000 REGULATOR
Quick Overview
Manufactured By: WILKERSON CORP.
Manufacturer Part Number: R30-08-000
IMS Product Code: 2160936
Packaging: Sold Individually
Description:
Wilkerson R30-08-000 Regulator
Compressed air regulator with 1 inch NPT port size, relieving type, zinc body, 500 SCFM flow capacity, 300 PSIG maximum supply pressure, and 10-125 PSIG adjustable pressure range.
Specifications
- Thread Size: 1"
- Thread Type: National Pipe Thread (NPT)
- Adjustable Pressure: 10 to 125 psig
- Maximum Inlet Pressure: 300 psig
- Operating Temperature: 32 to 150 degrees F
- Gauge Port: 2 x 1/4 in
- Port Size: 1"npt
- Flow Capacity: 500 SCFM
- Maximum Supply Pressure: 300 PSIG
- Body Material: Zinc
- Regulator Type: Relieving
- Seal Material: Nitrile
- Weight: 6 lb
- Pressure Drop: 15 psig
- Minimum Operating Temperature: 32 degrees F
- Maximum Regulated Pressure: 125 psi
