YOKOTA TKA90 IMPULSE WRENCH
Quick Overview
Manufactured By: YOKOTA
Manufacturer Part Number: TKA90
IMS Product Code: 1827603
Packaging: Sold Individually
Description:

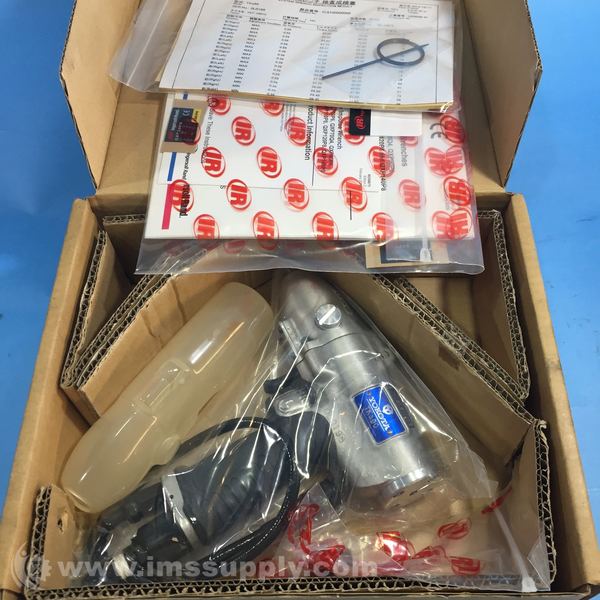

Yokota TKA90 Impulse Wrench
Pneumatic impulse wrench for tightening jobs in assembly industry.
Specifications
- Square Drive / Hexagon: 3/8"
- Bolt capacity (mm): 8 - 10
- RPM: 6500
- Torque (Nm): 47 - 70
- Air consumption (l/s): 6.8
- Air consumption no load (l/s): 10.5
- Air connection: PT 1/4"
- Air pressure max. (MPa): 0.63
- Hose diameter (mm): 9.5
- Weight (kg): 1.5
- mm A: 195
- mm B: 24
- Sound pressure (dB(A)): 78
- Sound uncertainty (dB(A)): 3
- Vibration uncertainty (m/sē): 1
- Safety standard: EN ISO 11148-6
- Vibration standard: EN ISO 28927-2
- Sound standard: ISO 15744
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 22 minutes.
Used (Special):
Attached cable assembly.
Availability: 20 In Stock
Ships today if ordered in the next 2 hours and 22 minutes.
