ZERO MAX 2101 LINEAR ACTUATOR
Quick Overview
Manufactured By: ZERO MAX INC
Manufacturer Part Number: 2101
IMS Product Code: 2152985
Packaging: Sold Individually
Description:

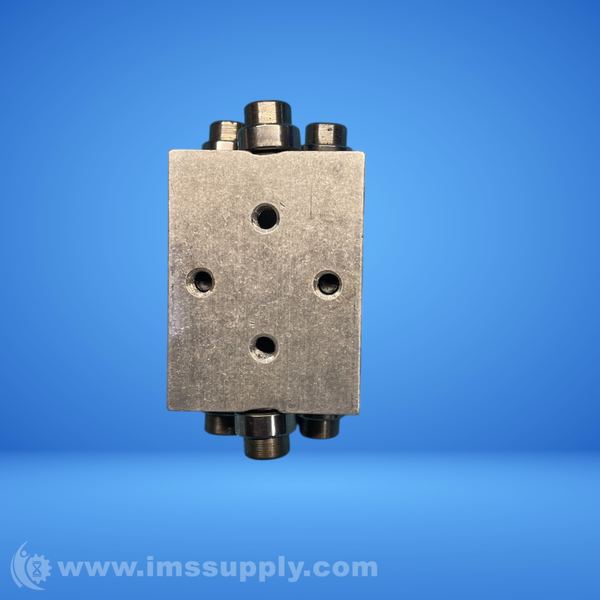

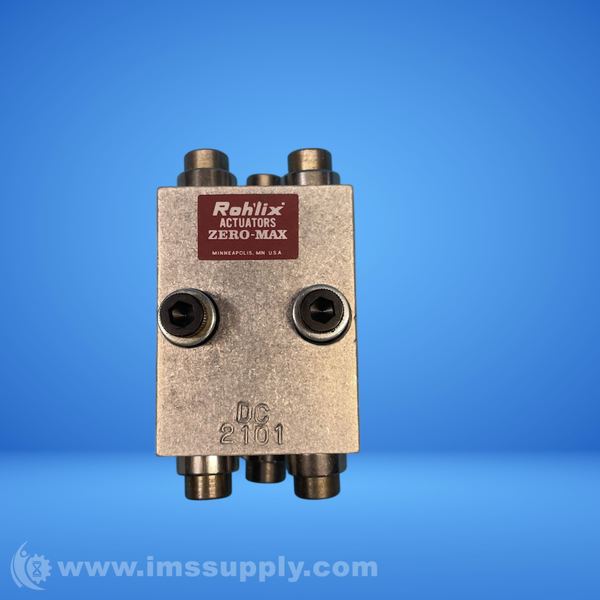

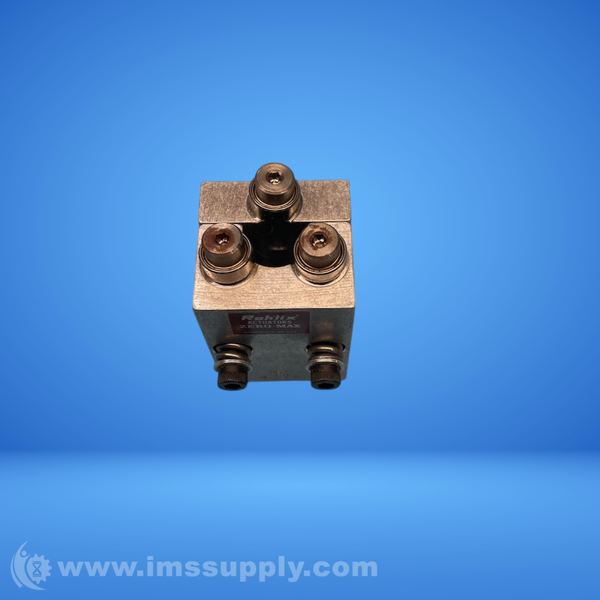

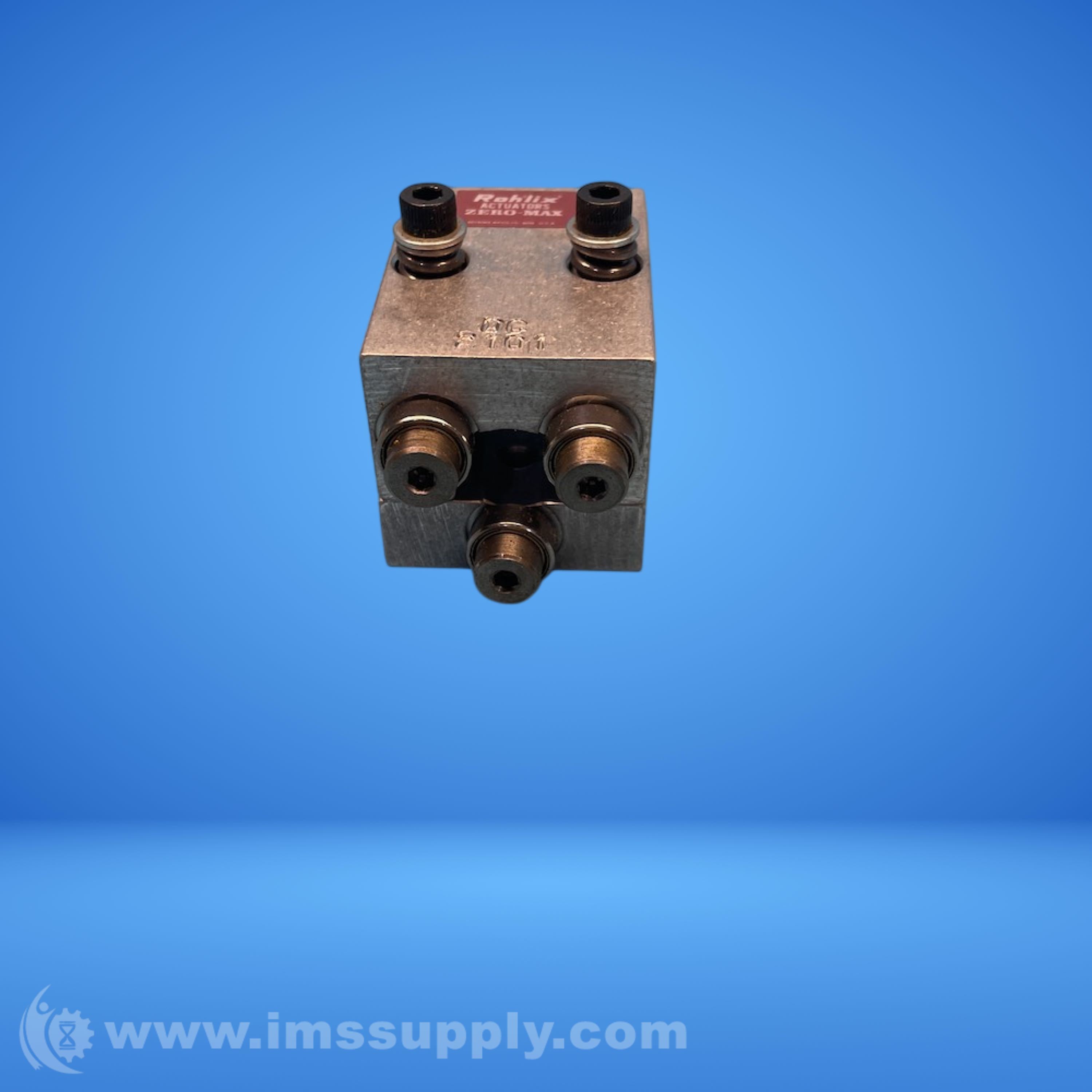

Zero Max 2101 Linear Actuator
Linear actuator with 0.5 inch shaft diameter and 30 lbs thrust rating
Specifications
- Shaft Diameter: 0.500 inches / 12.7 mm
- Lead: 0.10 inches / 2.5 mm
- Thrust Rating: 30 lbs / 133 N
- Block Height (A): 1.52 inches / 38.6 mm
- Overall Height (B)*: 1.91 inches / 48.5 mm
- Block Width (C): 1.50 inches / 38.1 mm
- Dimension (D): 0.76 inches / 19.3 mm
- Block Length (E): 2.00 inches / 50.8 mm
- Overall Length (F), Max: 2.81 inches / 71.4 mm
- Dimension (G): 1.00 inches / 25.4 mm
- Tapped Mounting Holes (H): #10-32 UNF x 3/8" Deep

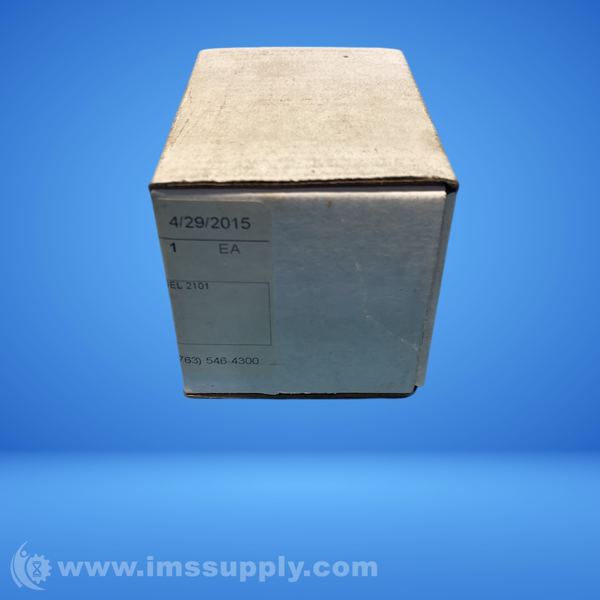

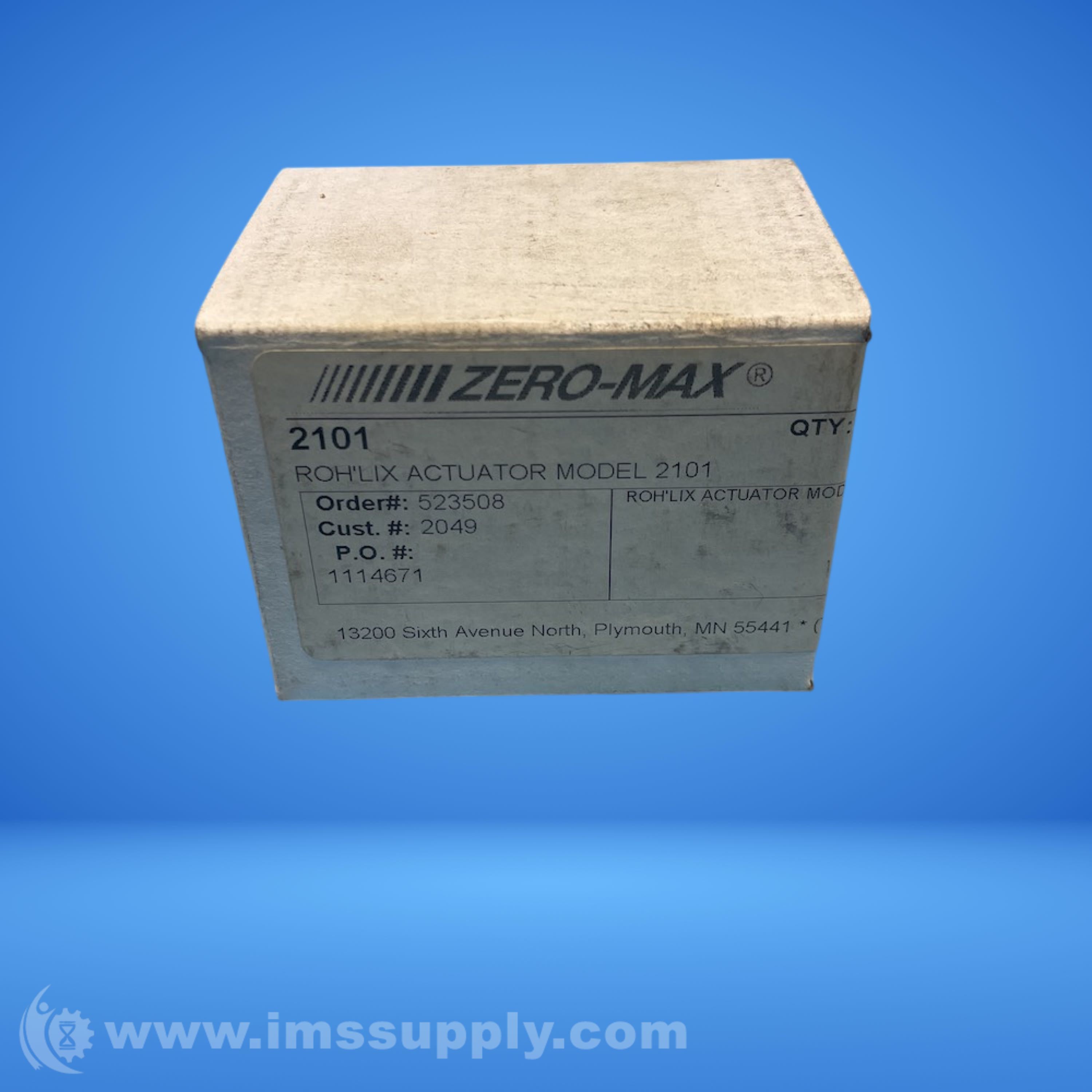

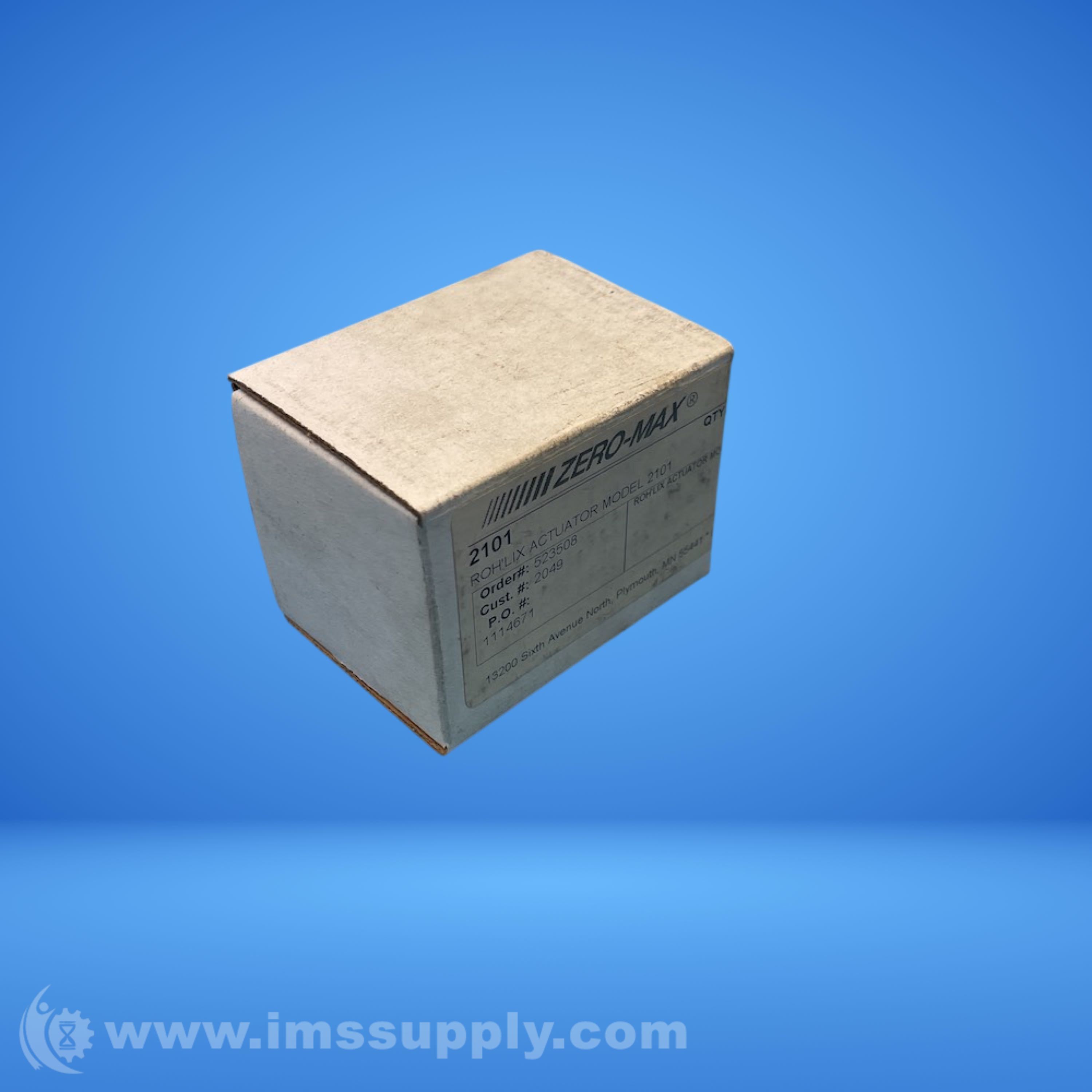

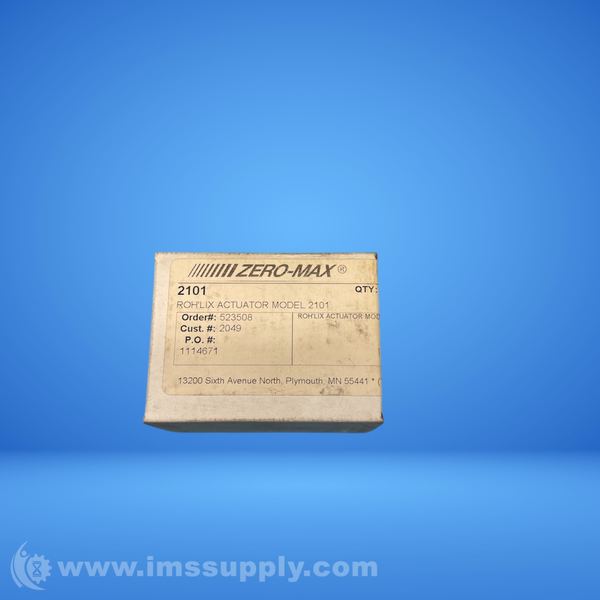

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 4 In Stock
Ships today if ordered in the next 11 hours and 1 minutes.
