AMI UKF206+H2306 FOUR-BOLT FLANGE BEARING UNIT
Quick Overview
Manufactured By: AMI BEARINGS, INC.
Manufacturer Part Number: UKF206+H2306
IMS Product Code: 1862691
Packaging: Sold Individually
Description:

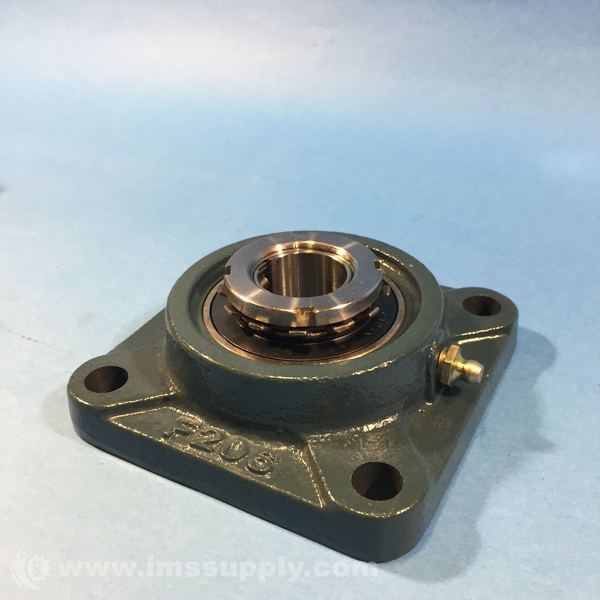

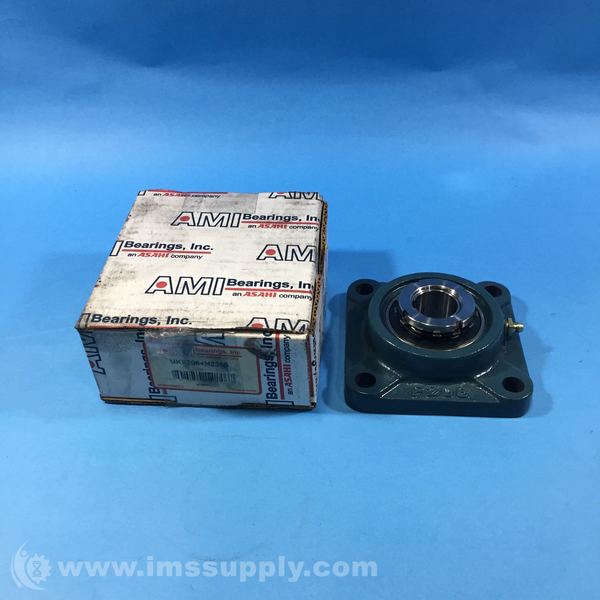

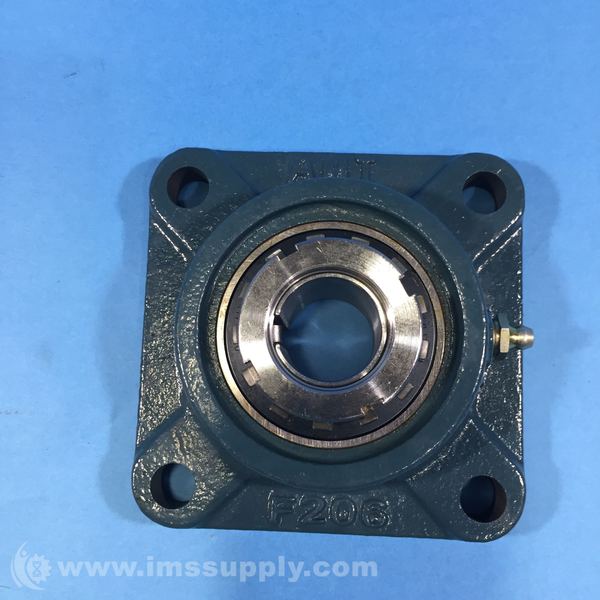

AMI UKF206+H2306 Four-Bolt Flange Bearing Unit
Four-bolt flange bearing unit with 25mm bore and adapter sleeve locking. Cast iron housing with chrome steel insert, normal duty rating, wide inner ring.
Specifications
- Bearing: UK206+H2306
- Housing: F206
- Shaft Diameter: 25 mm
- Bolt Size: M10
- Lubrication Fitting Tap: 1/8-27 NPT
- Weight: 2.68 lb
- a: 108 mm
- e: 83 mm
- g: 14 mm
- x: 31 mm
- s: 12 mm
- Z: 39 mm
- L: 38 mm
- D: 62 mm
- Bi: 26 mm
- Be: 19 mm
- T: 5.1 mm
- Y: 8 mm
- W: 45 mm
- Housing Material: Cast iron
- Insert Material: Bearing steel
- Type: 4 Bolt Flange
- Duty: Standard
- Expansion: No
- Relubrication: Yes
- Seal: Contact Seal with Slinger
