AMI BEARINGS UCF204-12 FOUR-BOLT FLANGE UNIT
Quick Overview
Manufactured By: AMI BEARINGS, INC.
Manufacturer Part Number: UCF204-12
IMS Product Code: 1945550
Packaging: Sold Individually
Description:

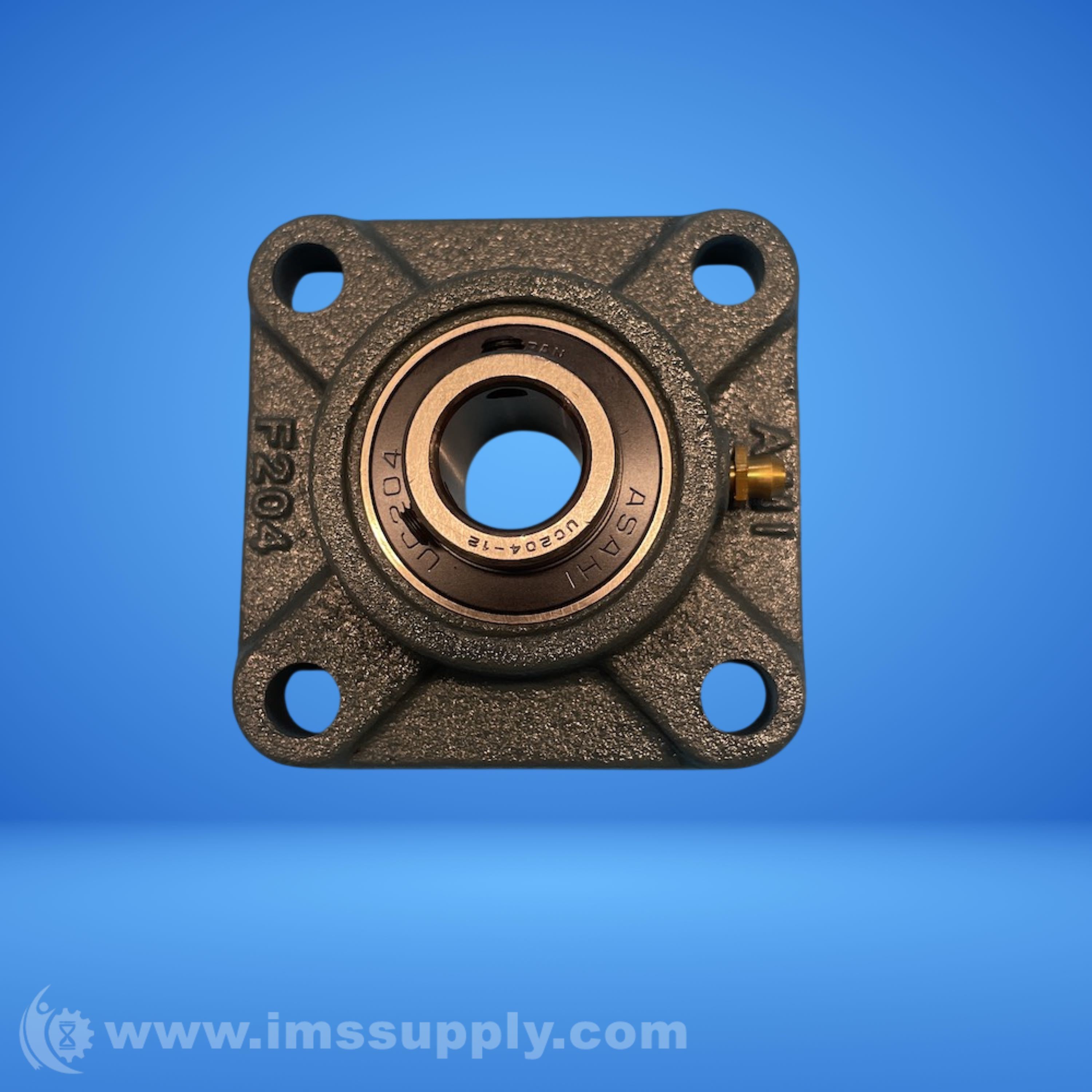

AMI Bearings UCF204-12 Four-Bolt Flange Unit
Four-bolt flange cast iron housing with UC204-12 bearing
Specifications
- Shaft Diameter: 3/4 in
- Bolt Size: 3/8 in
- Lubrication Fitting Tap: 1/4-28 UNF
- Weight: 1.30 lb
- Housing Material: Cast Iron
- Housing Type: Flange, Four-Bolt Flange
- Locking Type: Set Screw Locking
- Bearing Type: Normal Duty
- Bearing Insert Material: AISI 52100 Steel
- a: 3-3/8 in
- e: 2-1/2 in
- g: 15/32 in
- x: 1 in
- s: 7/16 in
- Z: 1.311 in
- Bi: 1.220 in
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 8 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 6 In Stock
Ships today if ordered in the next 13 hours and 8 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 8 minutes.
