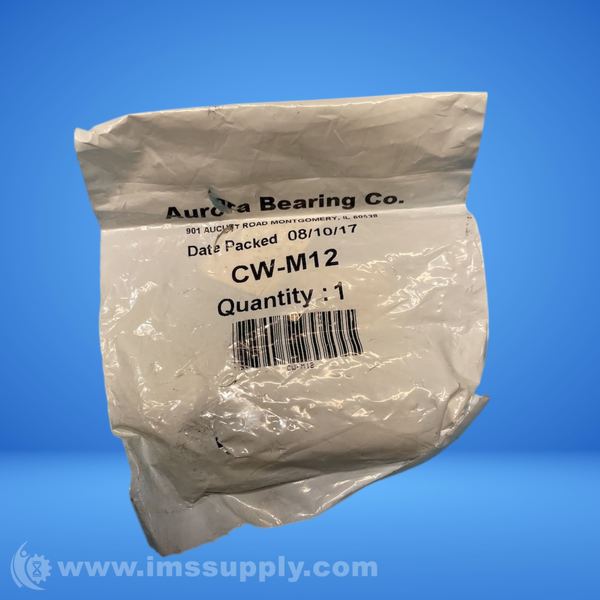

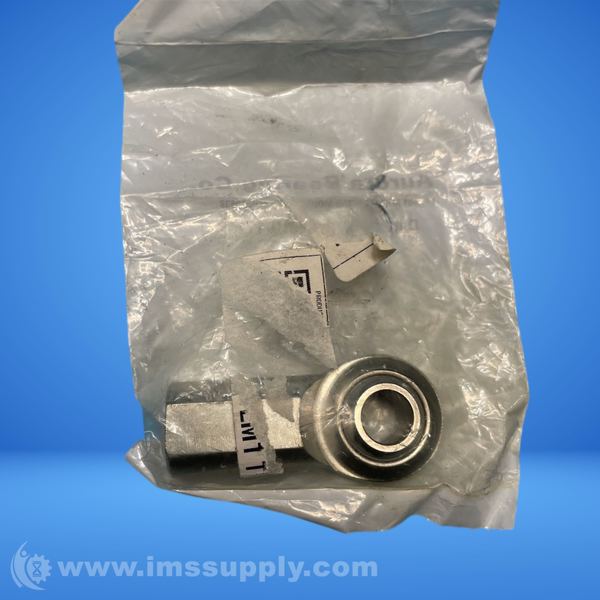

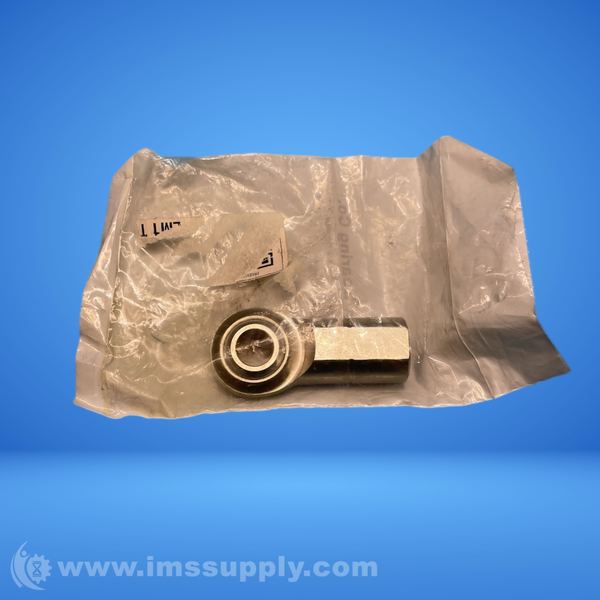

AURORA BEARING CW-M12 SPHERICAL ROD END
Quick Overview
Manufactured By: AURORA BEARING
Manufacturer Part Number: CW-M12
IMS Product Code: 2168262
Packaging: Sold Individually
Description:
Aurora Bearing CW-M12 Spherical Rod End
Female Threaded Right Hand Spherical Rod End
Specifications
- Rod End Type: Female
- Bore Diameter: 12 mm
- Shank Thread Size: M12 x 1.75
- Thread Direction: Right Hand
- Grade: Economy/General Purpose
- Misalignment Angle: 27 degrees
- Thread Type: -6H
- Housing Material: Carbon Steel
- Ball Material: Alloy Steel
- Radial Static Load Capacity: 25819 N
- Head Diameter: 30 mm
- Head Width: 10.75 mm
- Ball Diameter: 22.23 mm
- Overall Height: 65 mm
- Series: CW
- Weight: 0.095 kg
- B - Ball Bore: 12.000 mm
- W - Ball Width: 16.00 mm
- A - Base to Center: 50.00 mm
- D - Head Diameter: 30.00 mm
- K - Shank Diameter: 22.00 mm
- J - Wrench Flat Width: 19.00 mm
- C - Thread Depth: 24.00 mm
- a1 - Misalignment Angle Clevis Mounted: 27 degrees
- a3 - Misalignment Angle - Shoulder Bolt Mounted: 34 degrees
- a4 - Misalignment Angle - Pin Mounted: 57 degrees
- Ultimate Radial Static Load Capacity: 25,819 N
- Approximate Brg. Weight: 95 g
- Type of Lubrication: None
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 56 minutes.
