AURORA BEARING MW-16T-1 FEMALE THREADED ROD END
Quick Overview
Manufactured By: AURORA BEARING
Manufacturer Part Number: MW-16T-1
IMS Product Code: 2152813

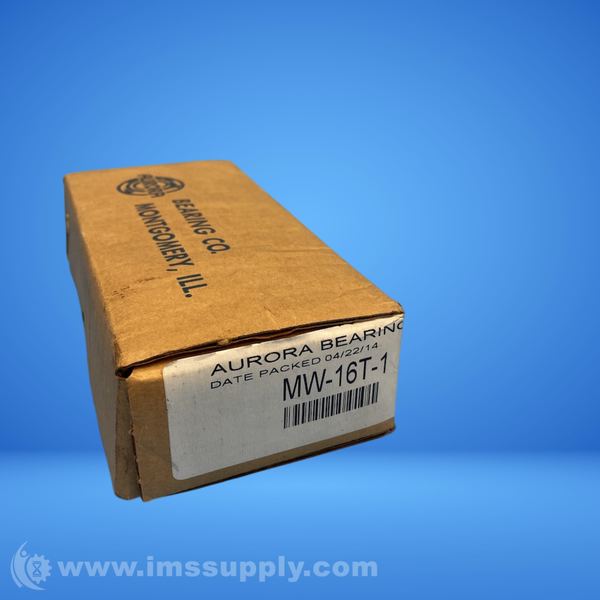

Packaging: Sold Individually
Description:

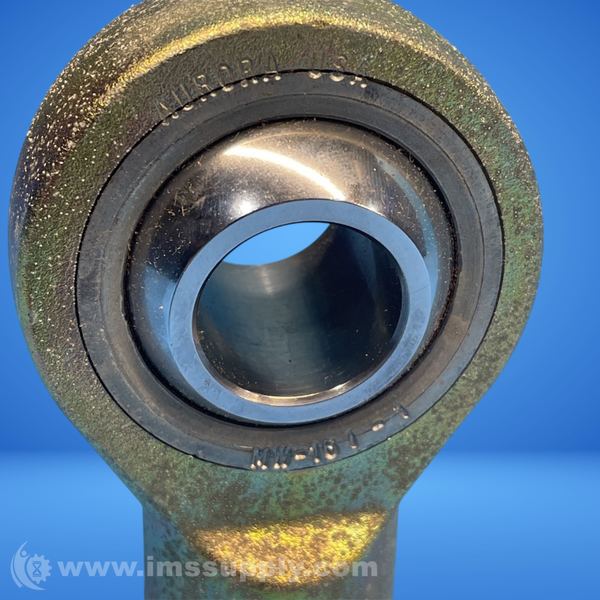

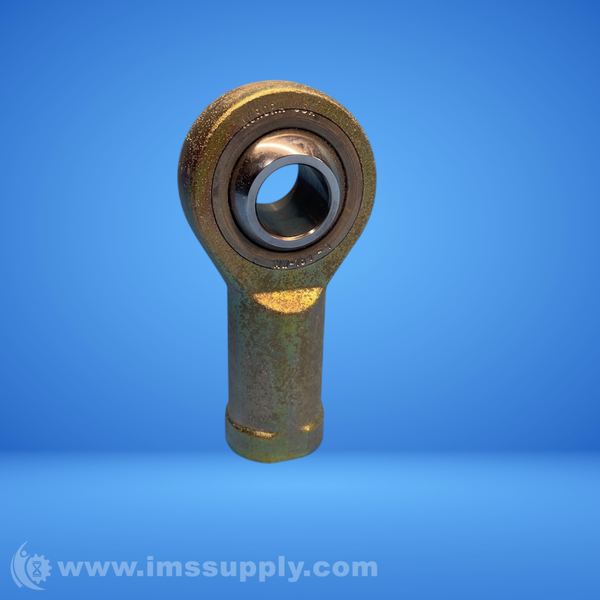

Aurora Bearing MW-16T-1 Female Threaded Rod End
Female threaded spherical rod end with 1 inch bore diameter and 1-14 thread size. Self-lubricating with low carbon steel housing and alloy steel ball.
Specifications
- Rod End Type: Female
- Bore Diameter: 1.0000 in
- Shank Thread Size: 1-14
- Thread Direction: Right Hand
- Grade: Precision
- Misalignment Angle: 17 degrees
- Thread Type: UNS-2B
- Lubrication Type: Self-Lubricating
- Housing Material: Low Carbon Steel
- Ball Material: Alloy Steel
- Race Material: Low Carbon Steel
- Radial Static Load Capacity: 43541 lbf
- Head Diameter: 2.7500 in
- Head Width: 1.000 in
- Ball Diameter: 1.8750 in
- Overall Height: 5.5000 in
- Series: MW
- Weight: 2.41 lbs
