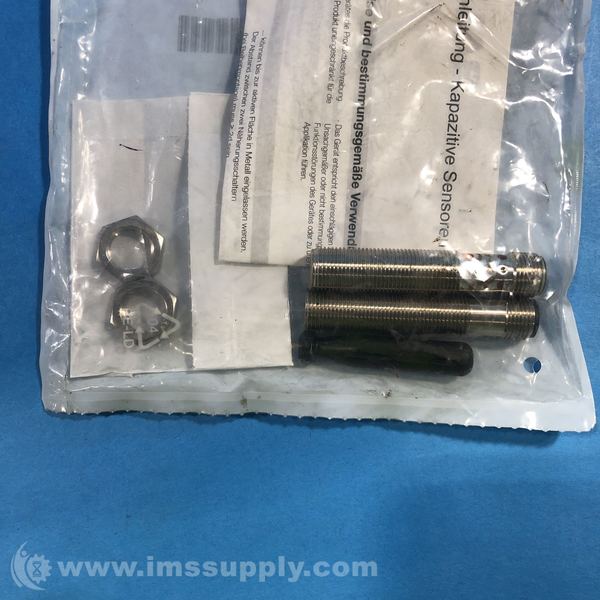

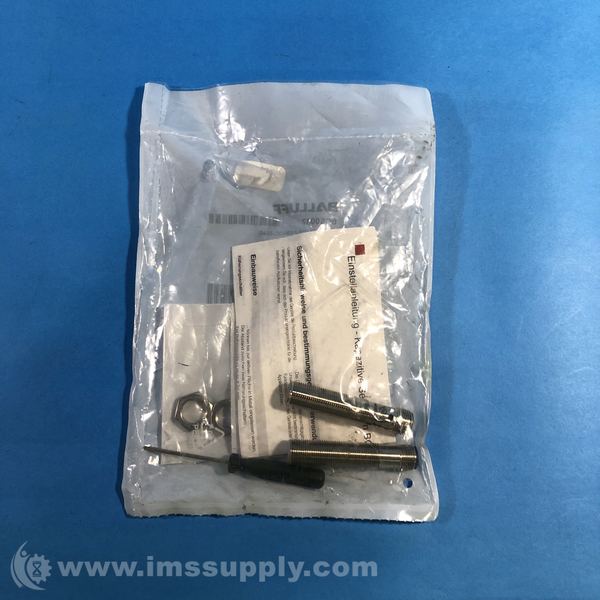

BALLUFF BCS M12T4D2-PSM40C-S04G CAPACITIVE SENSOR
Quick Overview
Manufactured By: BALLUFF
Manufacturer Part Number: BCS M12T4D2-PSM40C-S04G
IMS Product Code: 1934774
Packaging: Sold Individually
Description:
Balluff BCS M12T4D2-PSM40C-S04G Capacitive Sensor
Capacitive sensor for object recognition featuring adjustable switching distance and PNP NO contact output.
Specifications
- Dimension: Ø 12 x 60 mm
- Series: M12
- Thread (A): M12x1
- Installation: flush-mountable
- Connection: Plug connector, M12x1 plug, 4-pin
- Switching output: PNP NO contact
- Switching frequency: 100 Hz
- Range: 1...4 mm
- Sensitivity: Adjustable switching distance
- Housing material: Stainless steel (1.4301)
- Active area, material: PTFE
- Ambient temperature: -30...70 degrees C
- Operating voltage Ub: 12...35 VDC
- Approval/conformity: CE, UKCA, cULus, WEEE
- Protection class: IP65
- Built-in short circuit protection: yes
- Built-in reverse polarity protection: yes
- Content: 2 nuts
- Connection type: Plug connector
- Electr. version: DC, constant voltage
- Connector type: M12x1-S04
- Output type: PNP
- Switch function: NO
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 22 minutes.
New - Missing Box (Special):
Hardware only
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 22 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 5 In Stock
Ships today if ordered in the next 3 hours and 22 minutes.
Used (Special):
Part is missing hardware.
Availability: 12 In Stock
Ships today if ordered in the next 3 hours and 22 minutes.
