BANNER ITA13S FIBER OPTIC SENSOR
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: ITA13S
IMS Product Code: 1845222
Packaging: Sold Individually
Description:

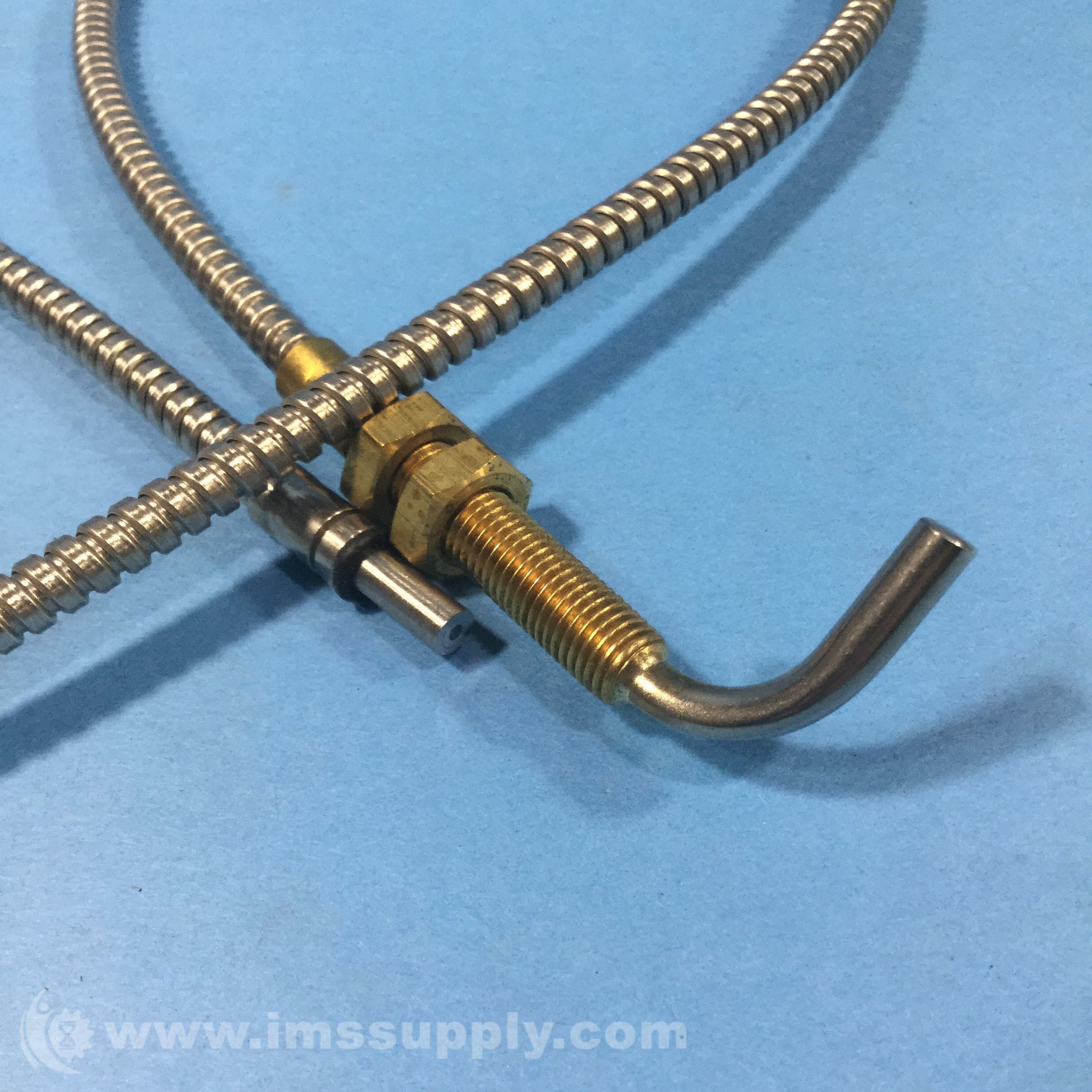

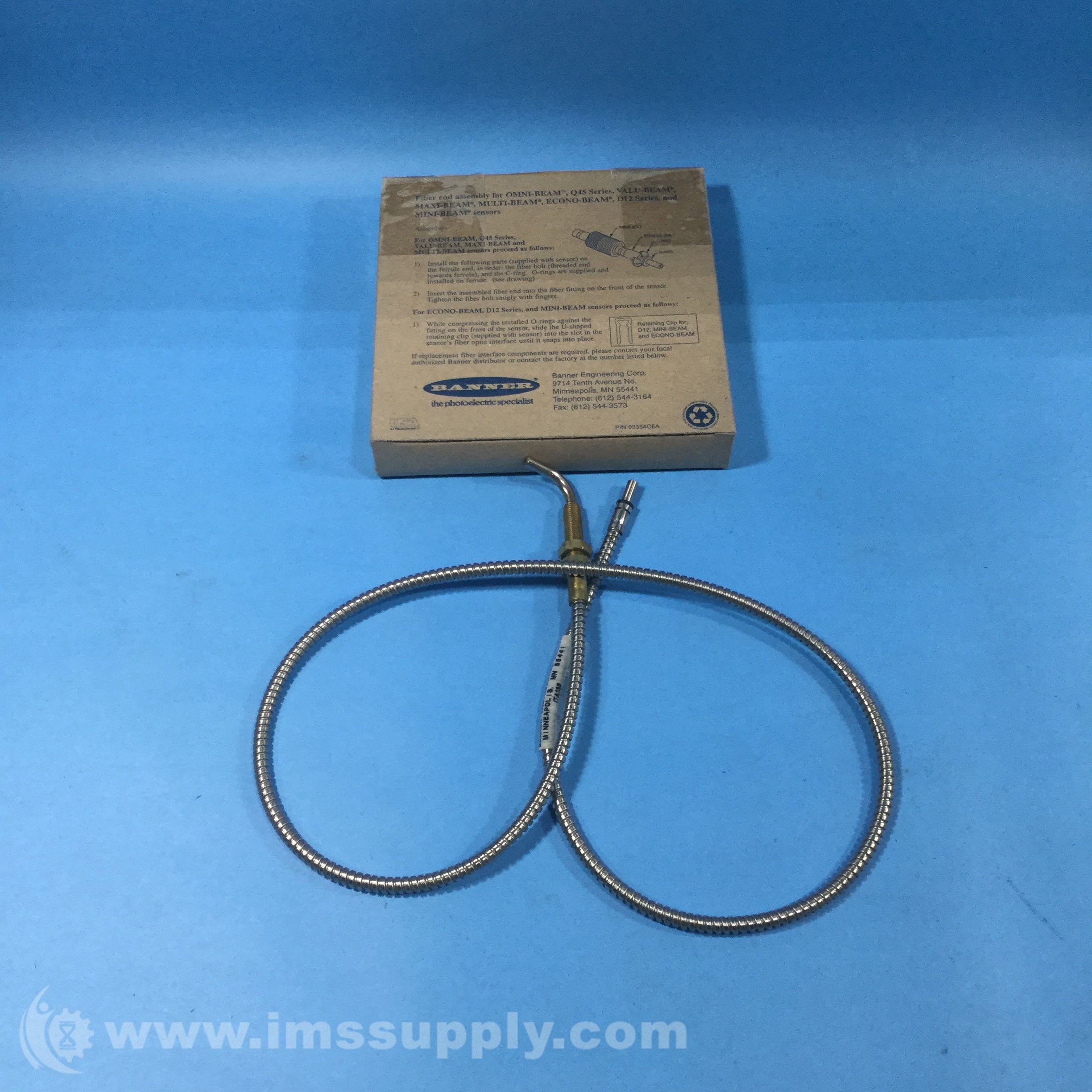

Banner ITA13S Fiber Optic Sensor
Individual, Threaded, Right Angled, 1.6 mm Diameter Glass Fiber Optic Sensor
Specifications
- Series: iTT/ iTR/ ITA
- Fiber Optic Type: Glass
- Sensing Mode (General): Opposed
- Sensing Mode (Detailed): Reflective
- Beam Exit: Right Angle
- Fiber Sheathing Material (Jacket): Stainless Steel Monocoil
- Fiber Length (m): 0.914
- Core Diameter (mm): 1.6
- Minimum Bend Radius (mm): 25
- Max Temp (C): 249
- Sensing End Material (Specific): Stainless Steel
- Fiber Sensing End Tip: Angle
- Termination Type: Glass Fiber Sensors
- Output Type: NPN
- Sensing Distance: 13 m
- Response Time: 2 ms
- Operating Voltage: 10-30 V DC
- Operating Temperature: -20 to 55 degrees C
- Housing Material: PBT
- Lens Material: PMMA
- Protection Rating: IP67/IP69K
