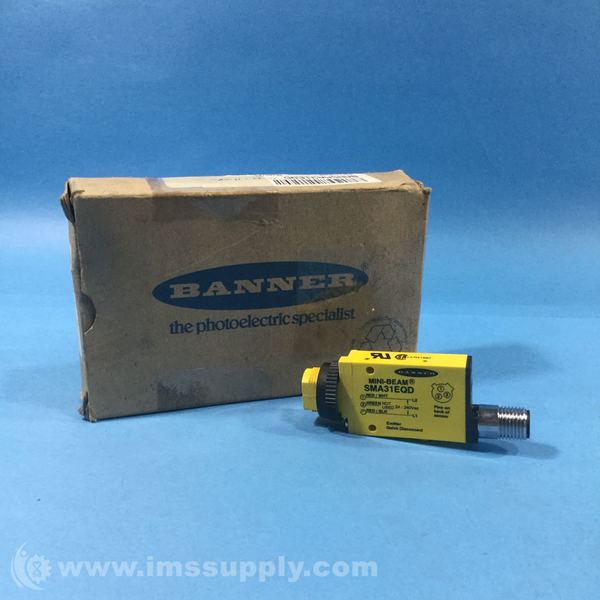

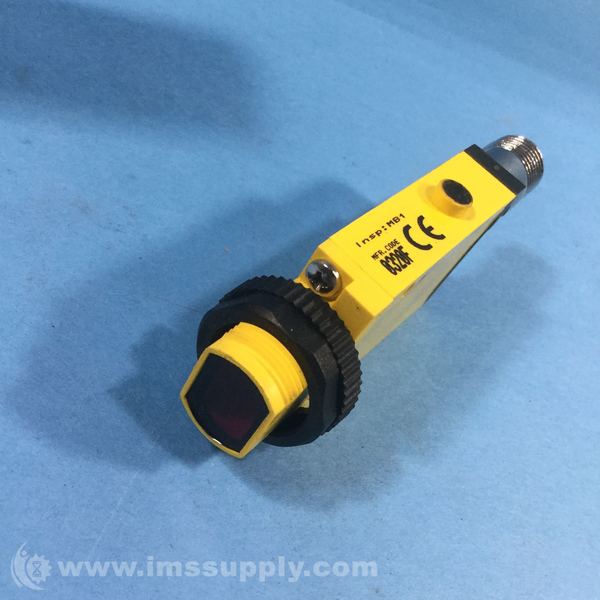

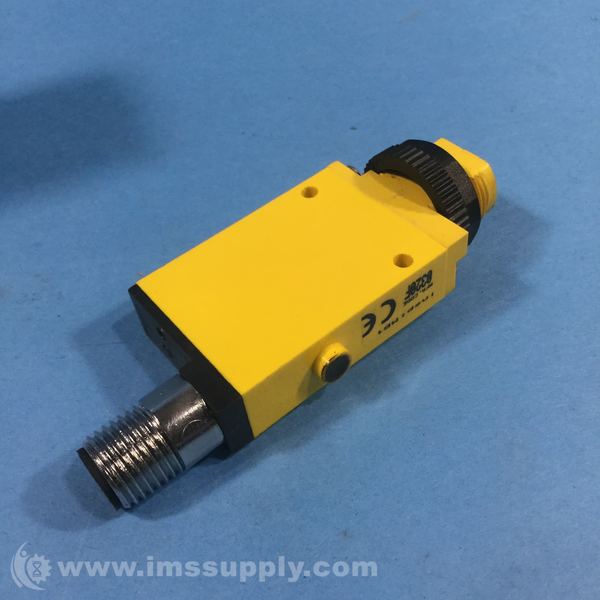

BANNER SMA31EQD MINI-BEAM EMITTER
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: SMA31EQD
IMS Product Code: 1845231
Packaging: Sold Individually
Description:
Banner SMA31EQD Mini-Beam Emitter
Mini-Beam Series Industry Standard Emitter Sensor
Specifications
- Power: AC
- Sensing Beam: Infrared LED
- IP Rating: IP67
- NEMA / UL Type Rating: NEMA 4X
- Supply Voltage: 24-240 V ac
- Sensing Mode (General): Opposed
- Sensing Mode (Detailed): Emitter
- Housing Style: Rectangular w/M18 Mount
- Primary Housing Material: Thermoplastic
- Max Sensing Distance (mm): 3000
- Connection: Integral QD
- Quick Disconnect Type: 1/2 in. (Micro)
- Min Op. Temperature (C): -20
- Max Op. Temp. (C): 70
- Repeatability (µs): 300
- Number of Pins: 3
- Max Op. Relative Humidity [%]: 90% @ 50°C
- Lens Material: Acrylic
- Adjustments: Potentiometer
- Indicator: LEDs
- Opposed Mode Emitter/Receiver: Emitter
- Feature: Encapsulated: Yes
- Feature: Quick Disconnect: Yes
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
