BROWNING H 22 MM SPLIT TAPER BUSHING
Quick Overview
Manufactured By: BROWNING
Manufacturer Part Number: H 22 MM
IMS Product Code: 2136500
Packaging: Sold Individually
Description:

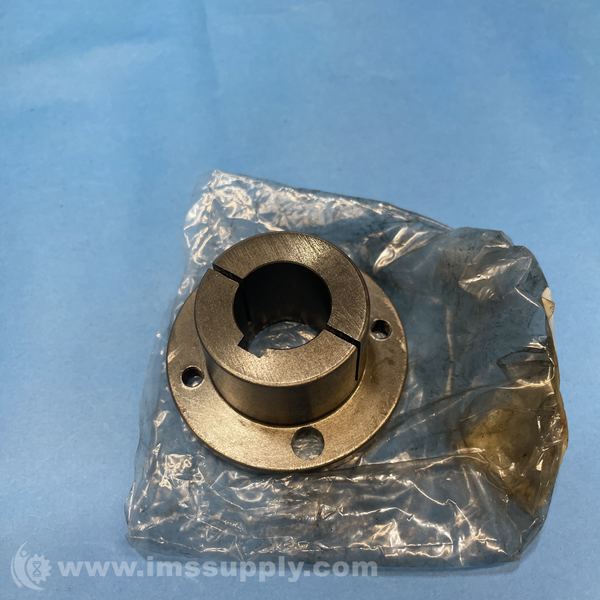

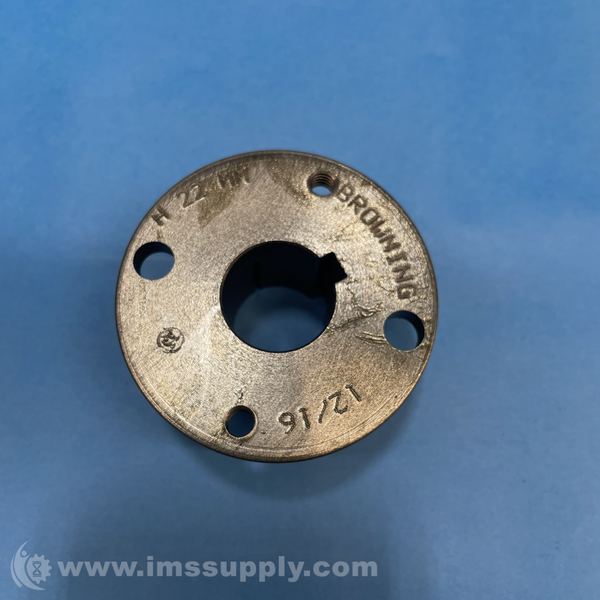

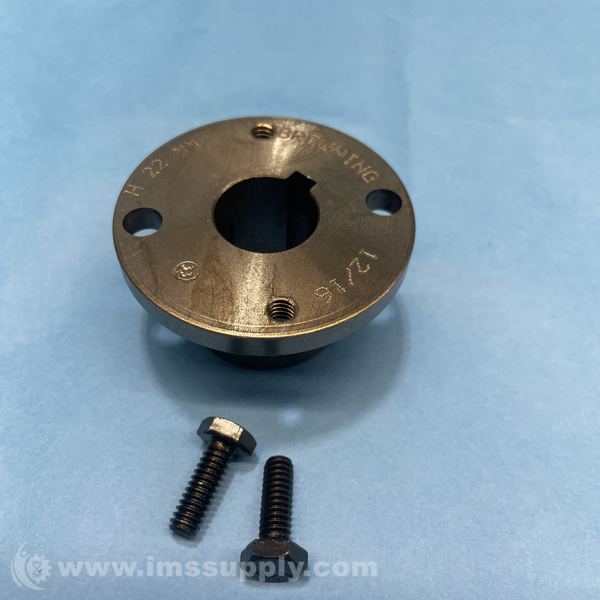

Browning H 22 MM Split Taper Bushing
Split Taper Bushing - H Bushing, 22 mm Bore, Steel Material
Specifications
- Bushing Size: H
- Bore Type: Finished Bore
- Keyway Size: 6 x 3
- Bore Diameter: 22 mm
- Material: Steel
- Flange Outside Diameter: 2.5000 in
- Flange Thickness: 1/4 in
- Flange Type: Solid Flange
- Length Through Bore: 1.2500 in
- Barrel Diameter Large End: 1-5/8 in
- Screw Torque: 95 in
- Barrel Diameter Small End: 1.57 in
- Bolt Circle Diameter: 2 in
- Number Of Bolt Holes: 2
- Screw Thread Size: 1/4 in
- Screw Length: 3/4 in
- Mounting Type: Conventional
- Weight: 0.71

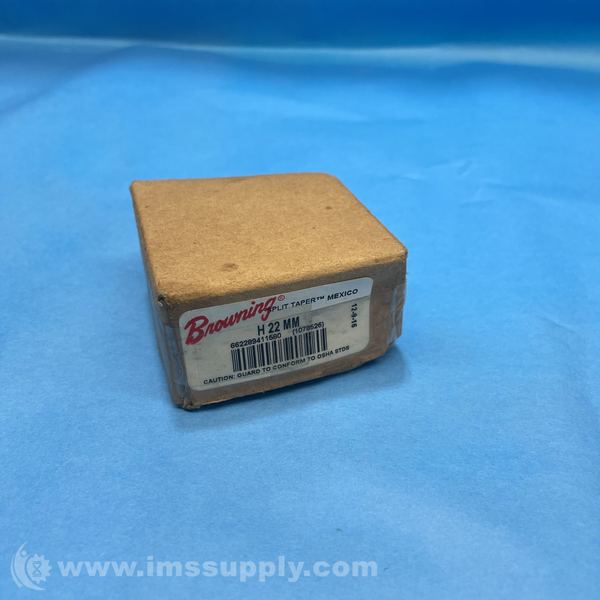

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, October 20, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
