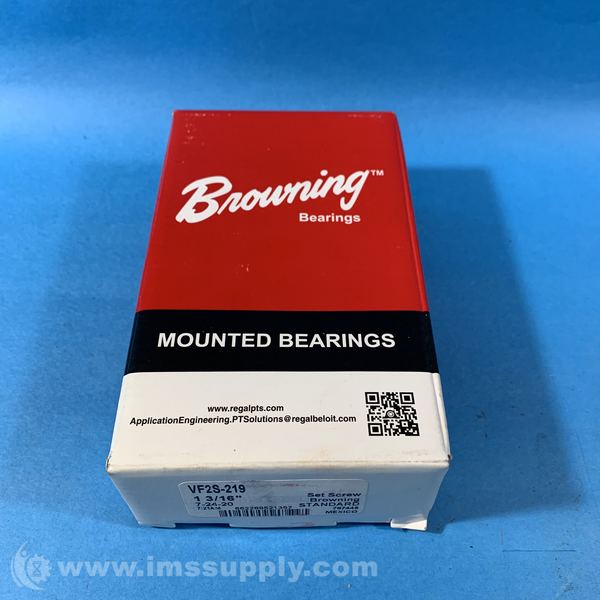

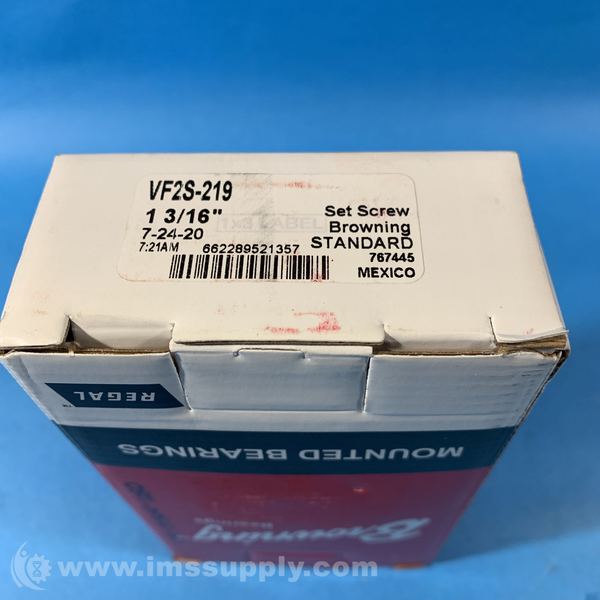

BROWNING VF2S-219 FLANGE MOUNTED BALL BEARING
Quick Overview
Manufactured By: BROWNING
Manufacturer Part Number: VF2S-219
IMS Product Code: 1923773
Packaging: Sold Individually
Description:
Browning VF2S-219 Flange Mounted Ball Bearing
Two-Bolt Flange Ball Bearing Unit with 1-3/16 in Bore, Cast Iron Housing, Set Screw Locking, Non-Expansion Bearing
Specifications
- Bore Diameter: 1-3/16 in
- Housing Material: Cast Iron
- Duty Type: Standard Duty
- Locking Device: Set Screw
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Single Lip Contact Seal with Flinger
- Bearing Material: 52100 Bearing Steel, Black Oxided Inner
- Radial Dynamic Load Capacity: 4381 lbf
- Radial Static Load Capacity: 2567 lbf
- Operating Temperature Range: -20 to 200 degrees F
- Max Operating Temperature: 200 degrees F
- Max Rpm: 4500 rpm
- Series: VF2S
- Weight: 1.92 lbs
- Mounting Type: 2-Bolt Flange
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 6 hours and 8 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 6 hours and 8 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 8 minutes.
