BROWNING VF4E-224 FOUR-BOLT FLANGE BEARING
Quick Overview
Manufactured By: BROWNING
Manufacturer Part Number: VF4E-224
IMS Product Code: 2147778
Packaging: Sold Individually
Description:

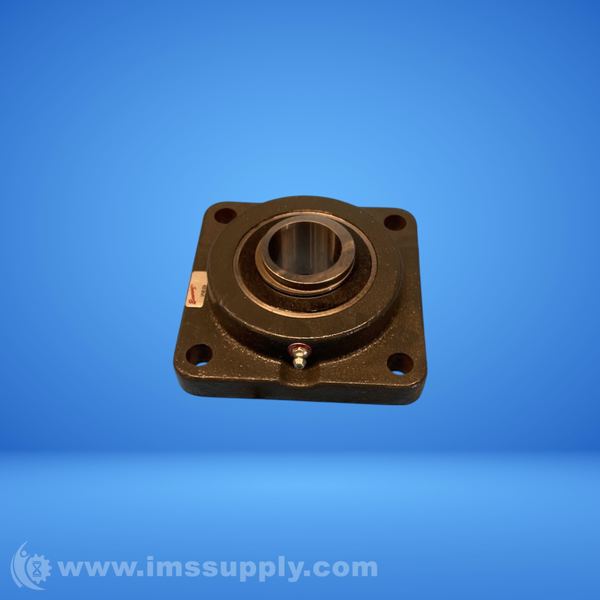

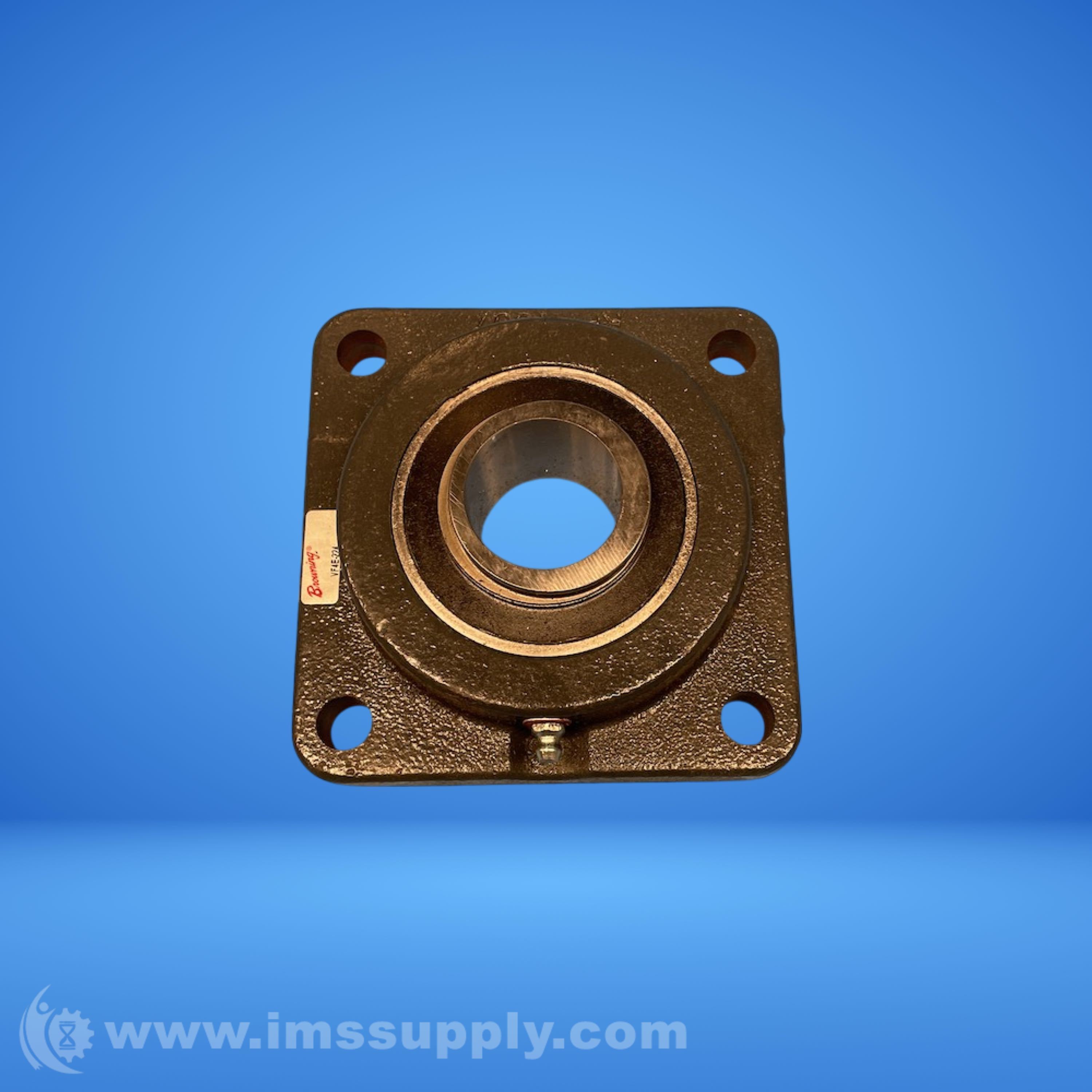

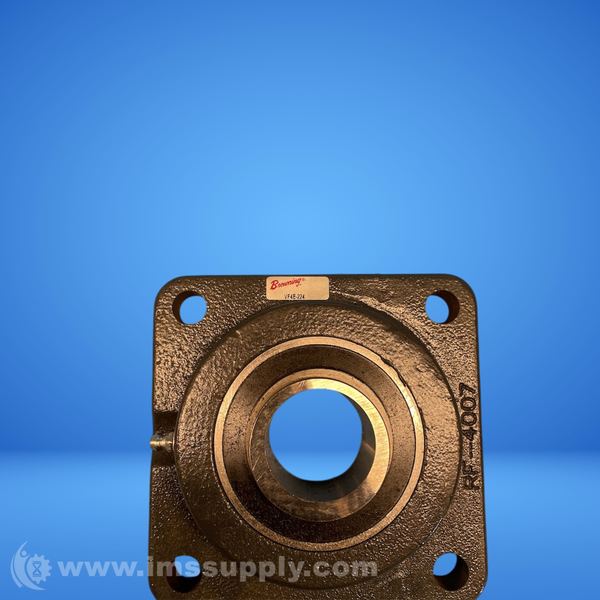

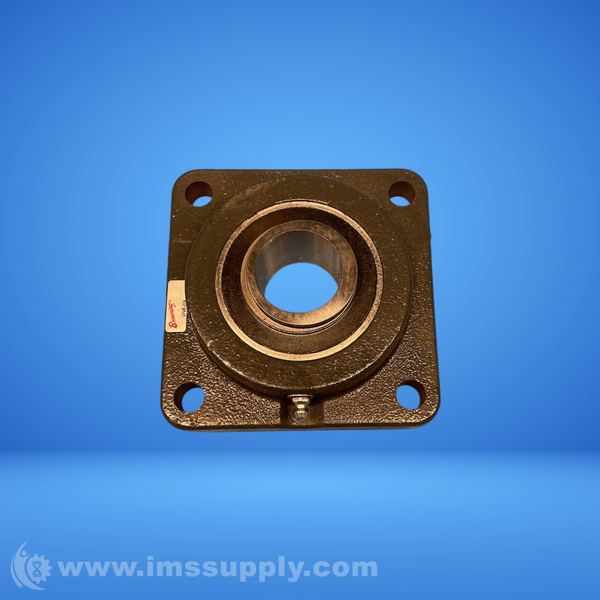

Browning VF4E-224 Four-Bolt Flange Bearing
Four-bolt flange ball bearing unit with 1-1/2 inch bore, cast iron housing, eccentric collar locking, and single lip contact seal with flinger.
Specifications
- Bore Diameter: 1-1/2 in
- Housing Material: Cast Iron
- Duty Type: Standard Duty
- Locking Device: Eccentric Collar
- Seal Type: Single Lip Contact Seal with Flinger
- Overall Length: 5.1250 in
- Overall Height: 2.3130 in
- Overall Width: 5.1250 in
- Bearing Material: 52100 Bearing Steel, Black Oxided Inner
- Radial Dynamic Load Capacity: 7340 lbf
- Radial Static Load Capacity: 4467 lbf
- Max Operating Temperature: 200 °F
- Bolt Size: 0.5000 in
- Max Rpm: 3500 rpm
- Series: VF4E
- Weight: 5.83 lbs
