BUNTING EP040506 PLAIN SLEEVE BEARING
Quick Overview
Manufactured By: BUNTING
Manufacturer Part Number: EP040506
IMS Product Code: 1734864
Packaging: Pack of 2
Description:

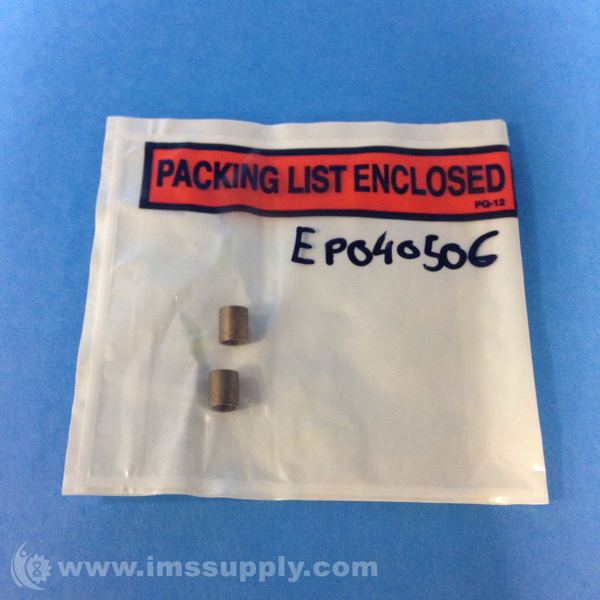

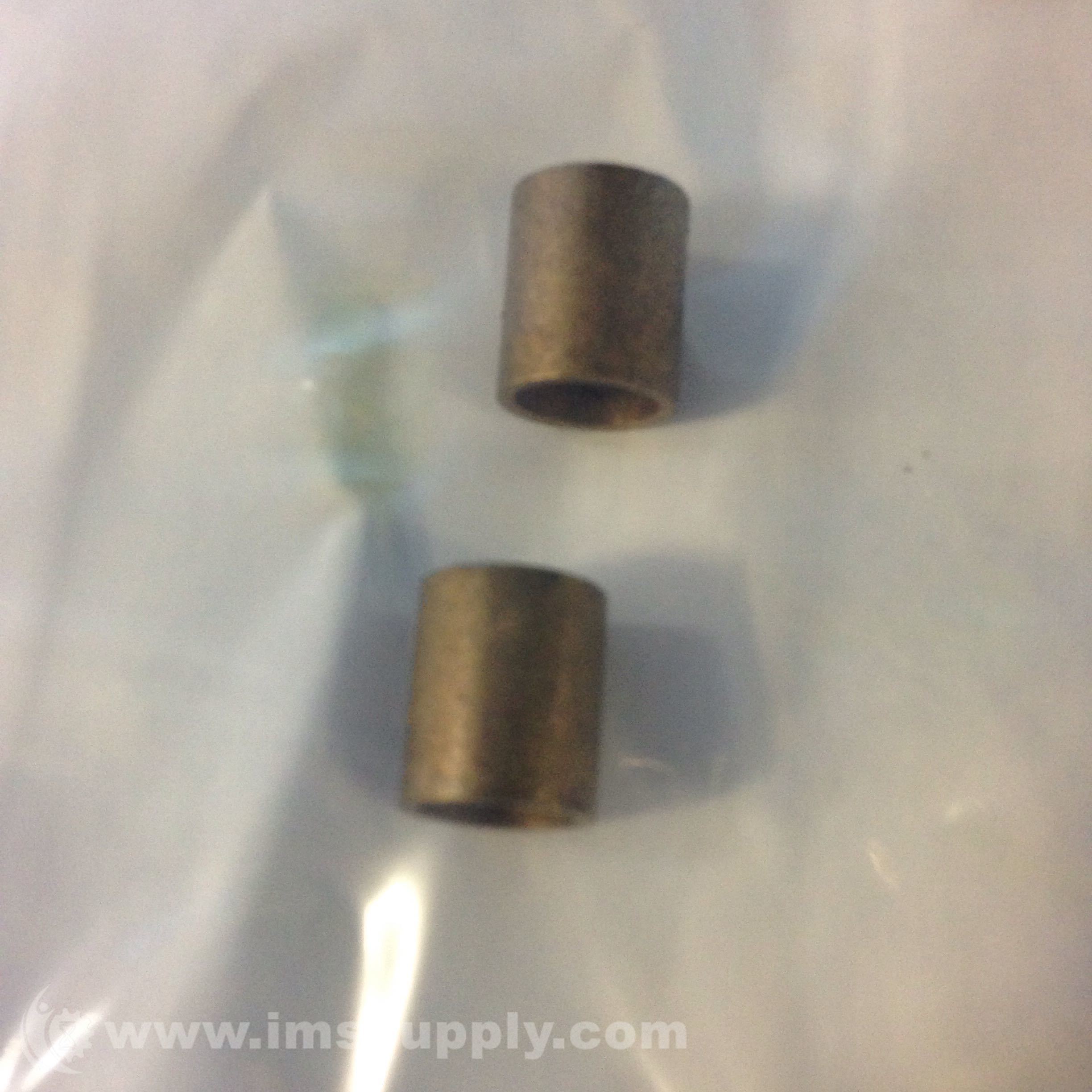

Bunting EP040506 Plain Sleeve Bearing
Plain Sleeve Bearing made of Powdered Metal (SAE 841 Bronze), with 0.2500 in ID, 0.3125 in OD, and 0.3750 in Length.
Specifications
- Bearing Material: Powdered Metal
- Material Specification: SAE 841 Bronze
- Bore Diameter: 0.2500 in
- Outside Diameter: 0.3125 in
- Overall Length: 0.3750 in
- I.D. Min: 0.2510 in
- I.D. Max: 0.2520 in
- O.D. Min: 0.3145 in
- O.D. Max: 0.3155 in
- Standards Met: ASTM B438 Grade 1 Type II
- Maximum PV Value: 50000
- Maximum P Value: 2000
- Max V Value: 1200
- Operating Temperature Range: 10 to 220 degrees F
