CUTLER HAMMER E50SA6P12 LIMIT SWITCH
Quick Overview
Manufactured By: CUTLER HAMMER
Manufacturer Part Number: E50SA6P12
IMS Product Code: 1791836
Packaging: Sold Individually
Description:

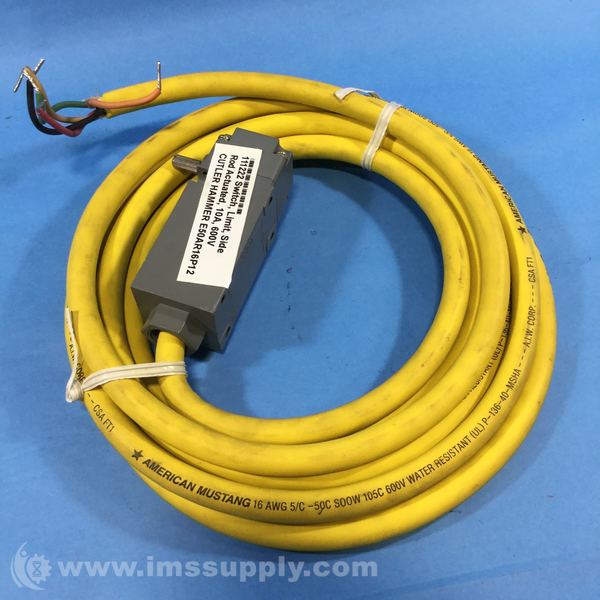

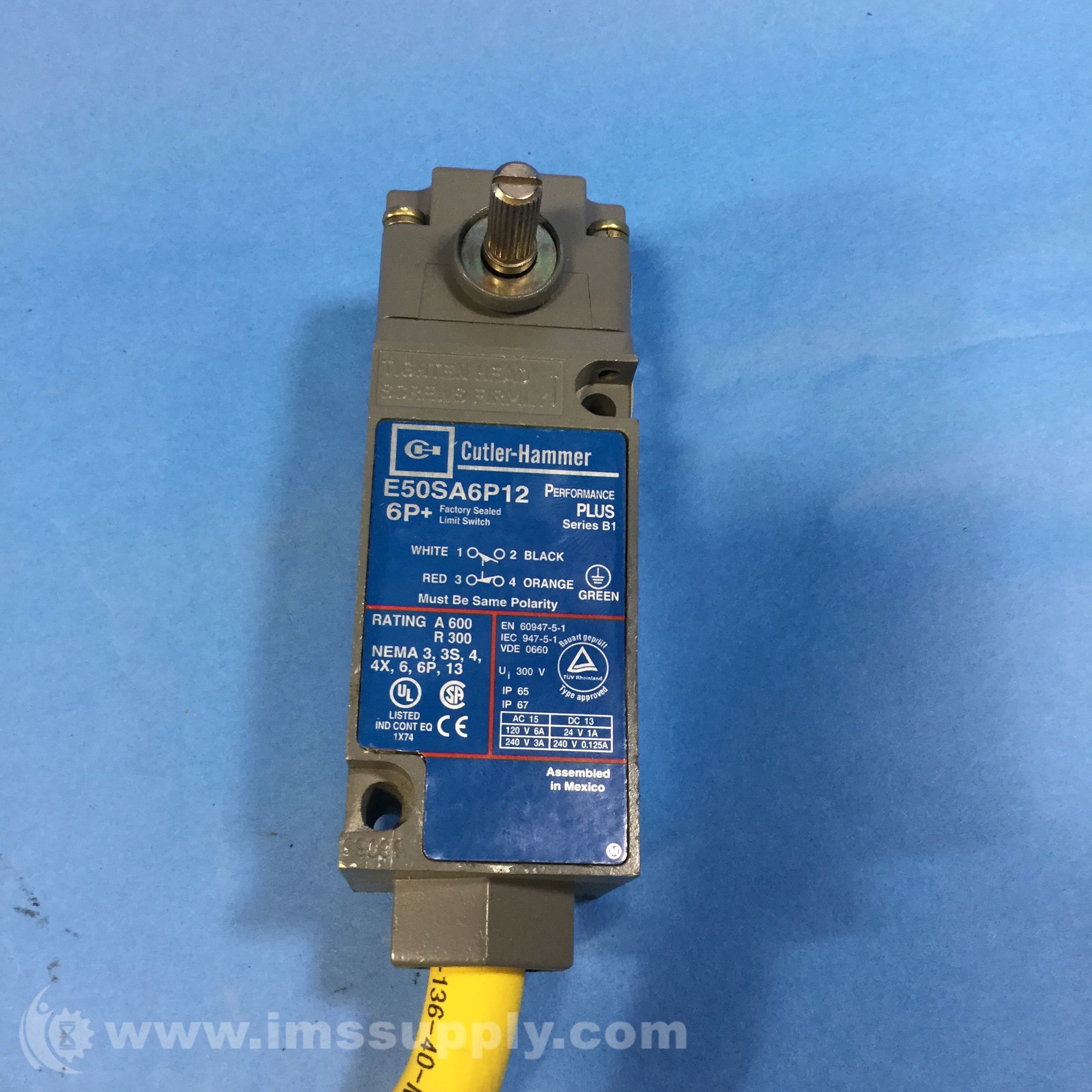

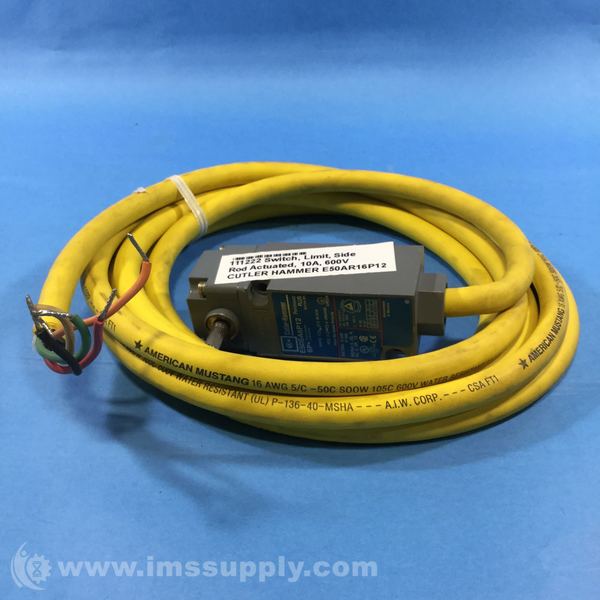

Cutler Hammer E50SA6P12 Limit Switch
Heavy-duty factory-sealed limit switch with 12 ft SOOW-A cable and die-cast zinc enclosure.
Specifications
- Series: E50SA
- Amperage: 10A
- Voltage: 600V
- Poles: 1
- NEMA Rating: NEMA 1/2/3/3S/4/4X/6/6P/13
- Duty Rating: Heavy Duty
- Contact: Die Cast Zinc
- Enclosure Type: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13
- IP Rating: IP67, IP69K
- Current Rating: 10A at 240Vac, 1A at 250Vdc
- Cable Length: 12 Ft. (3.7m)
- Cable Type: SOOW-A
- Switch Configuration: 1NO-1NC
- Operating Temperature: -29 to 221 degrees F (-34 to 105 degrees C)
- Enclosure Material: Die cast zinc
- Product Height: 3.58 in
- Product Length Depth: 1.54 in
- Product Width: 1.58 in
- Product Weight: 2.1188 lb
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
