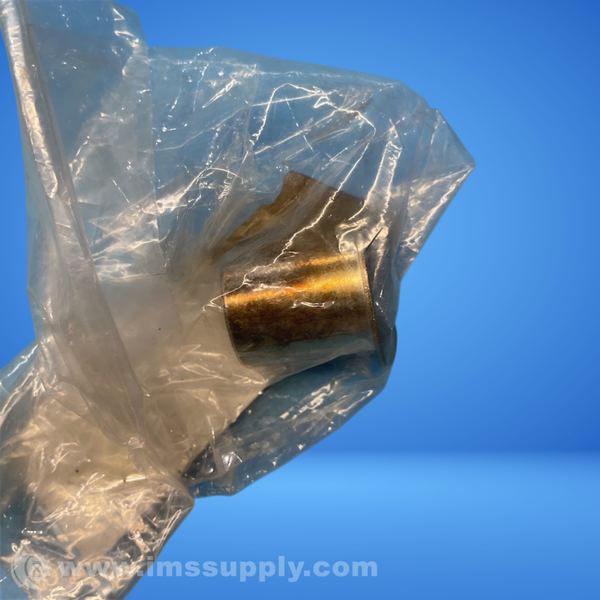

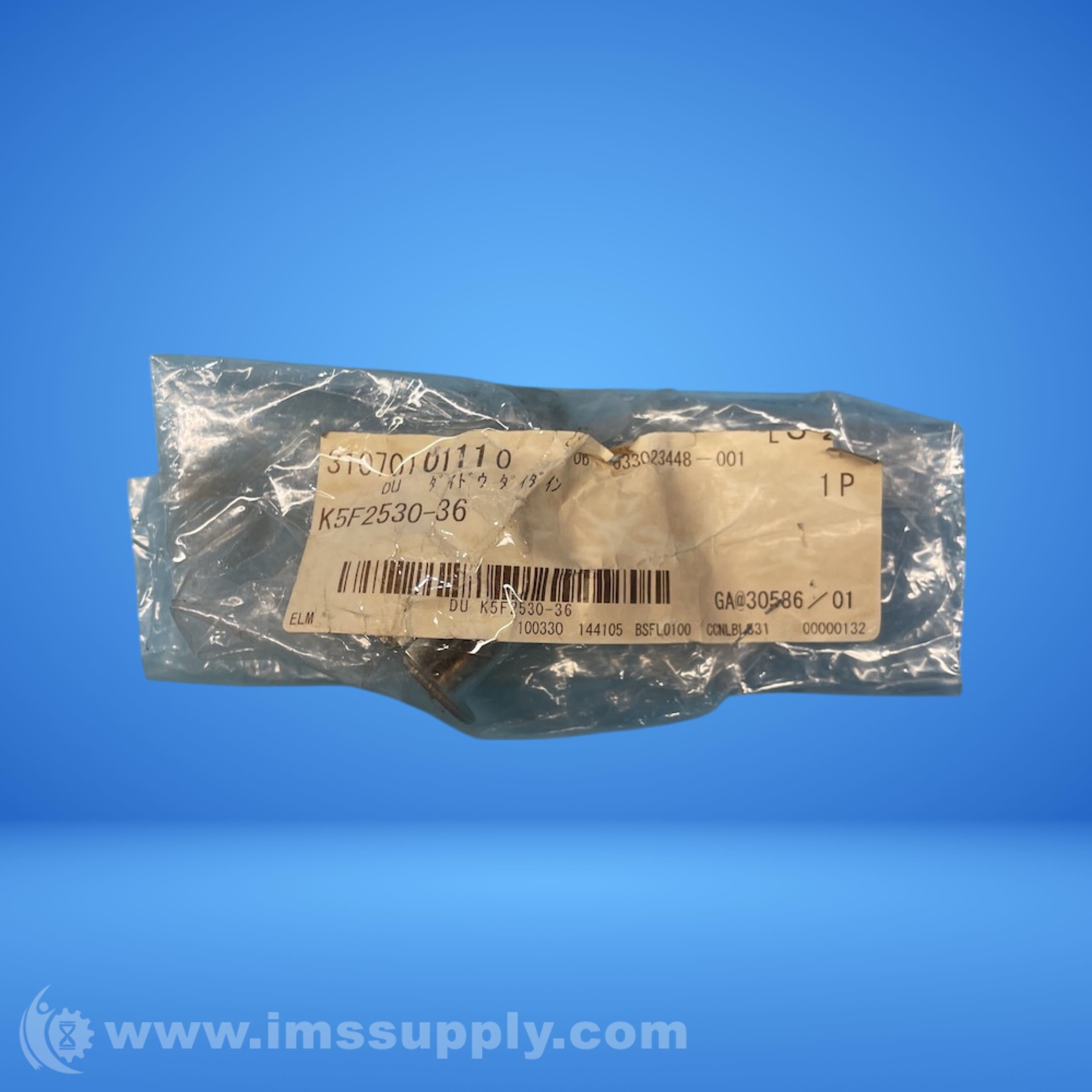

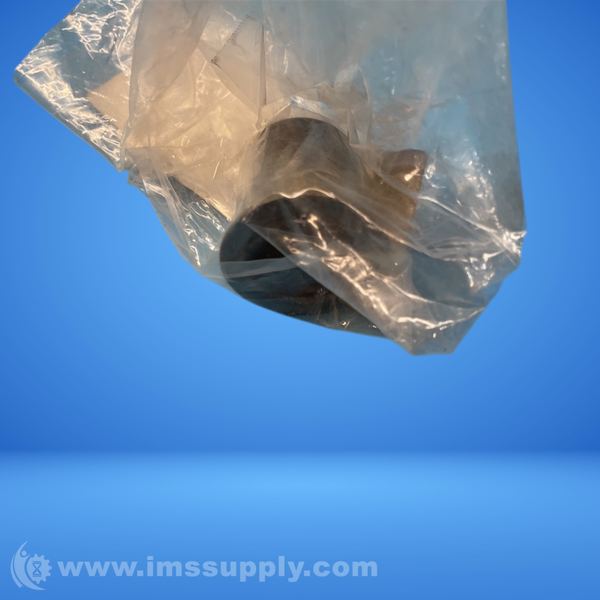

DAIDO METAL K5F2530-36 FLANGED BEARING
Quick Overview
Manufactured By: DAIDO METAL
Manufacturer Part Number: K5F2530-36
IMS Product Code: 2125765
Packaging: Sold Individually
Description:
Daido Metal K5F2530-36 Flanged Bearing
Flanged linear plain bearing, steel-backed with PTFE layer, metric dimensions, DDK05 material.
Specifications
- Backing Material: Steel/Bronze
- Bearing Material: PTFE w/ Special Fillers
- Bore Diameter: 25 mm
- Bushing Type: Flanged
- Construction Type: Metal Polymer
- Finish Coating: Sn (Tin Flashing)
- Flange Diameter: 36 mm
- Inside Diameter: 25 mm
- Maximum PV Value: 49300 psi x fpm (dry), 290000 psi x fpm (lubricated)
- Max Pressure: 44,100 psi (static)
- Max V Value: 500 fpm (dry), 2,000 fpm (lubricated)
- Operating Temperature Range: -328°F to +536 °F
- Outside Diameter: 28 mm
- Overall Length: 30 mm
- Sleeve Bearing Type: Flange Sleeve
- Weight: 32.8 g
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
