DAIDO K5B11050 PLAIN SLEEVE BEARING
Quick Overview
Manufactured By: DAIDO
Manufacturer Part Number: K5B11050
IMS Product Code: 2144335
Packaging: Sold Individually
Description:

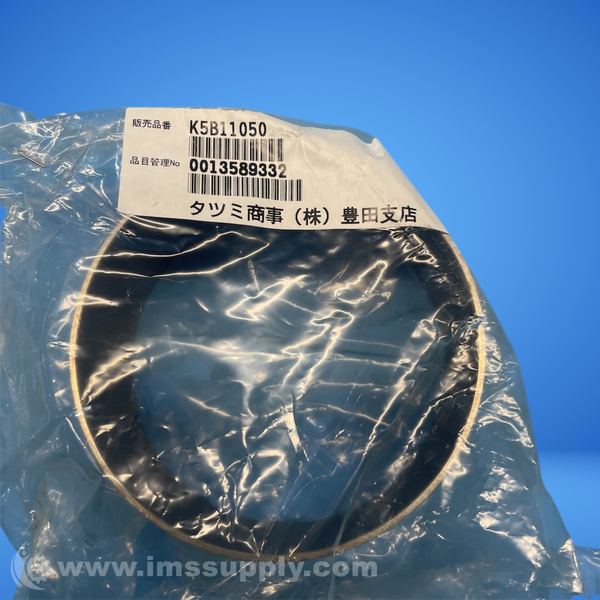

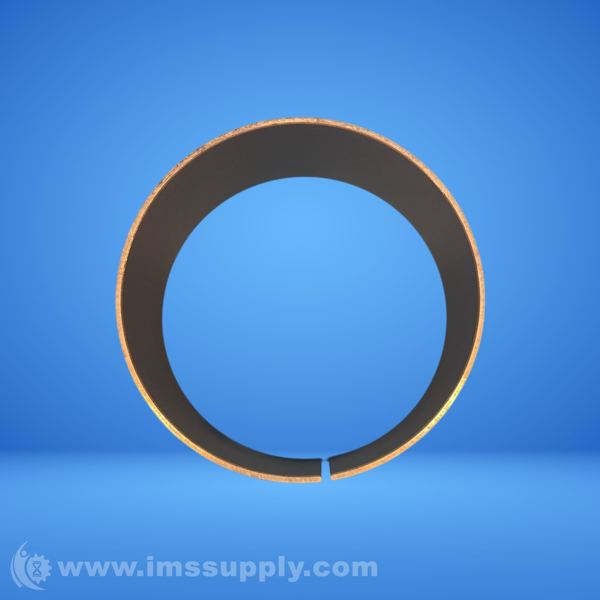

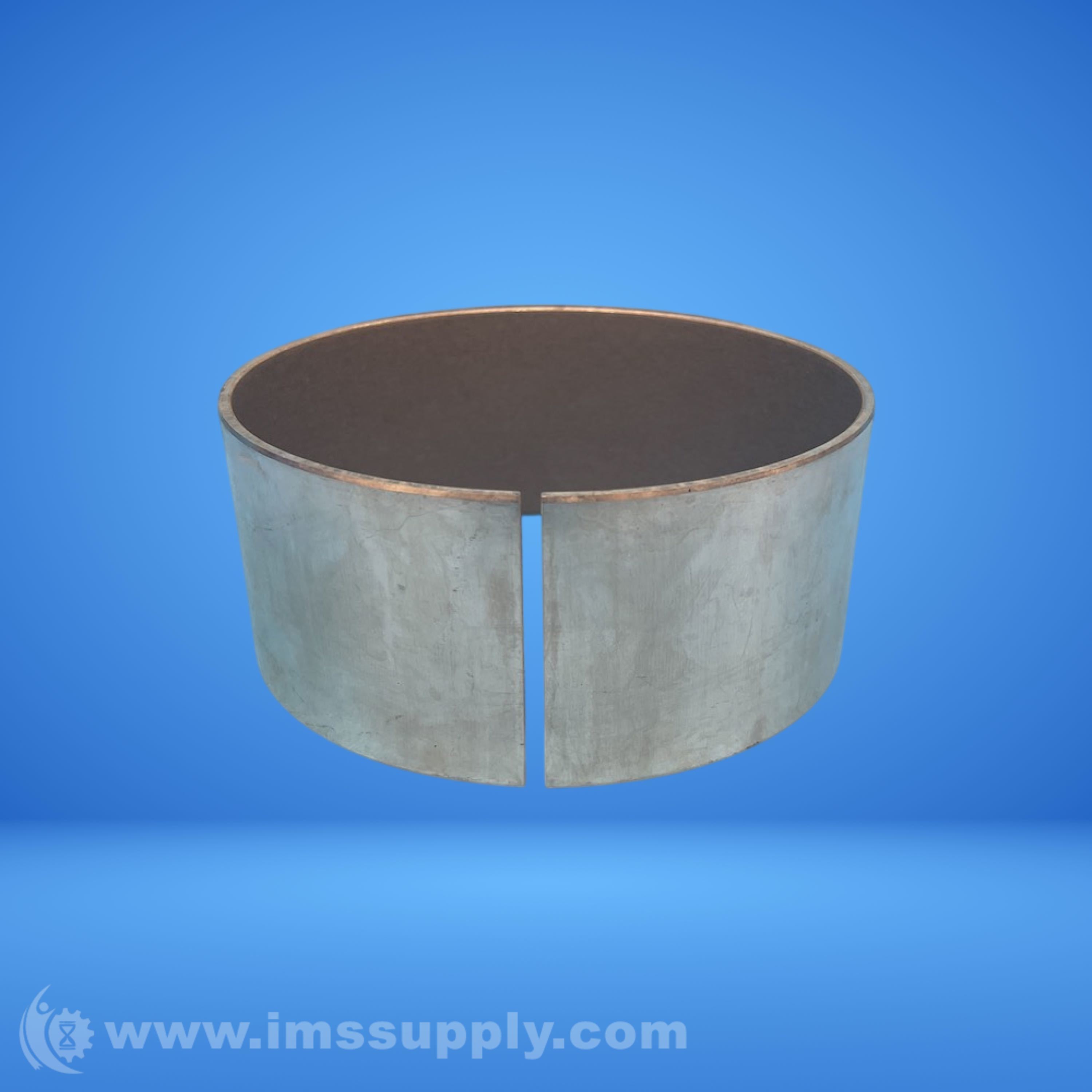

DAIDO K5B11050 Plain Sleeve Bearing
A plain sleeve bearing made of DDK05 material with a steel/bronze backing and PTFE bearing material.
Specifications
- Bushing Type: Plain Sleeve
- Bushing Material: DDK05
- Inside Diameter: 110 mm
- Overall Length: 50 mm
- Construction Type: Metal Polymer
- Finish Coating: Sn (Tin Flashing)
- Maximum PV Value: 290000 psi x fpm (lubricated), 49300 psi x fpm (dry)
- Operating Temperature Range: -328°F to +536 °F
- Backing Material: Steel/Bronze
- Bearing Material: PTFE w/ Special Fillers
- Bore Diameter: 110 mm
- Outside Diameter: 115 mm
- Max Pressure: 44,100 psi (static)
- Max V Value: 2,000 fpm (lubricated), 500 fpm (dry)
- Weight: 380 g
