DATAFORTH DSCA31-14C ISOLATED V INPUT MODULE
Quick Overview
Manufactured By: DATAFORTH
Manufacturer Part Number: DSCA31-14C
IMS Product Code: 1772673
Packaging: Sold Individually
Description:

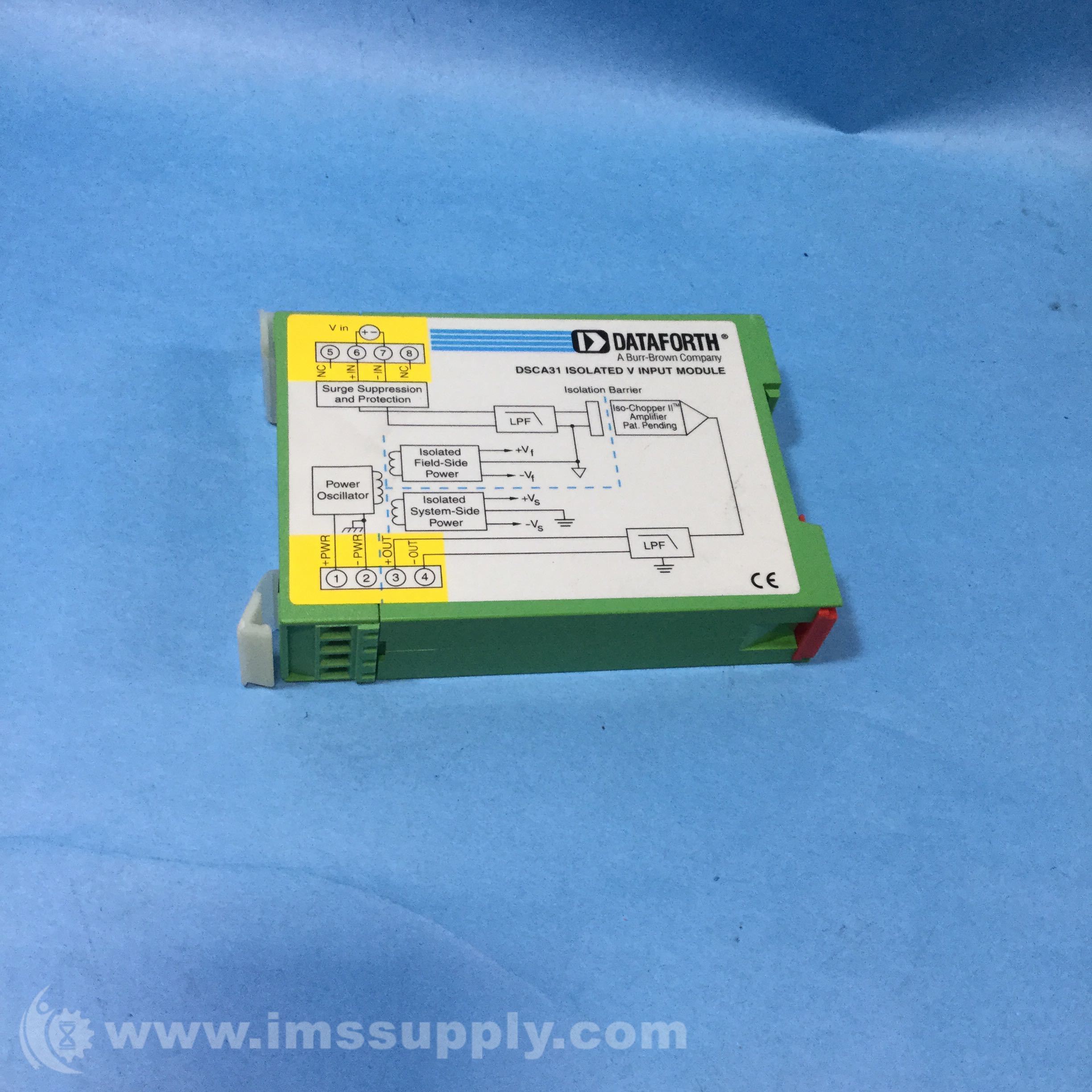

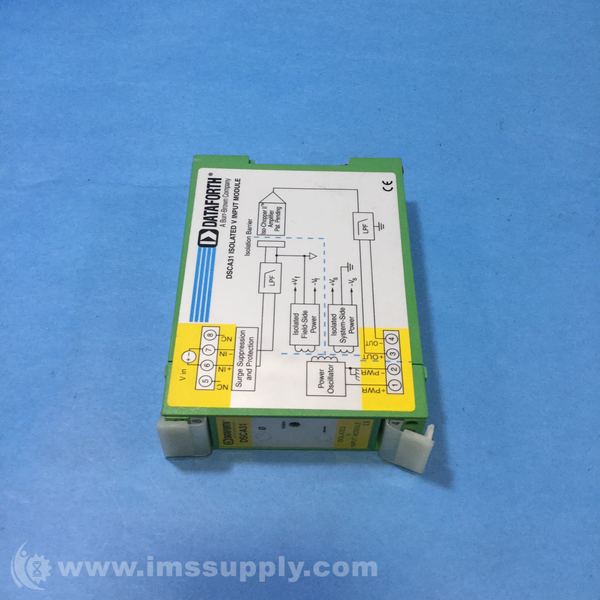

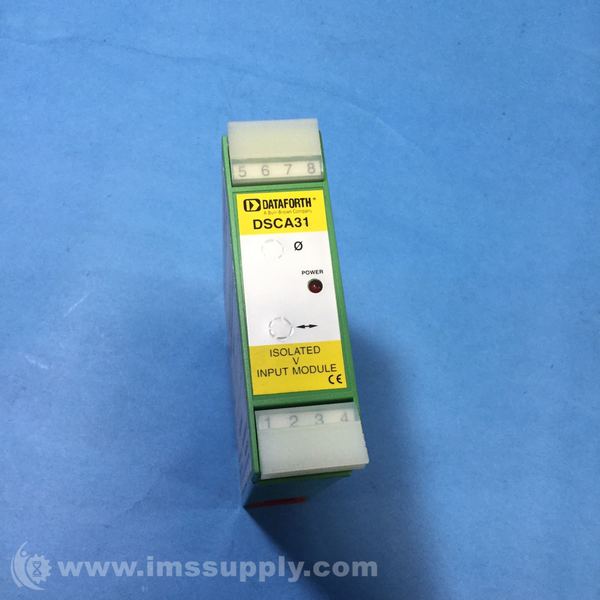

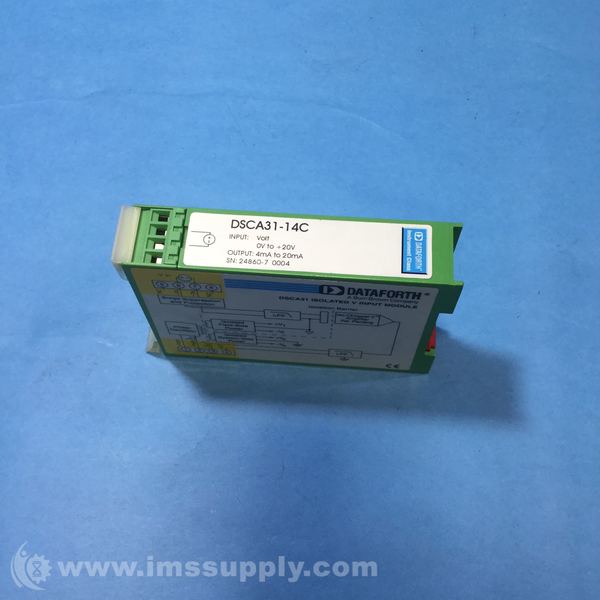

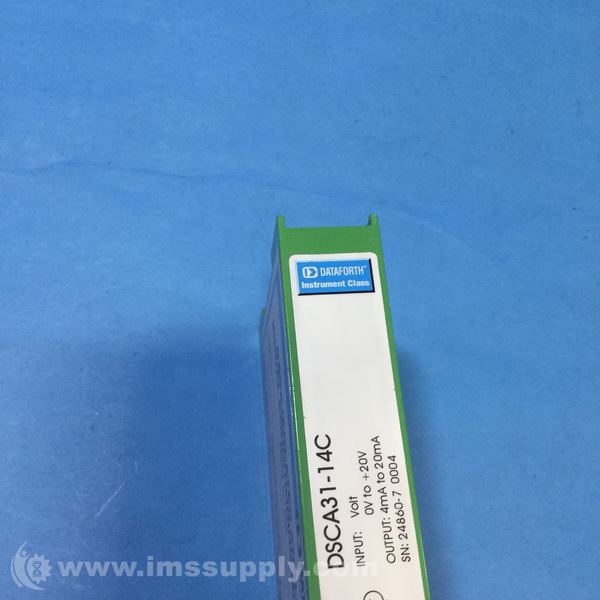

Dataforth DSCA31-14C Isolated V Input Module
Isolated voltage input signal conditioner with DIN rail mounting, 0 to +20V input range, and 4 to 20mA output range.
Specifications
- Input Range: 0 to +20 V
- Output Range: 4 to 20 mA
- Bandwidth: 3 Hz
- Mechanical Format: DIN rail
- Isolation Voltage: 1500 Vrms
- Isolation Type: Transformer 3-way
- Accuracy: ±0.03% Span
- Supply Voltage: 15 to 30 Vdc (+24V Nom)
- Input Voltage Withstand: 240 Vrms
- Gain/Offset Adjust: ±5%
- NMR (60 Hz) Rejection: 85dB at 60Hz, 80dB at 50Hz
- External I-to-V Resistor: N/A
- Output Control: Always enabled
- Output Resistance: <1 Ohm
- Dimensions: 2.95 x 0.89 x 4.13 inches
- Interface: 8 Pos terminal block
- Customization: yes
- Weight: 99 grams (3.49 ounces)
- Series: DSCA
- Input Type: Voltage
- Output Type: Current, Voltage
- Mounting Type: DIN Rail
- Termination Style: Screw Terminal
- Operating Temperature: -40°C ~ 80°C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
