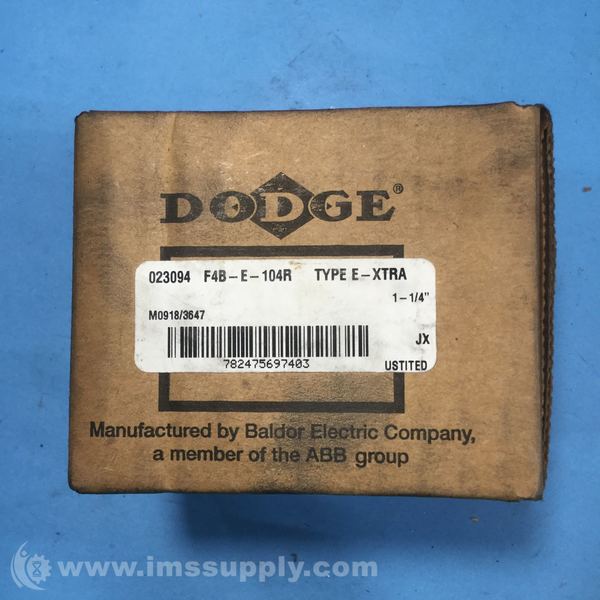

DODGE 023094 TAPERED ROLLER BEARING UNIT
Quick Overview
Manufactured By: DODGE
Manufacturer Part Number: 023094
IMS Product Code: 1843261
Packaging: Sold Individually
Description:
Dodge 023094 Tapered Roller Bearing Unit
Dodge Type E-Xtra four-bolt flange bearing unit with 1-1/4" bore diameter. Features a tapered roller bearing insert with set screw locking, cast iron housing, and non-expansion (fixed) design for heavy-duty shaft support in industrial applications.
Specifications
- Bearing Material: Cast Iron
- Bearing Type: Tapered Roller
- Bolt Center-to-Center Length: 2.88 in
- Bolt Diameter: 0.375 in
- Bore Diameter: 1-1/4 in
- Bore Length: 2.75 in
- Dynamic Load Capacity: 3450 lbf
- Expansion Capability: Non-expansion (fixed)
- Finish: Uncoated
- Flange Mounting Type: 4-Bolt Base
- Housing Construction: Solid
- Housing Material: Cast Iron
- Housing Type: Four-bolt flange
- Insert Material: Steel
- Locking Device: 65 deg Setscrew
- Lubrication Type: Grease
- Maximum Speed: 4490 rpm
- Overall Depth: 2.87 in
- Overall Height: 3-3/4 in
- Overall Length/Diameter: 3-3/4 in
- Seal Type: Triple-Lip Contact
- Shaft Attachment: Setscrew
- Shaft Diameter: 1.25 in
- Static Load Capacity: 15760 lbf
- Temperature Rating: -100 to 200 deg F
- Type: Non-Expansion Type E-Xtra Triple Lip
- Weight: 4.04 lbs

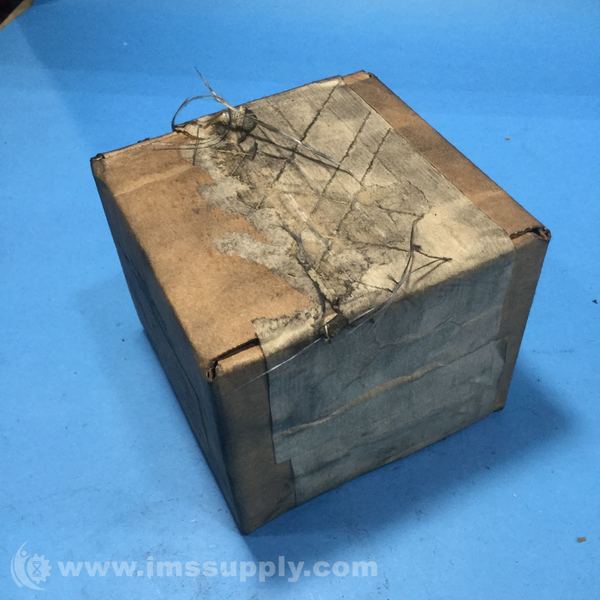

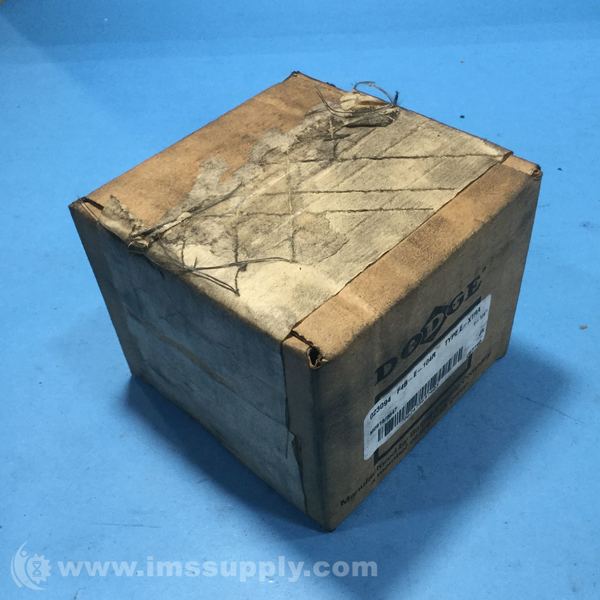

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
