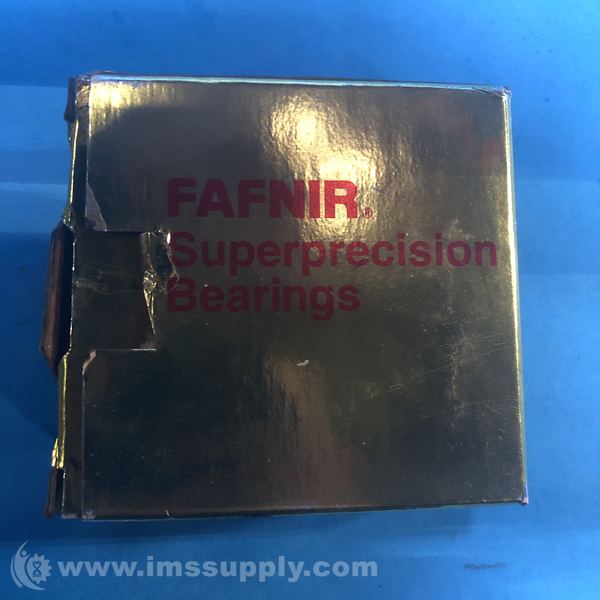

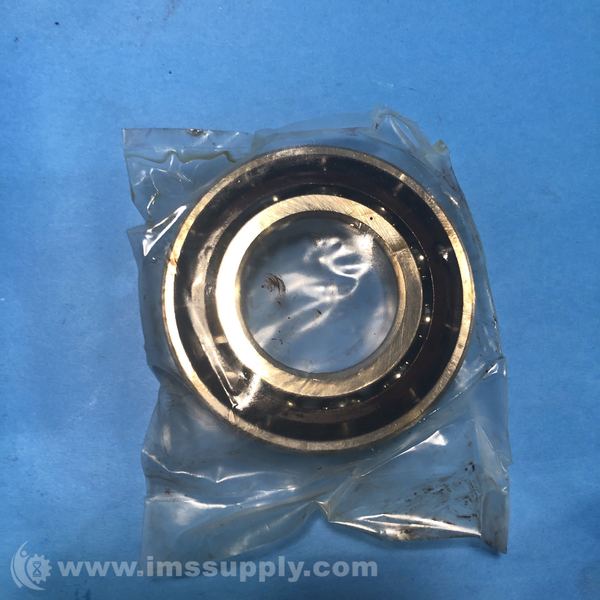

FAFNIR 2MM208W1 CR DUL BEARING 40 MM X 80 MM X 18 MM
Quick Overview
Manufactured By: FAFNIR
Manufacturer Part Number: 2MM208WI CR DUL
IMS Product Code: 1733902
Packaging: Sold Individually
Description:
Fafnir 2MM208W1 CR DUL Bearing 40 MM X 80 MM X 18 MM
Specifications:
- Bore Diameter: 40 mm
- Outside Diameter: 80 mm
- Overall Width: 18 mm
- Contact Angle: 15 °
- Internal Clearance: C0
- Not for Ball Screws
- Closure Type: Open
- Precision Rating: ABEC 7 (ISO Class 4)
- Radial Dynamic Load Capacity: 9300 lb
- Radial Static Load Capacity: 5340 lb
- Maximum RPM: 19300 RPM
- Cage Material: Phenolic Resin
- Finish/Coating: Uncoated
- Outer Ring Width: 18 mm
- Fillet Radius: 1 mm
- Standards Met: ABMA
