FAFNIR 2MM9108WI DUL ANGULAR CONTACT BEARING
Quick Overview
Manufactured By: FAFNIR
Manufacturer Part Number: 2MM9108WI DUL
IMS Product Code: 1908916
Packaging: Pack of Sets 2
Description:

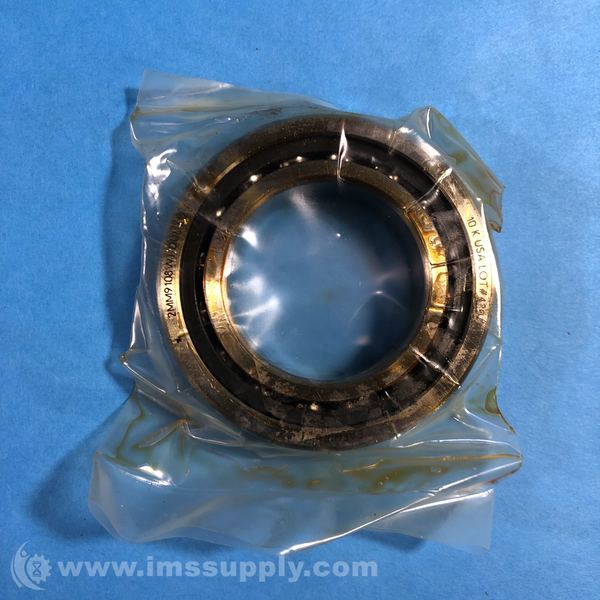

Fafnir 2MM9108WI DUL Angular Contact Bearing
Spindle & Precision Machine Tool Angular Contact Bearing - 40 mm Bore, 68 mm OD, 15 mm Width, 15 degrees Contact, Open
Specifications
- Bore Type: Straight
- Bore Diameter: 40 mm
- Outside Diameter: 68 mm
- Overall Width: 15 mm
- Closure Type: Open
- Snap Ring Included: Without Snap Ring
- Contact Angle: 15 degrees
- Ball Screw Application: Not for Ball Screws
- Internal Clearance: C0
- Precision Rating: ABEC 7 (ISO Class 4)
- Radial Dynamic Load Capacity: 4920 lbf
- Bearing Type: Spindle & Precision Machine Tool Angular Contact Bearings
- Radial Static Load Capacity: 3360 lbf
- Max Rpm: 19900 rpm
- Cage Material: Phenolic Resin
- Finish Coating: Uncoated
- Fillet Radius: 1 mm
- Series: 2MM9100WI
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
