FAFNIR 5202KDD ANGULAR CONTACT BEARING
Quick Overview
Manufactured By: FAFNIR
Manufacturer Part Number: 5202KDD
IMS Product Code: 1908860
Packaging: Pack of Sets 3
Sold Individually
Pack of Sets 3
Description:

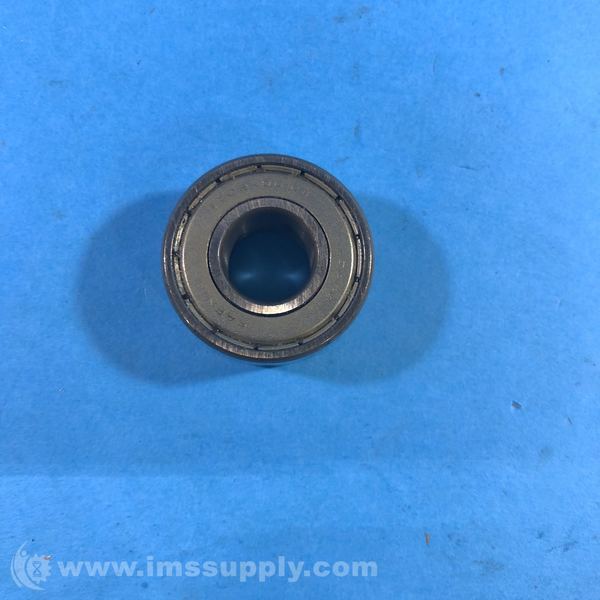

Fafnir 5202KDD Angular Contact Bearing
Double Row Angular Contact Bearing - 15 mm Bore, 35 mm OD, 0.6250 in Width, Open, 20 degrees Contact Angle, C0
Specifications
- Bore Type: Straight
- Bore Diameter: 15 mm
- Outside Diameter: 35 mm
- Overall Width: 0.6250 in
- Row Type: Double-Row Non-Fill Slot
- Closure Type: Open
- Snap Ring Included: Without Snap Ring
- Bearing Type: Angular Contact Bearings
- Contact Angle: 20 degrees
- Internal Clearance: C0
- Radial Dynamic Load Capacity: 3050 lbf
- Radial Static Load Capacity: 1600 lbf
- Cage Material: Steel
- Finish Coating: Uncoated
- Precision Rating: Not Rated
- Fillet Radius: 0.6 mm
- Series: 5200
- Weight: 0.16 lbs
- Material: Metal
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
