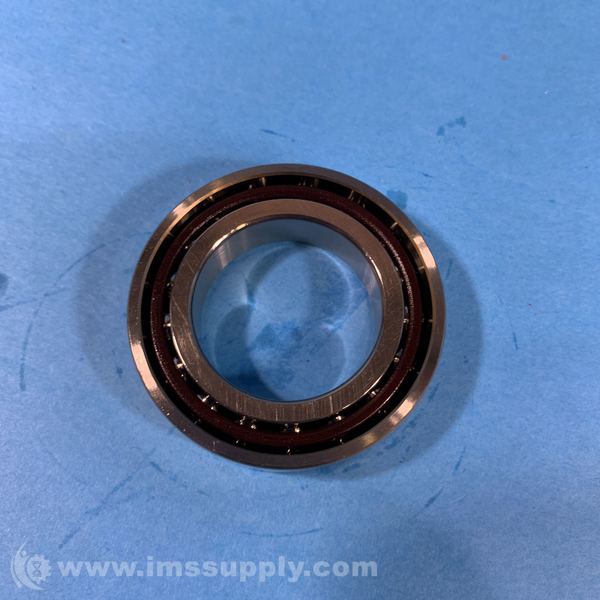

FAG B71905E.T.P4S.UL ANGULAR CONTACT BALL BEARING
Quick Overview
Manufactured By: FAG
Manufacturer Part Number: B71905E.T.P4S.UL
IMS Product Code: 1911482
Packaging: Sold Individually
Description:
Fag B71905E.T.P4S.UL Angular Contact Ball Bearing
Spindle bearing with 25° contact angle, adjusted in pairs or sets, restricted tolerances. Suitable for medium speed applications with high load carrying capacity and rigidity.
Specifications
- Bearing Material: Steel (Balls)
- Bearing Type: Standard OR relieved IR symmetrical
- Bore Type: Straight
- Cage Material: Phenolic Resin
- Closure Type: Open
- Contact Angle: 25 degrees
- Fillet Radius: 0.3 mm
- Finish Coating: Uncoated
- I.D.: 1 in (25 mm)
- Internal Clearance: C0
- Max Rpm: 45000 rpm
- O.D.: 42 mm
- Operating Temperature Range: -30 to +100°C
- Overall Width: 9 mm
- Precision Rating: ABEC 7 (ISO Class 4), ABEC 9 (ISO Class 2)
- Product Type: Spindle & Precision Machine Tool Angular Contact Bearings
- Radial Dynamic Load Capacity: 7.8 kN
- Radial Static Load Capacity: 5.5 kN
- Series: 719
- Snap Ring Included: Without Snap Ring
- Type: Angular contact ball bearing
- Cage Type: TB - Hard Fiber Cage
- Axial Internal Clearance / Preload: UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
- Lubrication: Standard Lubrication
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 6 minutes.
