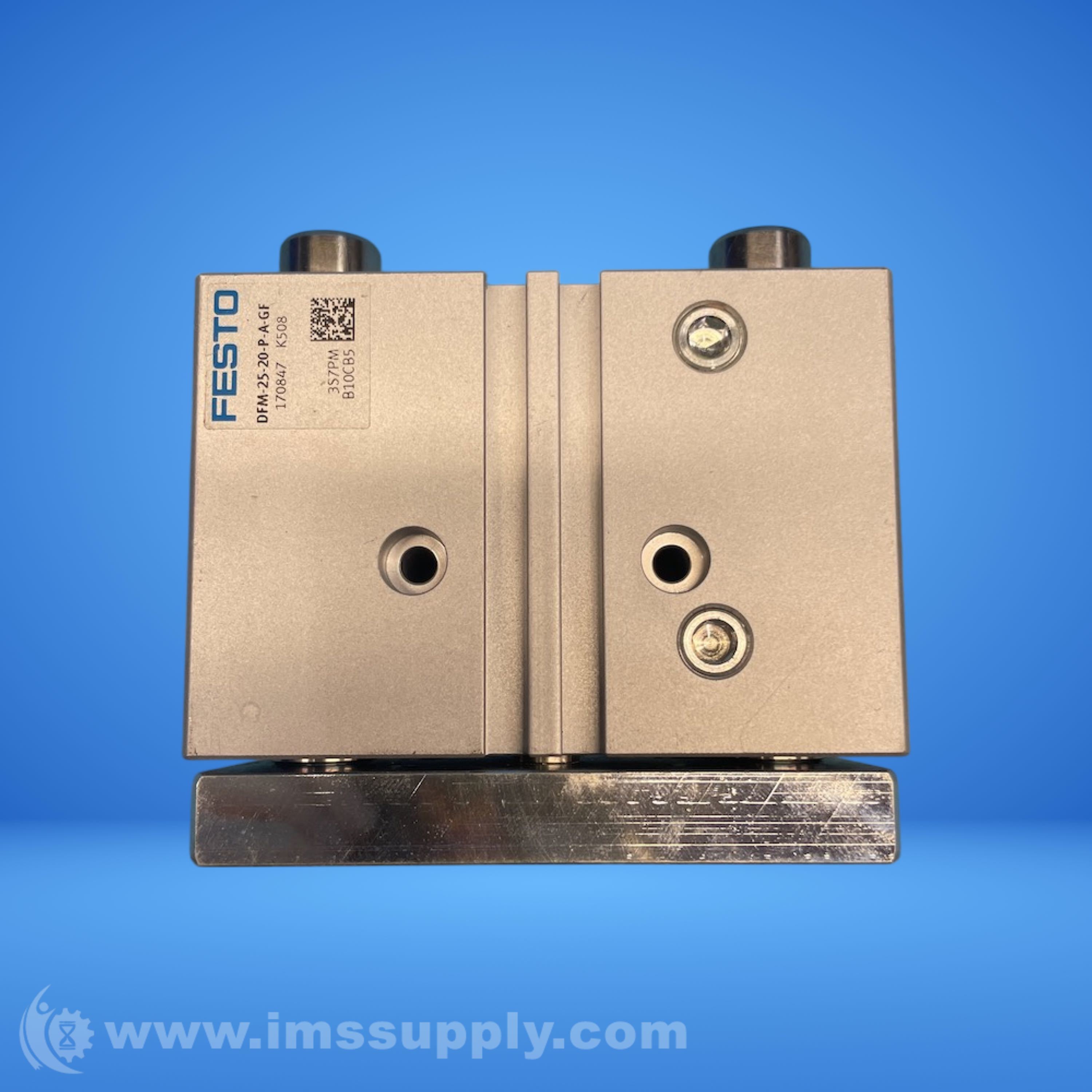

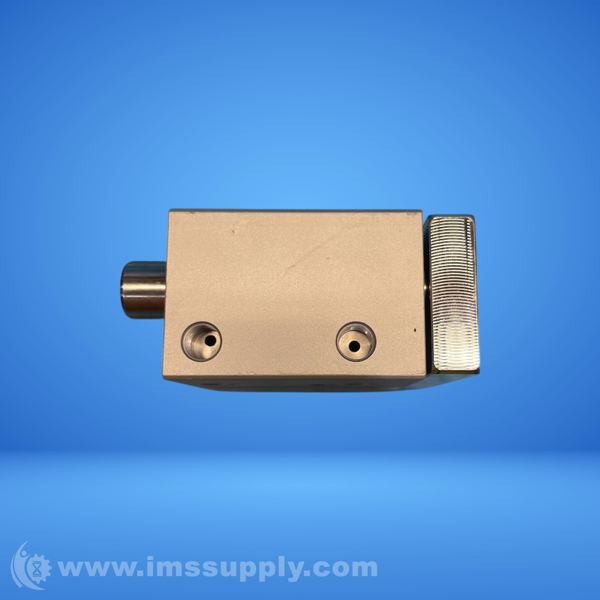

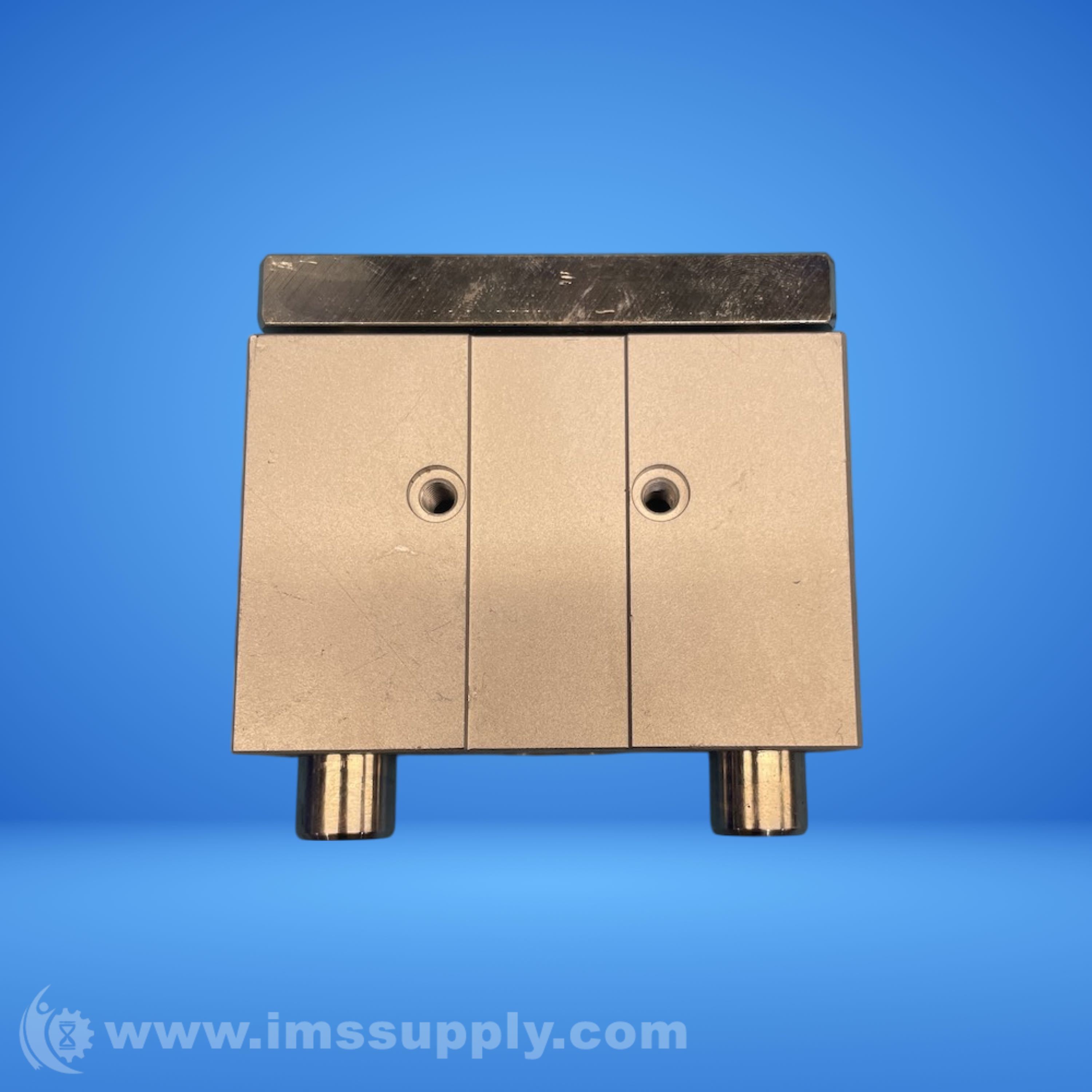

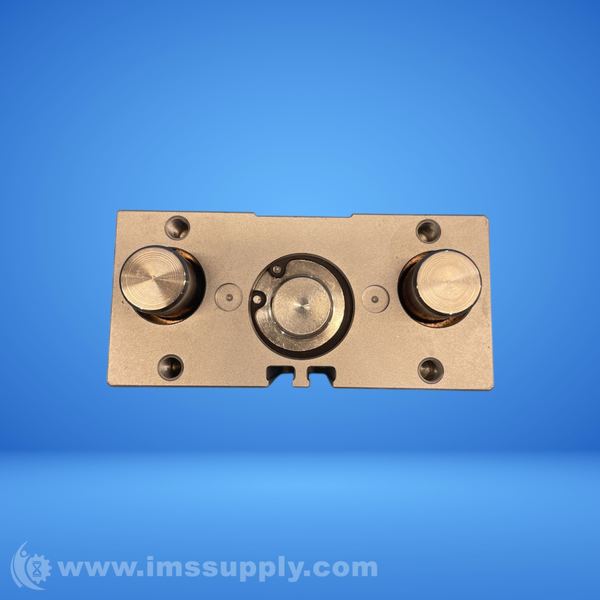

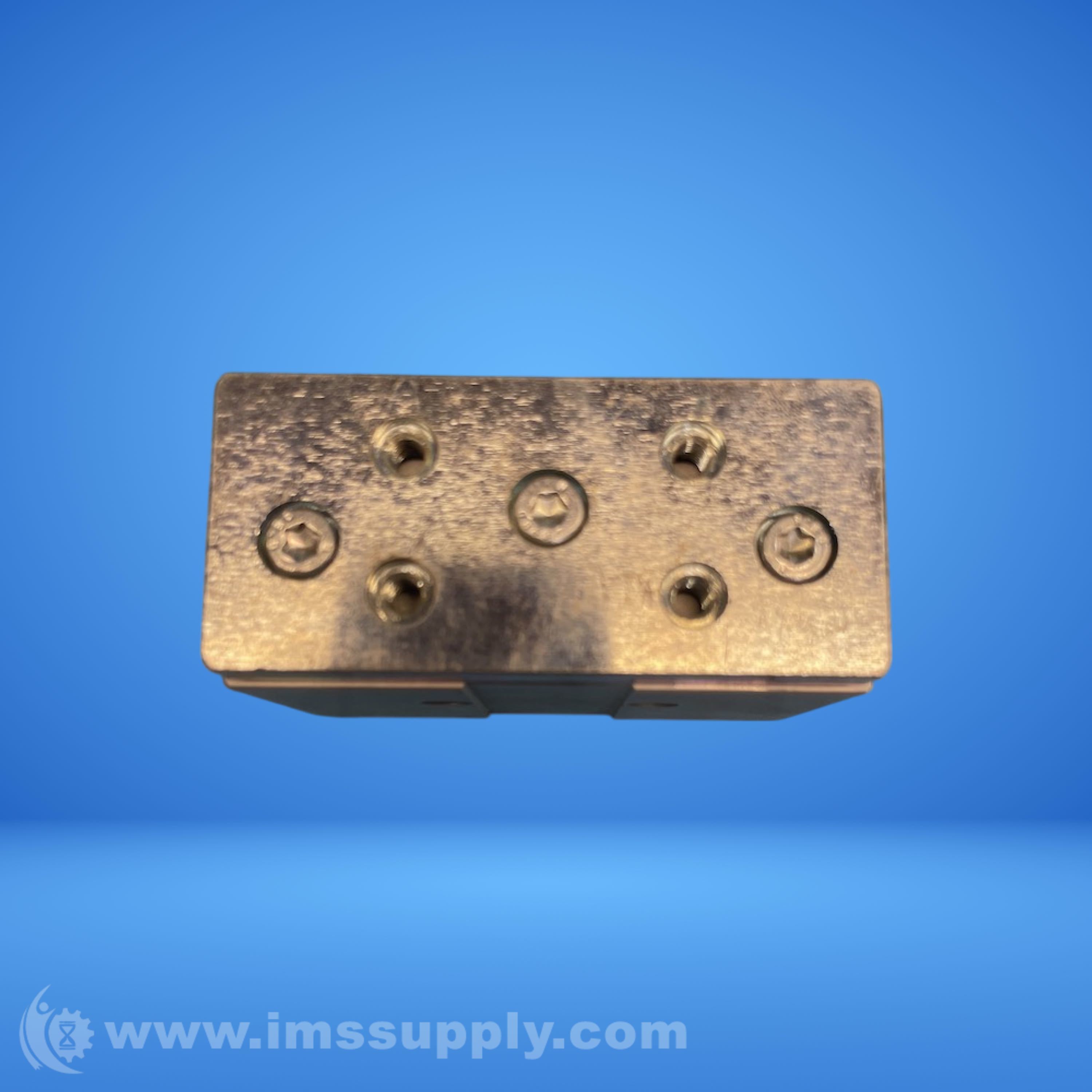

FESTO DFM-25-20-P-A-GF GUIDED DRIVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DFM-25-20-P-A-GF
IMS Product Code: 2128970
Packaging: Sold Individually
Description:
Festo DFM-25-20-P-A-GF Guided Drive
Double-acting guided drive with a 25mm piston diameter and 20mm stroke. Features plain-bearing guide and pneumatic cushioning. Suitable for various mounting positions.
Specifications
- Stroke: 20 mm
- Piston diameter: 25 mm
- Operating mode: Yoke
- Cushioning: Elastic cushioning rings/plates
- Guide type: Plain-bearing guide
- Operating pressure: 0.15 - 10 bar
- Max speed: 0.8 m/s
- Mode of operation: Double-acting
- Operating medium: Compressed air
- Lubrication: Lubricated operation possible
- Corrosion resistance class: 1
- Cleanroom class: ISO 14644-1 Class 7
- Impact energy: 0.3 Nm
- Max force (Fy): 810.7 N
- Max moment (Mx): 27.56 Nm
- Material: Aluminium alloy
- Pneumatic connection: G1/8
- Ambient temperature: -20 to 80 degrees C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 4 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box (Special):
COMES WITH ATTACHMENT MFG: FESTO P/N UNKNOWN
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box (Special):
COMES WITH TWO ATTACHMENTS MFG: FESTO
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
