FESTO EGSL-BS-35-50-8P MINI SLIDE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: EGSL-BS-35-50-8P
IMS Product Code: 2122532
Packaging: Sold Individually
Description:

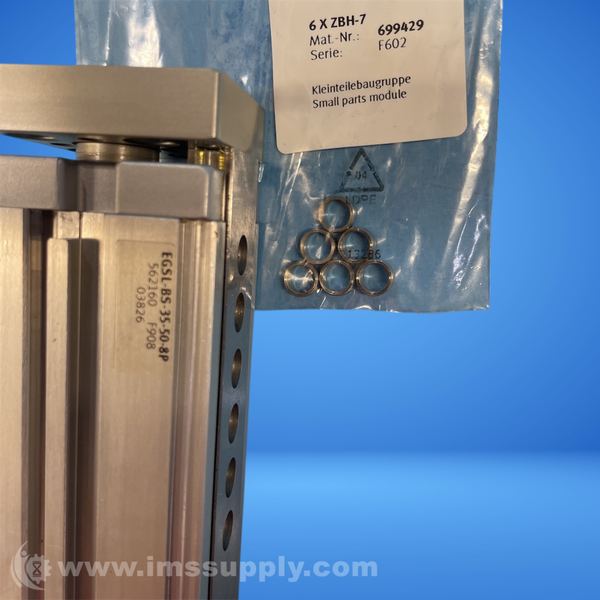

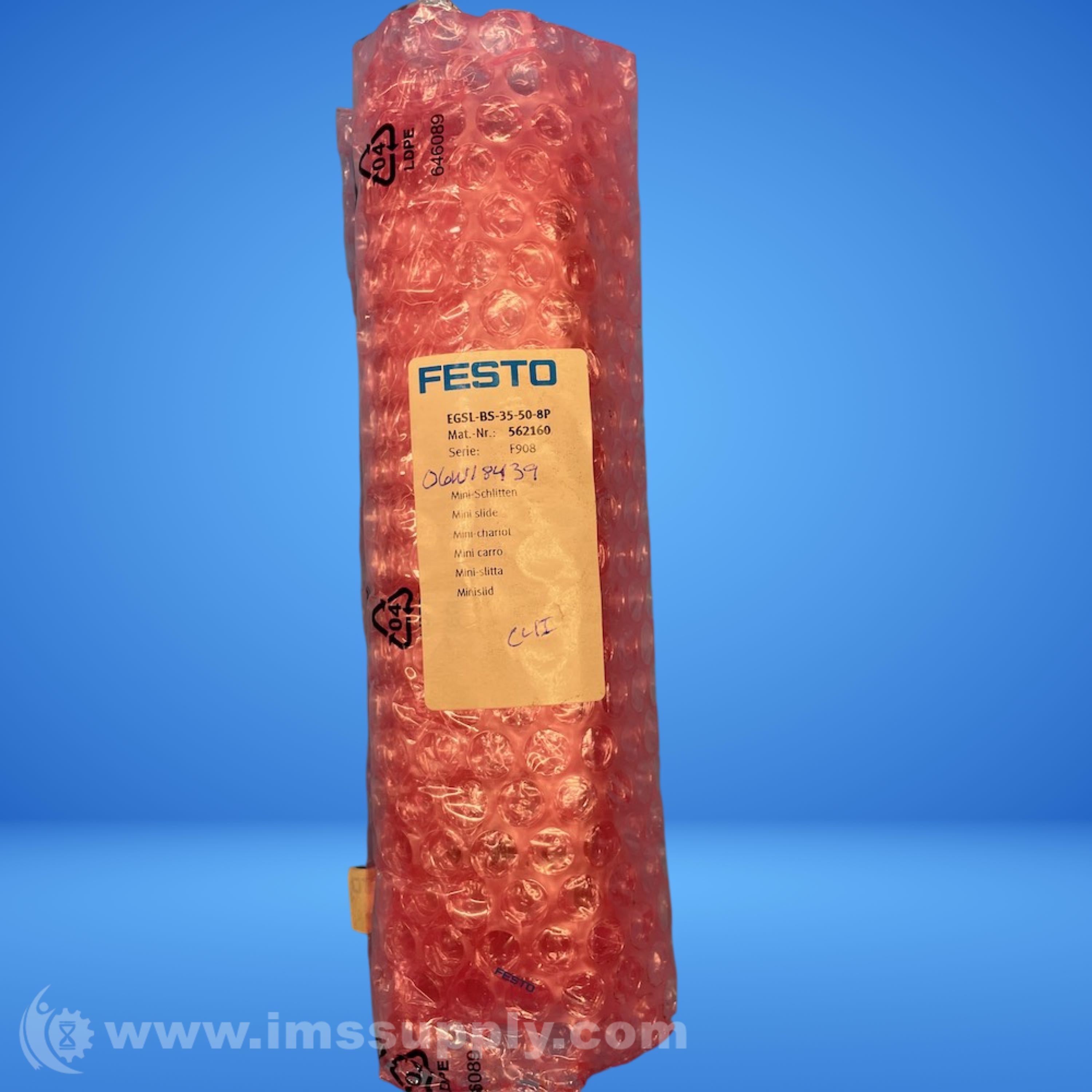

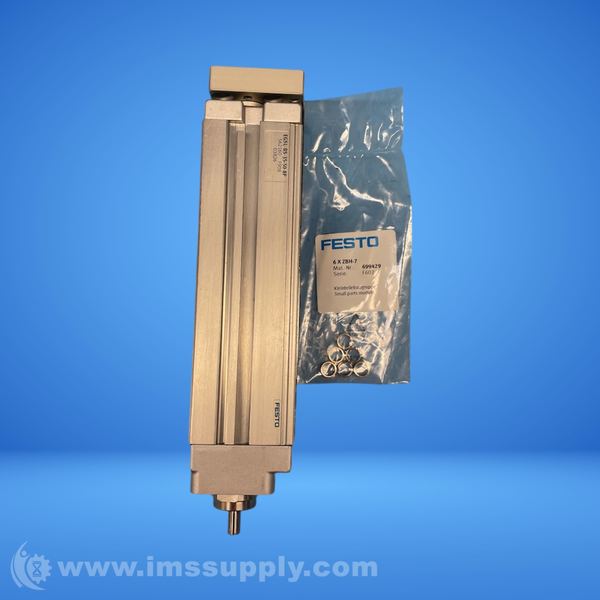

Festo EGSL-BS-35-50-8P Mini Slide
Size 35 electric slide with ball screw drive, 50mm stroke, and 8mm spindle pitch.
Specifications
- Size: 35
- Working Stroke: 50mm
- Spindle Pitch: 8mm
- Guide Type: Ball bearing cage guide
- Drive Type: Ball screw drive
- Max Speed: 0.5m/s
- Max Acceleration: 25m/s2
- Repetition Accuracy: ±0.015mm
- Duty Cycle: 100%
- Degree of Protection: IP40
- Continuous Feed Force: 50N
- Max Drive Torque: 0.127Nm
- Max Force Fy: 512N
- Max Force Fz: 512N
- Max Moment Mx: 6.2Nm
- Max Moment My: 6Nm
- Max Moment Mz: 6Nm
- Max Radial Force: 20N
- Material Cover: Die-cast aluminium
- Material Housing: Wrought aluminium alloy
- Material Spindle: Rolled steel
- Ambient Temperature: 0C to 60C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 14 minutes.
