FESTO HE-G1/2-LO SHUT-OFF VALVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: HE-G1/2-LO
IMS Product Code: 2129559
Packaging: Sold Individually
Description:

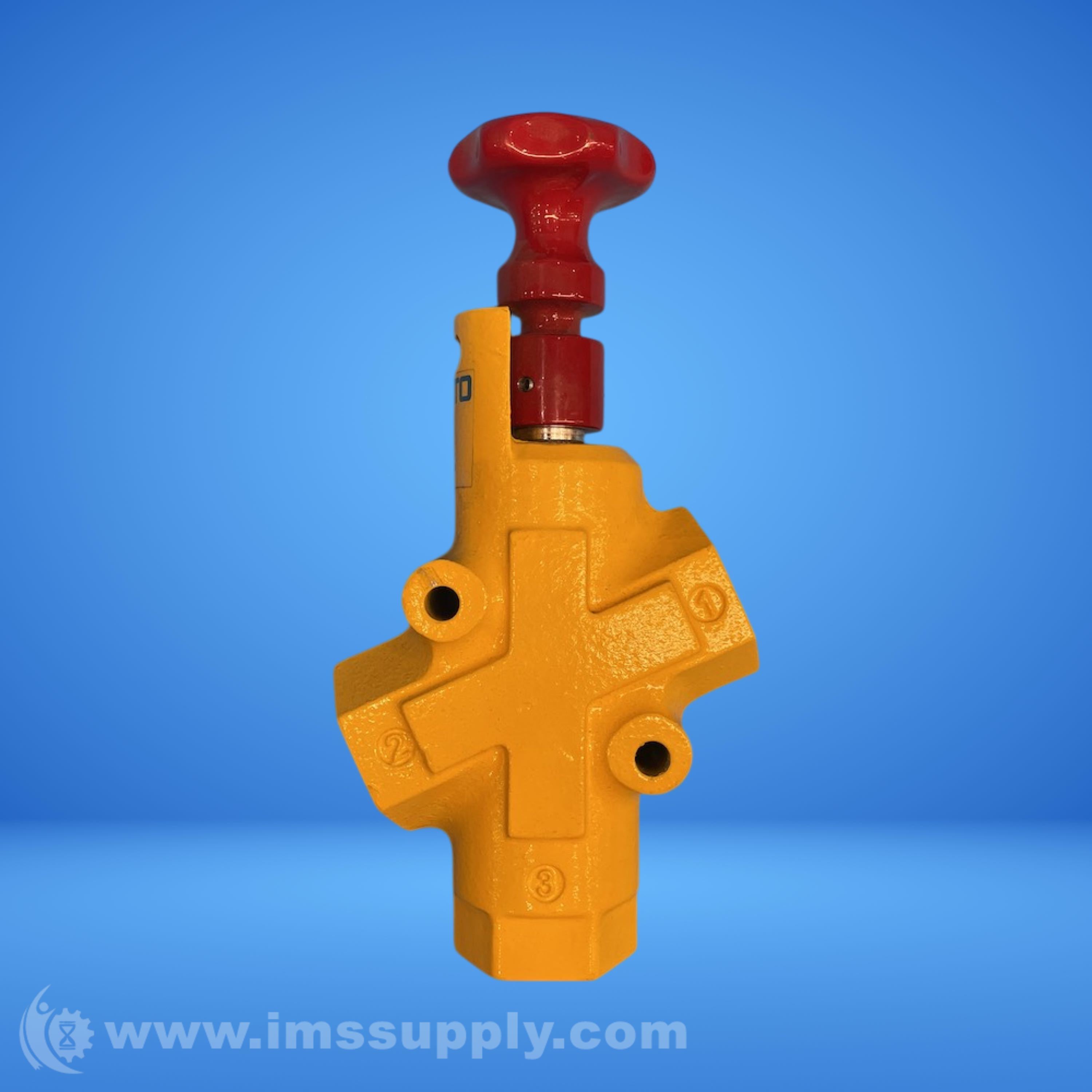

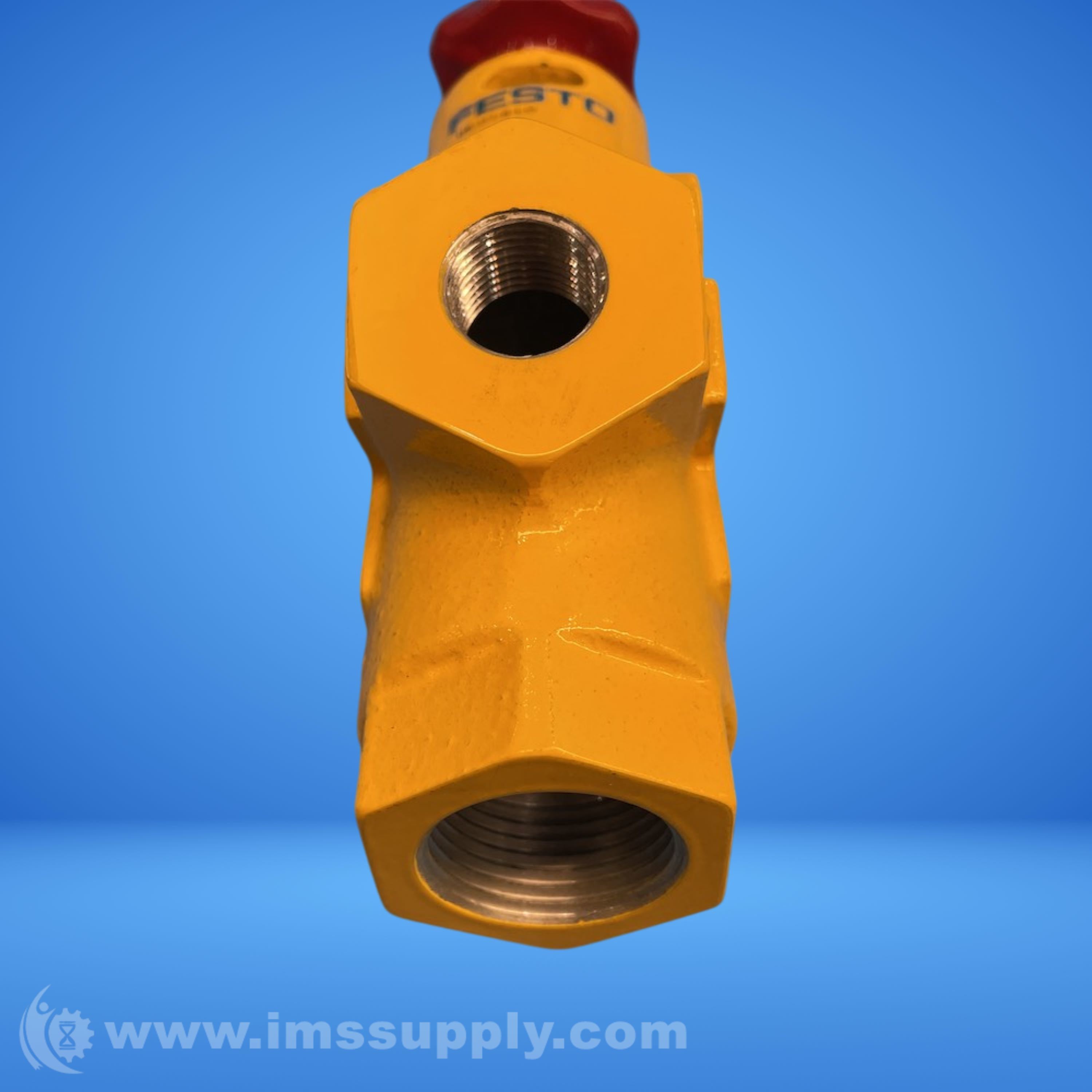

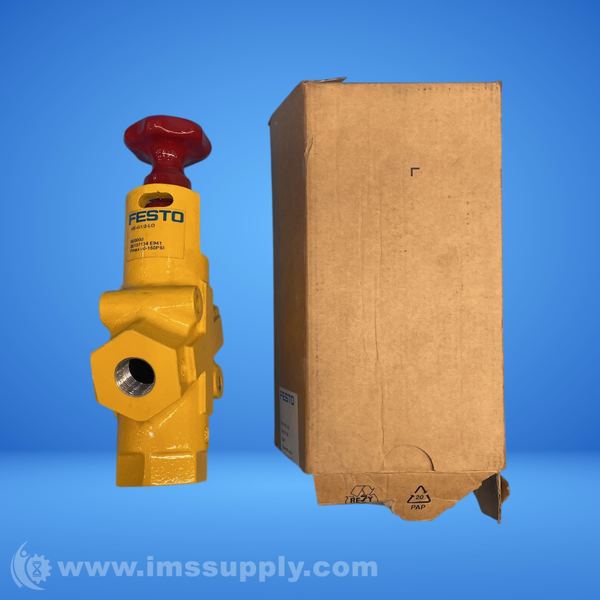

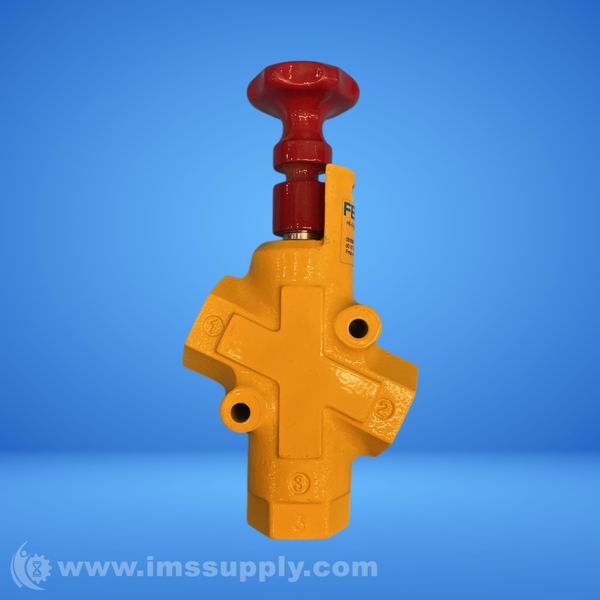

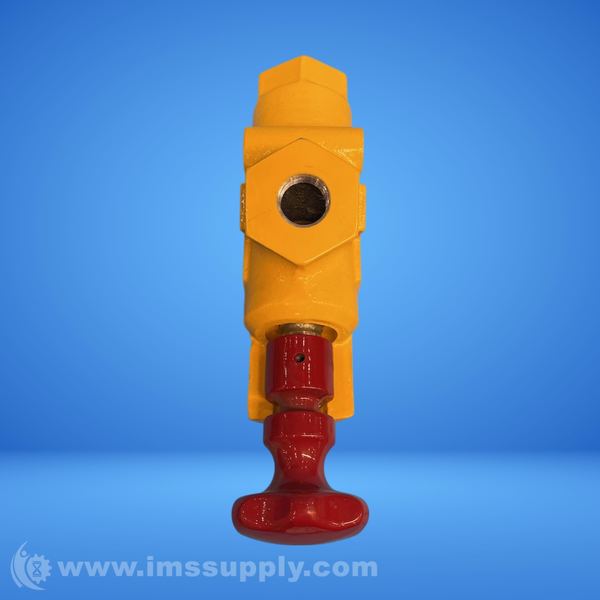

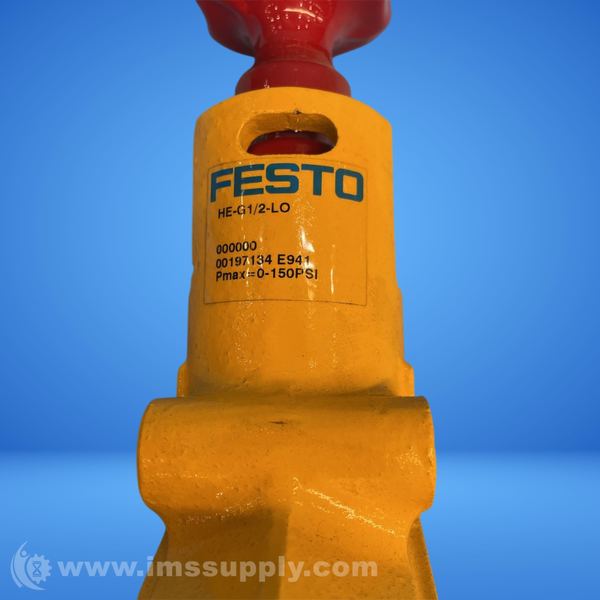

Festo HE-G1/2-LO Shut-Off Valve
Manual shut-off valve with 3/2 bistable function. G1/2 pneumatic connection. Shuts off compressed air supply while exhausting systems.
Specifications
- Design structure: Piston slide
- Type of actuation: Manual
- Sealing principle: Soft
- Exhaust-air function: Not throttleable
- Manual override: None
- Valve function: 3/2 bistable
- Operating pressure: 1 ... 10 bar
- C value: 28.13 l/sbar
- b value: 0.28
- Standard nominal flow rate: 6200 l/min
- Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance classification CRC: 3 - High corrosion stress
- Medium temperature: -10 ... 60 degrees C
- Type of mounting: In-line
- Mounting position: Optional
- Flow direction: Non-reversible
- Product weight: 1100 g
- Material seals: NBR, TPE-U(PU)
- Material housing: Die-cast aluminium, PBT
- Pneumatic connection, port 1: G1/2
- Pneumatic connection, port 2: G1/2
- Pneumatic connection, port 3: G1
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 20 minutes.
